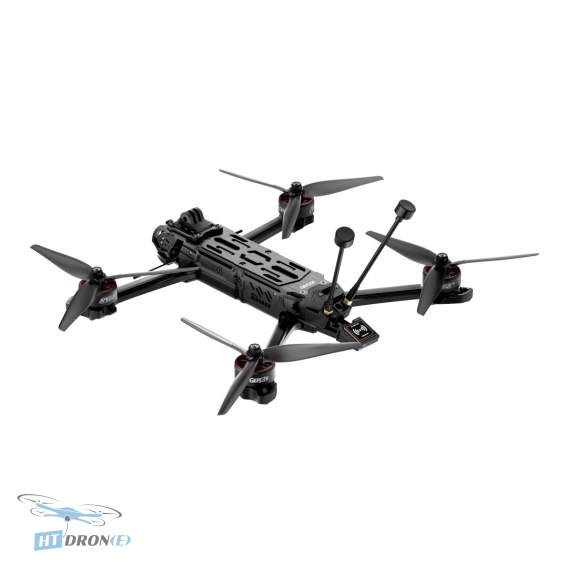

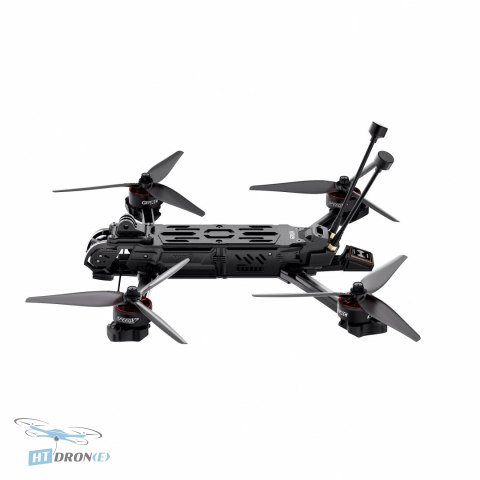

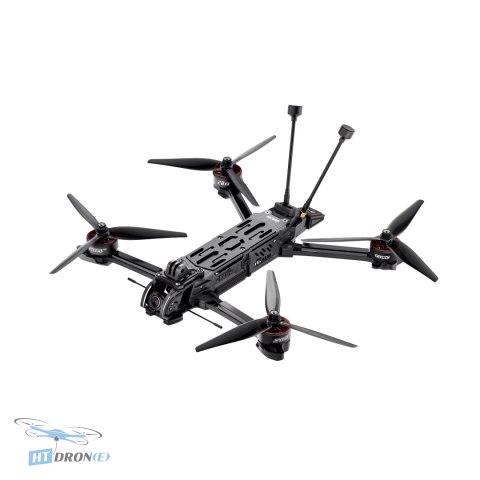

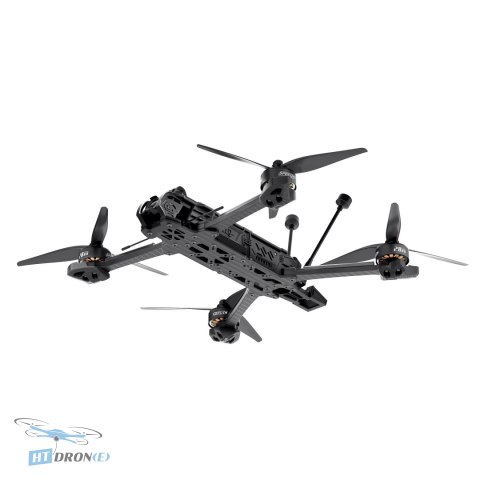

GEPRC MOZ7 RAD 1.6W GPS ELRS 915MHz Long Range FPV Drone

Introduction

The GEPRC MOZ7 is an advanced Long Range FPV drone engineered for pilots who demand exceptional performance and extended flight times. This ready-to-fly (RTF) or bind-and-fly (BNF) model is built for exploring vast distances and capturing breathtaking aerial footage. It integrates cutting-edge components for reliable operation and superior flight control, making it a top choice for serious FPV pilots.

Key Advantages

• Extended Flight Time: Powered by a GEP-VTC6-6000mAh battery, enjoy up to 30 minutes of flight, or 20 minutes with a GoPro 10 onboard.
• Powerful Propulsion: Features robust 2809-1280KV motors paired with HQ7.5*3.7*3 propellers for strong, efficient performance.
• High-Power Video Transmission: Equipped with the GEPRC RAD 5.8G&1.6W VTX for a clear and stable video feed over long distances.
• Reliable Radio Link: Utilizes the ExpressLRS (ELRS) 915MHz receiver for a robust and low-latency control link.
• Precision Navigation: Integrated GEP-M10-DQ GPS module ensures accurate positioning for long-range flights and return-to-home functionality.
• Advanced Flight Controller: Built around the SPAN F722-BT-HD V2 FC with Bluetooth for wireless parameter tuning.
• Durable and Versatile Frame: The GEP-MOZ7 frame offers a robust structure with flexible camera mounting options (19mm/20mm).
• Optimized Antenna Placement: The front receiver antenna placement minimizes signal blockage during flight maneuvers.

Technical Specifications

• Model: MOZ7
• Frame: GEP-MOZ7
• Dimensions: 280mm x 310mm
• Wheelbase: 320mm
• Top Plate: 3.0mm
• Bottom Plate: 3.0mm
• Arm Plate: 6.0mm
• Rail Plate: 3.0mm
• Camera Mount: 2.0mm
• VTX Cover: 1.5mm
• Flight Controller (FC): SPAN F722-HD-BT V2
• MCU: STM32F722
• Gyro: 42688-P (SPI)
• VTX: GEPRC RAD 5.8G & 1.6W
• ESC: GEP-BLheli32-50A
• Propeller: HQ7.5*3.7*3
• Antenna: Momoda 5.8G RP-SMA RHCP 120MM
• Motor: 2809-1280KV (6S version)
• GPS: GEP-M10-DQ
• Camera: Caddx Ratel2
• Weight: 675.5g (without battery)
• Receiver: ELRS 915MHz
• Recommended Battery: VTC6 6S 6000mAh / LiPo 6S 3300mAh

Applications

This drone is perfectly suited for long-range FPV flights, aerial exploration, cinematic FPV, and extended surveillance missions. Its robust design and reliable components make it ideal for pilots looking to push the boundaries of flight distance and duration.

Compatibility

The MOZ7 frame supports a maximum stack installation of 30.5mm x 30.5mm and is compatible with various VTX units and custom cooling systems. The innovative camera mounting allows switching between 19mm and 20mm sizes. The SPAN F722-BT-HD V2 FC supports wireless parameter adjustment via Bluetooth.

FAQ

What is the maximum flight time of the GEPRC MOZ7 drone?

The GEPRC MOZ7 drone can achieve up to 30 minutes of flight time with the recommended GEP-VTC6-6000mAh battery. With a GoPro 10 mounted, expect around 20 minutes of flight.

What radio control system does the GEPRC MOZ7 drone use?

This GEPRC MOZ7 model is equipped with an ELRS 915MHz receiver, offering a reliable and low-latency radio link for extended range control.

Does the GEPRC MOZ7 drone include GPS for navigation?

Yes, the drone features the GEP-M10-DQ GPS module, which is crucial for long-range flights, navigation, and potential return-to-home functions.

What are the key advantages of the GEPRC MOZ7 for long-range FPV?

Key advantages include its powerful 2809 motors, high-power 1.6W VTX for clear video transmission, long flight capability, and integrated GPS for reliable navigation over distance.
