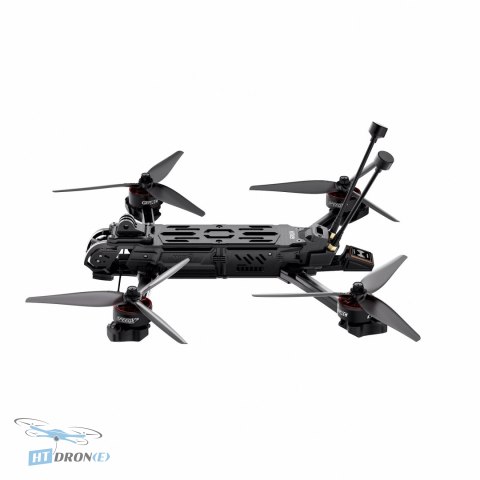

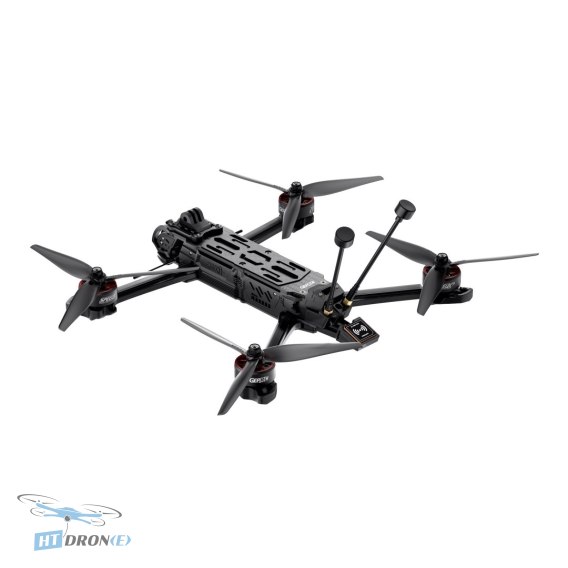

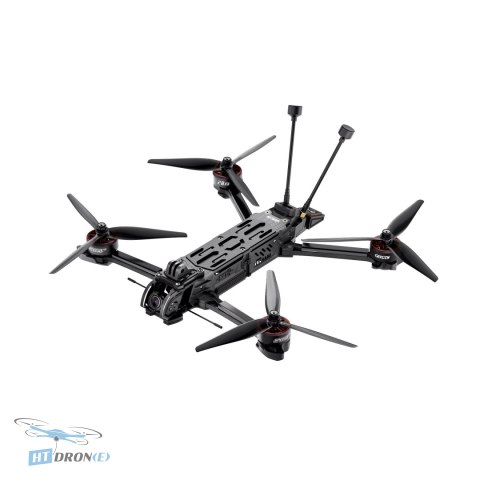

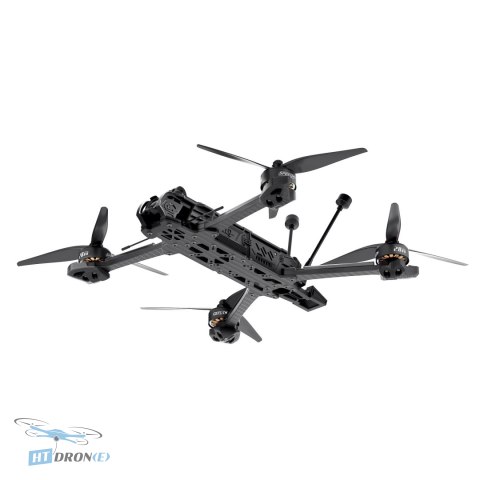

GEPRC MOZ7 RAD1.6W GPS PNP Long Range FPV Drone

Introduction

The GEPRC MOZ7 RAD1.6W GPS PNP is a state-of-the-art FPV drone designed for enthusiasts and professionals seeking superior performance and extended flight capabilities. Part of the Long Range Series, this drone combines robust construction with advanced electronics, making it an excellent choice for long-distance exploration, aerial photography, and demanding FPV missions. It offers a stable and powerful flight experience, ensuring reliability even in challenging conditions.

Key advantages

• Versatile Camera Mounting: Innovative camera mount allows switching between 19mm and 20mm sizes with adjustable aluminum parts.
• Advanced Flight Control: Features the SPAN F722-BT-HD V2 flight controller with Bluetooth for wireless parameter tuning.
• Powerful Propulsion: Equipped with robust 2809-1280KV motors and HQ7.5*3.7*3 propellers for exceptional thrust.
• Integrated GPS: Includes GEP-M10-DQ GPS module for precise navigation and secure long-range flights.
• Extended Flight Time: Capable of up to 30 minutes of flight with the GEP-VTC6-6000mAh battery or 20 minutes with a GoPro 10 onboard.
• High-Power VTX: Utilizes the GEPRC RAD 5.8G 1.6W VTX for a strong, stable video signal.
• Optimized Receiver Antenna Placement: Front-mounted receiver antenna prevents signal blockage during flight maneuvers.
• Durable Frame Design: Robust frame construction with 3.0mm top/bottom plates, 6.0mm arm plates, and 3.0mm rail plates.

Technical specifications

• Model: MOZ7
• Frame: GEP-MOZ7
• Dimensions: 280mm x 310mm
• Wheelbase: 320mm
• Top Plate: 3.0mm
• Bottom Plate: 3.0mm
• Arm Plate: 6.0mm
• Rail Plate: 3.0mm
• Camera Mount: 2.0mm
• VTX Guard: 1.5mm
• FC: SPAN F722-HD-BT V2
• MCU: STM32F722
• Gyro: 42688-P (SPI)
• VTX: GEPRC RAD 5.8G & 1.6W
• ESC: GEP-BLheli32-50A
• Propeller: HQ7.5*3.7*3
• Antenna: Momoda 5.8G RP-SMA RHCP 120MM
• Motor: 2809-1280KV (6S version)
• GPS: GEP-M10
• Camera: Caddx Ratel2
• Weight: 675.5g
• Receiver: PNP
• Recommended Battery: VTC6 6S 6000mAh / LiPo 6S 3300mAh

Applications

This FPV drone is perfectly suited for long-range exploration flights, advanced aerial cinematography, FPV racing with a focus on endurance, and complex UAV missions requiring stable flight control and reliable navigation. Its robust design and extended flight time make it ideal for capturing breathtaking aerial footage over vast distances.

Compatibility

The MOZ7 supports a maximum 30.5mm x 30.5mm stack installation and is compatible with various VTXs and custom cooling systems. The camera mount is adjustable for 19mm and 20mm cameras. It is designed to work with 6S batteries, with recommended options including the GEP-VTC6-6000mAh or LiPo 6S 3300mAh.

FAQ

What is the maximum flight time of the GEPRC MOZ7 RAD1.6W GPS PNP drone?

The GEPRC MOZ7 drone can achieve up to 30 minutes of flight time when using the recommended GEP-VTC6-6000mAh battery. With a GoPro 10 onboard, expect around 20 minutes of flight.

What makes the GEPRC MOZ7 suitable for long-range flights?

It is equipped with a GEP-M10-DQ GPS module for precise navigation and a powerful GEPRC RAD 5.8G 1.6W VTX for a reliable video signal over long distances. The efficient motors and high-capacity battery further enhance its long-range capabilities.

Can I wirelessly adjust the parameters on the GEPRC MOZ7?

Yes, the drone features the SPAN F722-BT-HD V2 flight controller which supports wireless parameter adjustment via Bluetooth, allowing for convenient tuning without connecting to a computer.

What flight controller and ESC does the GEPRC MOZ7 use?

The GEPRC MOZ7 utilizes the SPAN F722-HD-BT V2 flight controller with an STM32F722 MCU and a Gyro 42688-P. For the Electronic Speed Controller, it comes with the GEP-BLheli32-50A.

Where can I buy the GEPRC MOZ7 RAD1.6W GPS PNP drone with fast delivery?

You can buy the GEPRC MOZ7 RAD1.6W GPS PNP drone at HTDRONE. We offer fast shipping within Poland and reliable worldwide delivery via DHL for international orders.
