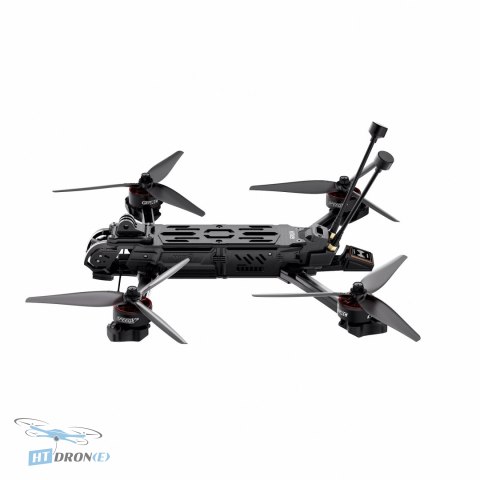

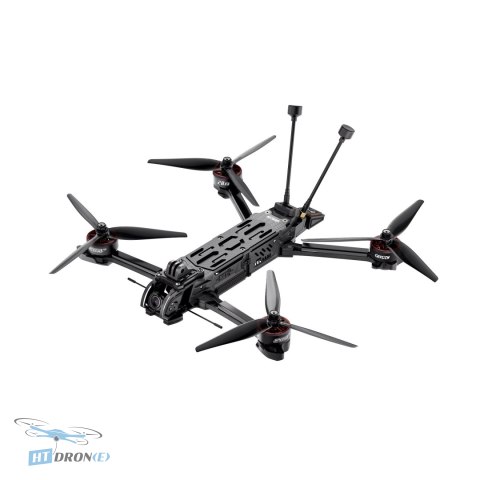

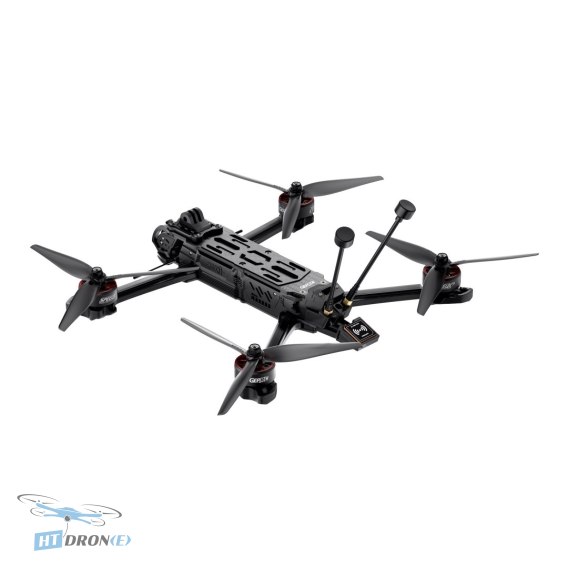

GEPRC MOZ7 Wasp GPS ELRS 2.4G Long Range FPV Drone

Introduction

The GEPRC MOZ7 Wasp is an advanced FPV drone engineered for long-range flights and demanding aerial missions. Designed for pilots who require stable, extended flight times and precise control, the MOZ7 Wasp combines robust construction with cutting-edge technology. It's ideal for aerial photography, long-distance FPV exploration, and pilots looking to push the boundaries of flight endurance. Buy the best FPV drones at HTDRONE.

Key Advantages

• Extended Flight Endurance: Achieve up to 30 minutes of flight time with the recommended GEP-VTC6-6000mAh battery, or 20 minutes with a GoPro 10.
• Powerful Propulsion: Equipped with 2809-1280KV motors and HQ7.5*3.7*3 propellers for strong and efficient performance.
• Reliable Control: Features ELRS 2.4G receiver for stable, long-range radio control.
• Integrated GPS: Built-in GEP-M10-DQ GPS module enhances navigation and flight safety for long-distance journeys.
• Versatile Camera Mounting: Innovative camera mount system allows easy switching between 19mm and 20mm camera sizes, reinforced with carbon plates to prevent deformation.
• Bluetooth Parameter Adjustment: Utilizes the SPAN F722-BT-HD V2 flight controller with Bluetooth for wireless configuration.
• Durable Construction: Robust frame design with 6.0mm arm plates ensures resilience during demanding flights.
• Optimized Antenna Placement: Front receiver antenna placement minimizes signal obstruction during aerial maneuvers.

Technical Specifications

• Model: MOZ7
• Frame: GEP-MOZ7
• Dimensions: 280mm×310mm
• Wheelbase: 320mm
• Top Plate: 3.0mm
• Bottom Plate: 3.0mm
• Arm Plate: 6.0mm
• Girders Plate: 3.0mm
• Camera Mount: 2.0mm
• VTX Guard: 1.5mm
• FC: SPAN F722-HD-BT V2
• MCU: STM32F722
• Gyro: 42688-P (SPI)
• VTX: Runcam Link Wasp
• ESC: GEP-BLheli32-50A
• Propeller: HQ7.5*3.7*3
• Antenna: Momoda 5.8G RP-SMA LHCP 120MM
• Motor: 2809-1280KV (6S version)
• GPS: GEP-M10
• Camera: Runcam Wasp Camera 120FPS
• Weight: 638.5g
• Receiver: ELRS 2.4G
• Recommended Battery: VTC6 6S 6000mAh / LiPo 6s 3300mAh

Applications

This drone is purpose-built for long-range FPV flights, aerial exploration, high-end FPV racing, and professional aerial cinematography where extended flight time and reliable control are paramount. It's also suitable for advanced hobbyists and pilots seeking a robust platform for custom modifications and demanding flight challenges.

Compatibility

The MOZ7 frame supports a maximum 30.5mm x 30.5mm stack installation and is compatible with various VTX and custom cooling systems. The camera mounting system is adaptable for 19mm and 20mm camera sizes. Compatible with GEP-VTC6-6000mAh batteries or LiPo 6s 3300mAh batteries.

FAQ

What is the maximum flight time of the GEPRC MOZ7 Wasp drone?

The GEPRC MOZ7 Wasp drone can fly for up to 30 minutes with the recommended GEP-VTC6-6000mAh battery, or approximately 20 minutes when carrying a GoPro 10 camera.

What control system does the GEPRC MOZ7 Wasp use?

This FPV drone is equipped with an ELRS 2.4G receiver, providing reliable and stable long-range radio control for enhanced flight experience.

Can I adjust the drone's parameters wirelessly?

Yes, the GEPRC MOZ7 Wasp features a SPAN F722-BT-HD V2 flight controller that supports wireless parameter adjustment via Bluetooth, offering convenient configuration.

What are the main applications for the GEPRC MOZ7 Wasp drone?

The GEPRC MOZ7 Wasp is primarily designed for long-range FPV flights, aerial exploration, and advanced FPV racing due to its extended flight capabilities and robust performance.

Where can I buy the GEPRC MOZ7 Wasp drone with fast delivery?

You can buy the GEPRC MOZ7 Wasp drone at HTDRONE. We offer fast shipping within Poland and reliable worldwide delivery via DHL, ensuring you receive your order promptly.
