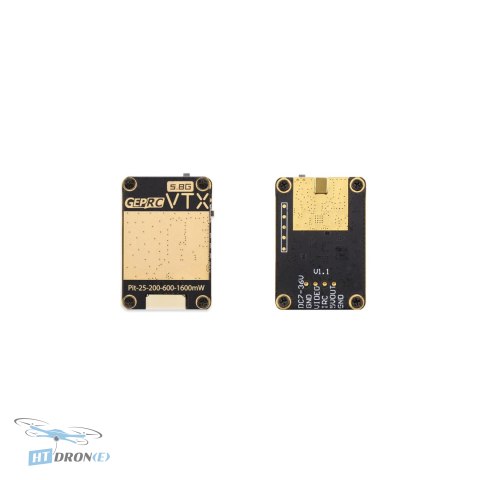

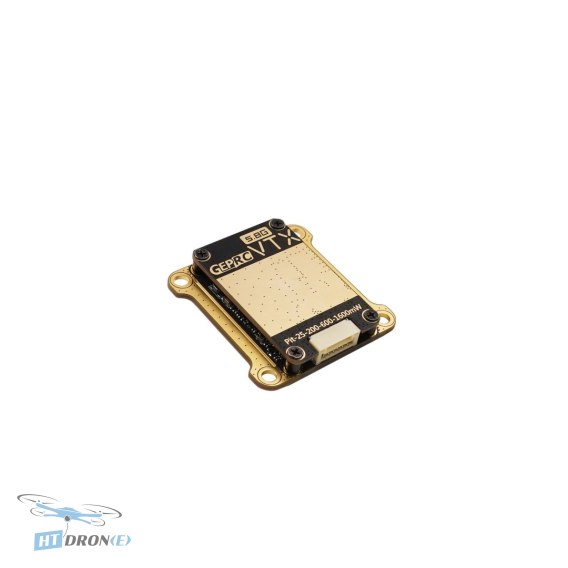

GEPRC RAD 5.8G 1.6W VTX - High Power FPV Video Transmitter

Introduction

The GEPRC RAD VTX 5.8G 1.6W is a top-tier video transmitter designed for FPV enthusiasts seeking maximum power and reliability. Engineered by GEPRC, this VTX offers an impressive 1600mW output, making it ideal for long-range exploration, competitive racing, and demanding FPV applications where signal integrity is paramount. Its advanced dual-layer PCB design and robust features ensure superior performance and durability.

Key advantages

• Super powerful 1600mW output for extended range and stable video links.
• Five adjustable power levels: PIT mode, 25mW, 200mW, 600mW, and 1600mW for flexible operation.

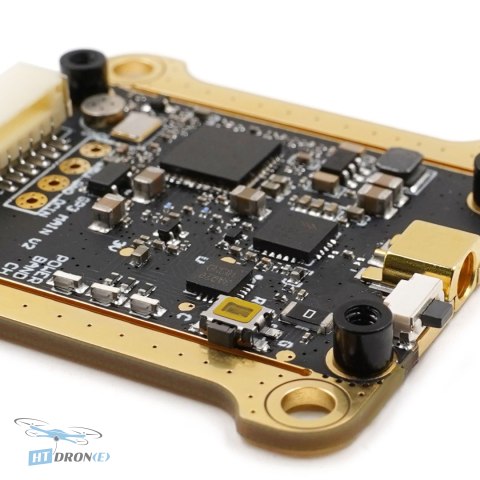

• Dual-layer PCB construction enhances heat dissipation and shields against internal interference.
• Integrated microphone for real-time audio transmission from your drone.
• Wide input voltage range (7-36V, 2S-8S LiPo) for broad compatibility.
• Supports IRC Tramp protocol for easy OSD parameter adjustment.
• Built-in overheat protection prevents damage during high-temperature operation.
• Multiple regional frequency tables (Universal, FCC, EU) to meet diverse user needs.

Technical specifications

• Model: GEPRC RAD VTX 5.8G 1.6W
• Input Voltage: DC 7-36V (2S-8S LiPo battery)
• 5V Output: 600mA (for camera/cooling fan)
• Input Impedance: 75Ω
• Control Protocol: IRC Tramp
• Antenna Connector: MMCX

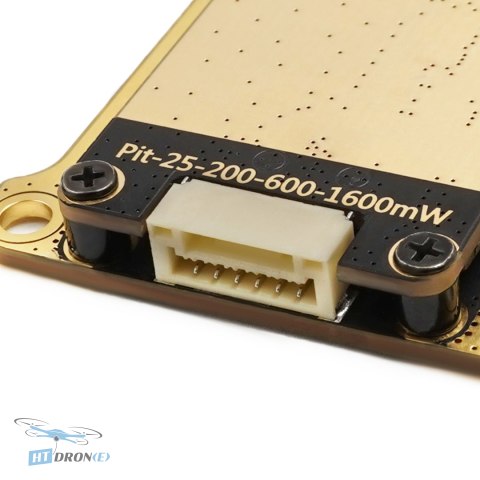

• Output Power: PIT mode / 25mW / 200mW / 600mW / 1600mW
• Frequency Tables: Universal (40CH), FCC (37CH), EU (26CH)
• Video Format: PAL / NTSC
• Microphone: Built-in
• Dimensions: 36×36.5×5.5mm
• Weight: 9.7g (without cable)
• Mounting Hole: 30.5mm x 30.5mm (M3)

Applications

This high-power VTX is perfect for long-range FPV flying, competitive drone racing, freestyle FPV, aerial photography, and any application requiring a robust and clear video signal over extended distances. Its stability and power output make it suitable for challenging flight environments.

Compatibility

The GEPRC RAD VTX 5.8G 1.6W is compatible with a wide range of FPV setups due to its 7-36V input voltage range (2S-8S LiPo). It features a standard 30.5x30.5mm mounting pattern, MMCX antenna connector, and IRC Tramp protocol for seamless integration with most flight controllers and OSD systems. The 5V output is specifically designed for powering FPV cameras or cooling fans.

FAQ

What is the maximum power output of the GEPRC RAD 5.8G 1.6W VTX?

The GEPRC RAD 5.8G 1.6W VTX offers a maximum power output of 1600mW (1.6W). It also features five adjustable power levels: PIT mode, 25mW, 200mW, 600mW, and 1600mW, allowing you to select the optimal power for your flight conditions.

Can I use the GEPRC RAD 5.8G 1.6W VTX for long-range FPV flights?

Yes, the GEPRC RAD 5.8G 1.6W VTX is specifically designed for long-range FPV flights due to its super high 1600mW power output and stable signal transmission. It ensures a reliable video link even at greater distances.

What is the input voltage range for the GEPRC RAD 5.8G 1.6W VTX?

This VTX supports a wide input voltage range of DC 7-36V, which corresponds to a 2S to 8S LiPo battery. This broad compatibility ensures it can be used with a variety of FPV drone setups.

Does the GEPRC RAD 5.8G 1.6W VTX include a microphone?

Yes, the GEPRC RAD 5.8G 1.6W VTX features a built-in microphone. This allows for real-time audio transmission from your drone, enhancing your FPV experience.
