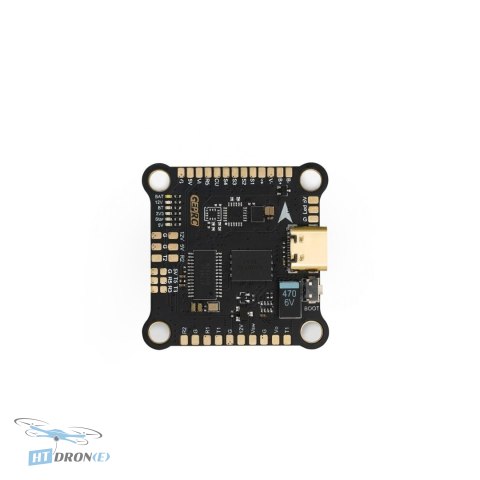

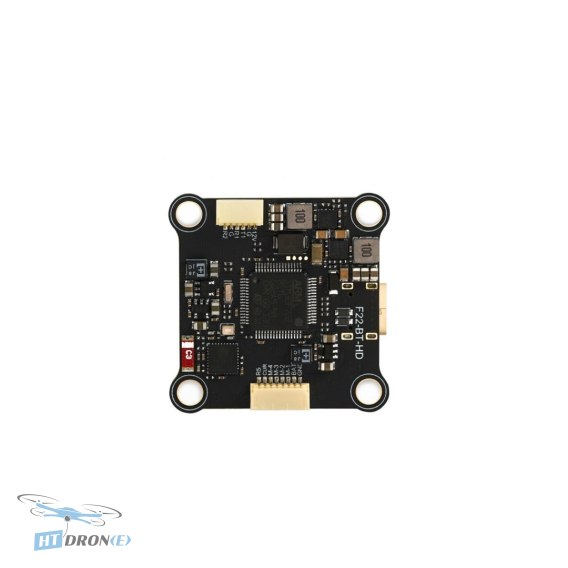

GEPRC SPAN-F722-BT-HD V2 Flight Controller for DJI Air Unit

Introduction

The GEPRC SPAN-F722-BT-HD V2 Flight Controller is engineered for the modern FPV pilot, specifically designed for effortless integration with the DJI Air Unit. This advanced FC eliminates the need for complex soldering, providing a direct connection for a cleaner and more reliable build. It's the perfect choice for drone enthusiasts seeking top-tier performance and stability in their custom FPV rigs.

Key Advantages

• Direct DJI Air Unit compatibility for plug-and-play setup.
• Reinforced USB Type-C connector for enhanced durability and secure connection.
• Powerful STM32F722RET6 MCU for superior processing power.
• Integrated 512MB Black Box for flight data logging.
• On-board BetaFlight OSD with AT7456E chip for real-time flight information.
• Multiple UART ports (5) for extensive peripheral connectivity.
• High input voltage support (3-6S LiPo).
• Built-in LC filter for cleaner power delivery.

Technical Specifications

• Model: SPAN F722-BT-HD v2 Flight Controller
• MCU: STM32F722RET6
• IMU: ICM42688-P (SPI)
• Black Box: 512MB on SD card
• USB Connector: Type-C
• OSD: BetaFlight OSD with AT7456E chip
• BEC Output: 5V 3A / 12V 3A
• Integrated Filtering: LC filter
• Firmware: GEPRCF722-BT-HD
• Mounting Size: 36x36mm, with 4mm mounting holes (3mm with silicone grommets)
• Input Voltage: 3-6S LiPo
• UART Ports: 5

Applications

This flight controller is ideal for building high-performance FPV drones, including freestyle quads, racing drones, and cinematic FPV setups that utilize the DJI digital FPV system. Its robust features make it suitable for demanding flight conditions and advanced piloting.

Compatibility

Designed for direct connection with the DJI Air Unit. Compatible with 32-bit BLheli_32 50A 96K 4-in-1 ESCs. Supports 3-6S LiPo batteries. Features 5 UART ports for additional accessories.

FAQ

What is the GEPRC SPAN-F722-BT-HD V2 Flight Controller primarily designed for?

The GEPRC SPAN-F722-BT-HD V2 Flight Controller is designed for seamless integration with the DJI Air Unit, allowing for direct connection without soldering. It's ideal for FPV drone builds requiring high performance and reliability.

What MCU does the GEPRC SPAN-F722-BT-HD V2 use?

This flight controller is equipped with the powerful STM32F722RET6 MCU, providing excellent processing capabilities for advanced flight control and stabilization.

Does the SPAN-F722-BT-HD V2 have a Black Box feature?

Yes, the GEPRC SPAN-F722-BT-HD V2 includes a 512MB Black Box on an SD card, allowing you to log critical flight data for analysis and tuning.

What are the power input requirements for this flight controller?

The GEPRC SPAN-F722-BT-HD V2 Flight Controller supports a wide input voltage range, specifically LiPo batteries from 3S to 6S, offering flexibility for various power setups.
