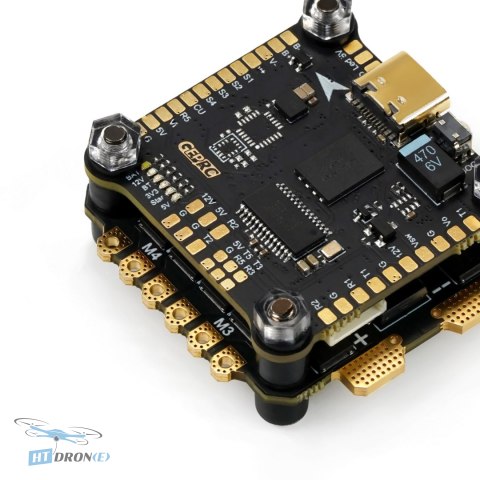

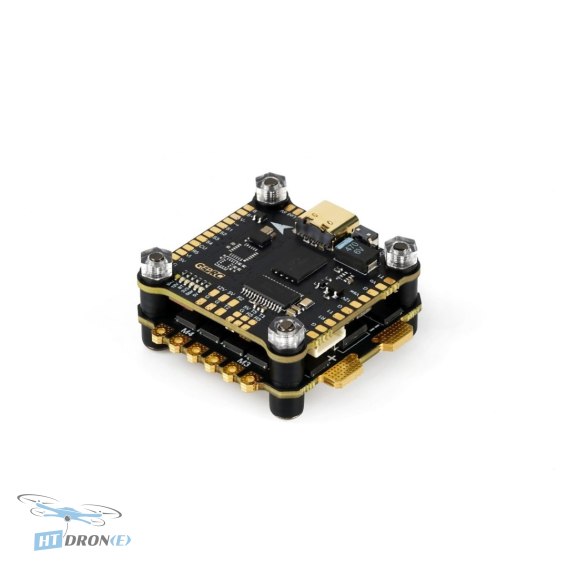

GEPRC SPAN F722-BT-HD V2 Stack for DJI Air Unit - F7 Flight Controller & 50A ESC

Introduction

The GEPRC SPAN F722-BT-HD V2 Stack is a premium flight control and ESC system engineered specifically for seamless integration with the DJI Air Unit. This advanced stack is designed for FPV enthusiasts and professional drone builders who demand top-tier performance, stability, and convenience. It simplifies the building process with its plug-and-play design, eliminating the need for extensive soldering, and offers sophisticated features like Bluetooth tuning for optimal flight characteristics.

Key advantages

• Plug-and-Play DJI Air Unit Integration: Connects directly without soldering, simplifying installation.
• High-Performance Flight Control: Features the powerful STM32F722RET6 MCU for precise flight control.
• Advanced ESC: Includes a 32-bit BLHeli_32 50A 4-in-1 ESC with 96KHz support for smooth and efficient power delivery.
• Integrated Data Logging: Comes with a 512MB built-in SD card for flight data recording.
• Convenient Bluetooth Tuning: Allows for easy parameter adjustments directly from your device.
• Stable Gyro: Utilizes the MPU42688-P gyroscope for enhanced flight stability.
• Durable USB-C Connector: Features an upgraded USB Type-C port for improved longevity and reliability.
• Clean Power Delivery: Integrated LC filtering ensures a stable power supply to components.

Technical specifications

• Flight Controller SPAN F722-BT-HD v2:
• MCU: STM32F722RET6
• IMU: 42688-P (SPI)
• Built-in SD Card: 512MB
• USB Connector: Type-C
• OSD: BetaFlight OSD with AT7456E chip
• BEC Output: 5V 3A / 12V 3A
• Integrated Filtering: LC Filter
• Firmware: GEPRCF722-BT-HD
• Mounting: 36x36mm, 4mm holes (3mm with silicone grommets)
• Input Voltage: LiPo 3-6S
• UARTs: 5
• BL32 50A 96K 4IN1 ESC:
• MCU: SMT32G071 (32bit 96K Hz)
• Continuous Current: 50A
• Peak Current: 55A (5 seconds)
• Current Sensing: Galvanometer supported
• Telemetry: Supported
• Supported Protocols: DSHOT600, PWM, Multishot, OneShot
• Firmware: GEPRC_G071_4IN1_96K
• Input Voltage: 3-6S Lipo

Applications

This stack is perfect for building high-performance FPV racing drones, freestyle quads, and professional aerial platforms that utilize the DJI Digital FPV System. Its robust features make it suitable for demanding flight conditions and competitive FPV events.

Compatibility

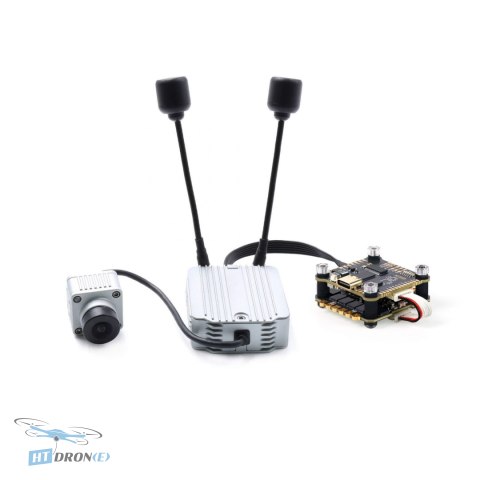

The GEPRC SPAN F722-BT-HD V2 Stack is designed for direct compatibility with the DJI Air Unit. It supports various receiver protocols including Sbus, PPM, CRSF, DSMX, and iBus. The mounting pattern is standard 36x36mm, compatible with most FPV drone frames. It accepts LiPo batteries from 3S to 6S.

FAQ

What is the GEPRC SPAN F722-BT-HD V2 Stack and who is it for?

The GEPRC SPAN F722-BT-HD V2 Stack is an integrated flight controller and ESC system designed for FPV drones, specifically for seamless integration with the DJI Air Unit. It's ideal for experienced FPV pilots and builders seeking a high-performance, reliable, and easy-to-install solution for their digital FPV builds.

What are the key advantages of the SPAN F722-BT-HD V2 Stack?

Key advantages include its plug-and-play compatibility with the DJI Air Unit, a powerful F7 flight controller, a 50A 4-in-1 BLHeli_32 ESC with 96KHz support, built-in 512MB SD card for data logging, and convenient on-the-fly parameter tuning via Bluetooth.

What technical specifications does the GEPRC SPAN F722-BT-HD V2 Stack offer?

It features an STM32F722RET6 MCU, MPU42688-P gyro, 512MB SD card, USB-C, BetaFlight OSD, and 5 UARTs on the flight controller. The ESC is a 50A 4-in-1 BLHeli_32 unit supporting 96KHz refresh rate and telemetry, compatible with 3-6S LiPo batteries.

What receivers are compatible with this FPV stack?

The GEPRC SPAN F722-BT-HD V2 Stack supports a wide range of receiver protocols, including Sbus, PPM, CRSF, DSMX, and iBus, ensuring compatibility with most popular remote controllers.
