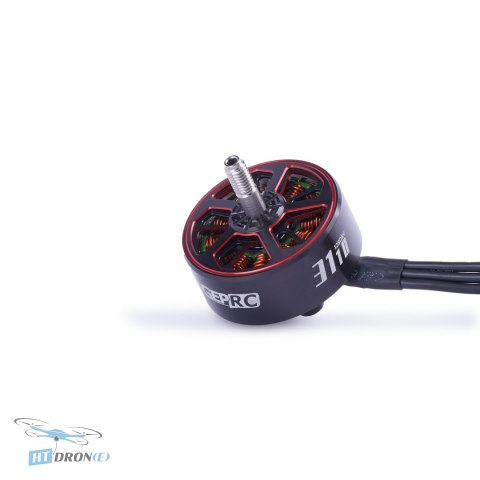

GEPRC SPEEDX2 3110 1250KV FPV Drone Motor for Long Range & X8 Models

Introduction

The GEPRC SPEEDX2 3110 motor represents the cutting edge in FPV drone propulsion, combining advanced design with a striking aesthetic. This 1250KV variant is specifically tuned for high performance and efficiency, making it a top choice for pilots seeking superior power and flight duration. Whether you're building a long-range explorer or a powerful cinematic rig, the SPEEDX2 series delivers reliable, top-tier performance.

Key Advantages

• High Efficiency: Features an advanced magnetic circuit design, providing up to 10% greater energy efficiency than comparable motors in its class.
• Durable Finish: The motor's surface is treated with a unique CD texture, offering excellent scratch resistance and maintaining its premium look over time.
• Premium Materials: Constructed from precision CNC-machined 7075 aircraft-grade aluminum alloy for exceptional strength and durability.
• Optimized Performance: The 1250KV rating is ideal for efficient flight on 6S LiPo batteries, balancing power and endurance.
• Robust Construction: Built to withstand the rigors of FPV flight with high-quality components and assembly.
• Stylish Aesthetics: Features a sleek black finish with red accents, adding a professional look to your build.

Technical Specifications

• Model: SPEEDX2 3110-1250KV
• KV Rating: 1250KV
• Configuration: 12N14P
• Magnets: N52H ARC
• Rotor Material: 7075-T6 Aircraft Aluminum Alloy
• Stator Diameter: 31 mm
• Stator Height: 10 mm
• Output Shaft Diameter: 5 mm
• Dimensions: 39.58mm x 37.85mm
• Wire Specification: 18AWG 270mm
• Rated Voltage: 25.2V LiPo 6S
• Max Power: 1697.87W
• Max Current: 75.26A
• Mounting Pattern: 19x19mm (M3)
• Color: Black with Red Accents
• Weight: 79.3 g (including wire)

Applications

This motor is perfectly suited for building and upgrading high-performance FPV drones. It excels in applications requiring significant power and efficiency, such as 7-inch to 10-inch long-range FPV drones, freestyle quads, and 7-inch X8 configurations. It's also a great choice for aerial photography and cinematic FPV setups where smooth, reliable power delivery is crucial.

Compatibility

The GEPRC SPEEDX2 3110 1250KV motor is designed for compatibility with 7-10 inch FPV drone frames and 7-inch X8 models. It utilizes a standard 19x19mm M3 mounting pattern and is rated for 6S LiPo batteries (25.2V), making it compatible with a wide range of FPV flight controllers and ESCs.

FAQ

What is the best application for the GEPRC SPEEDX2 3110 1250KV motor?

The GEPRC SPEEDX2 3110 1250KV motor is best suited for 7-inch to 10-inch long-range FPV drones and 7-inch X8 models. Its high efficiency and power output make it ideal for extended flight times and demanding aerial tasks.

What makes the GEPRC SPEEDX2 3110 motor efficient?

This motor features a highly efficient magnetic circuit design that results in approximately 10% greater energy savings compared to other motors in its class. This translates to longer flight durations for your FPV drone.

What voltage and battery configuration is recommended for the GEPRC SPEEDX2 3110 1250KV motor?

The motor is rated for a nominal voltage of 25.2V, which corresponds to a 6S LiPo battery configuration. Using a 6S LiPo battery will allow you to achieve optimal performance and power output from this motor.

Where can I buy the GEPRC SPEEDX2 3110 1250KV motor with fast delivery?

You can buy the GEPRC SPEEDX2 3110 1250KV motor at HTDRONE. We offer fast and reliable shipping, including to Ukraine via Nova Poshta and worldwide via DHL. Check our store for the best deals and order yours today!

What is the durability and build quality of this GEPRC motor?

The GEPRC SPEEDX2 3110 motor is built with durability in mind, featuring a precision CNC-machined body made from 7075 aircraft-grade aluminum alloy. Its surface has a unique CD texture finish that provides excellent scratch resistance, ensuring it maintains its appearance and integrity during flight.
