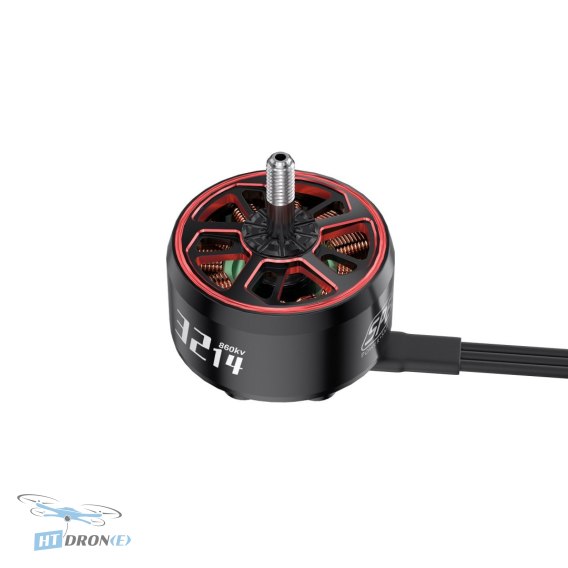

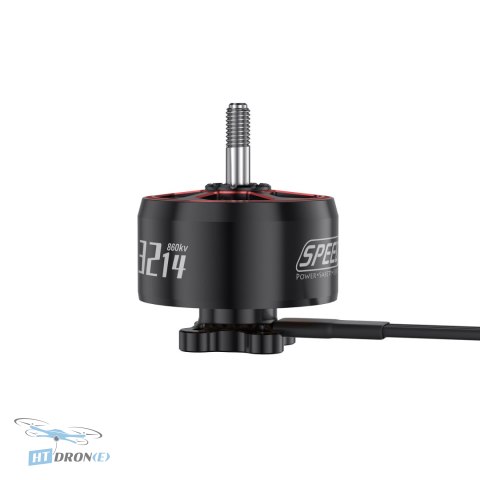

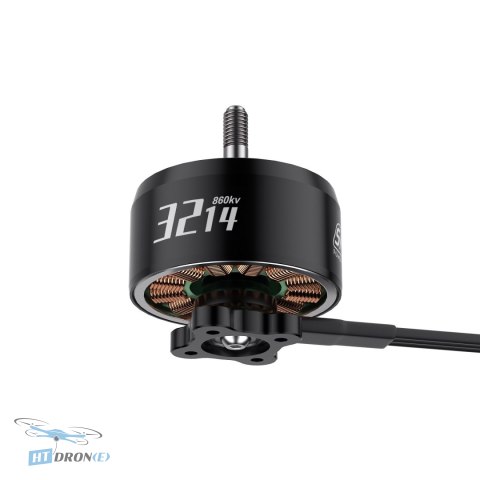

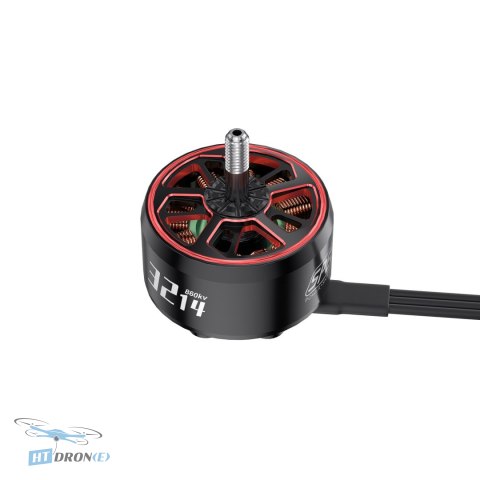

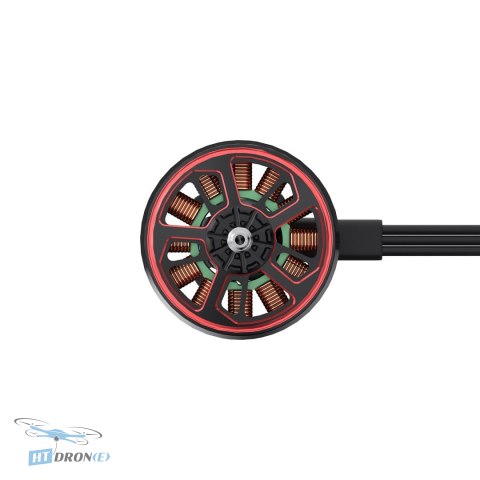

GEPRC SPEEDX2 3214 860KV FPV Drone Motor for 9-10 Inch Long Range Builds

Introduction

The GEPRC SPEEDX2 3214 860KV motor is a premium component designed specifically for 9-10 inch FPV long-range drone configurations. It addresses the need for significant power and reliable performance during extended flights, offering a substantial torque output that translates to excellent payload handling capabilities. This motor is the perfect choice for pilots looking to maximize their drone's flight time and carrying capacity for demanding aerial missions.

Key advantages

• Integrated external rotor design with precision CNC-machined aluminum alloy for superior durability.
• High-temperature resistant enameled wire ensures reliability under demanding conditions.
• Unique hollow-out design minimizes weight while maximizing power output.
• Utilizes N52H high magnetic energy magnets for a stronger, more efficient magnetic field.
• Optimized for 9-10 inch FPV long-range setups, providing ample thrust.
• High KV rating (860KV) suitable for efficient power delivery.
• Robust construction with aircraft-grade aluminum alloy rotor.
• Exceptional maximum power output for demanding flights.

Technical specifications

• Model: SPEEDX2 3214 Motor
• KV: 860KV
• Configuration: 12N14P
• Magnet: N52H
• Rotor Material: 7075-T6 Aviation Aluminum Alloy
• Stator Diameter: 32 mm
• Stator Height: 14 mm
• Output Shaft Diameter: 5 mm
• Dimensions: 42mm x 49.8mm
• Wire Specification: 16AWG 500mm
• Rated Voltage: 25.2V 6S (LiPo)
• Max Power: 1867.11W
• Max Current: 77.8A
• Mounting Hole: 19x19mm (M3)
• Color: Red and Black
• Weight: 155.0g
• Suitable Models: 9-10 inch configurations

Applications

This GEPRC SPEEDX2 3214 motor is perfectly suited for building and upgrading 9-10 inch FPV long-range drones. It excels in applications requiring extended flight times, significant payload capacity for cameras or equipment, and robust performance for aerial photography, videography, and exploration missions. Pilots focusing on endurance and carrying capability will find this motor a valuable asset.

Compatibility

The motor features a standard M3 mounting pattern with 19x19mm spacing, compatible with most 9-10 inch FPV drone frames. It is rated for 25.2V 6S LiPo batteries, making it suitable for high-power setups. The 5mm output shaft is designed to work with propellers suitable for 9-10 inch long-range configurations.

FAQ

What is the GEPRC SPEEDX2 3214 860KV motor designed for?

The GEPRC SPEEDX2 3214 860KV motor is specifically designed for 9-10 inch FPV long-range drone configurations, offering significant power and high torque for extended flights and payload capacity.

What are the key advantages of the SPEEDX2 3214 motor?

Key advantages include its integrated external rotor design with CNC-machined aluminum, high-temperature resistant wiring, a unique hollow-out structure for reduced weight and increased power, and the use of N52H magnets for a stronger magnetic field.

What is the recommended battery voltage for this GEPRC motor?

The motor is rated for a nominal voltage of 25.2V, making it compatible with 6S LiPo batteries, which is ideal for high-performance FPV setups.

Where can I buy the GEPRC SPEEDX2 3214 860KV motor with fast delivery?

You can buy the GEPRC SPEEDX2 3214 860KV motor at HTDRONE. We offer fast shipping within Poland and reliable international delivery via DHL.

What is the maximum power output of the SPEEDX2 3214 motor?

The GEPRC SPEEDX2 3214 motor boasts a maximum power output of 1867.11W, providing ample power for demanding flight maneuvers and heavy payloads.
