GEPRC GEP-GR1408 2500KV Brushless Motor for 3-inch FPV Drones

Introduction

The GEPRC GEP-GR1408 2500KV is a high-performance brushless motor specifically designed for 3-inch propeller applications in the FPV drone community. It delivers outstanding power and efficiency, making it a top choice for pilots looking to upgrade their setups for enhanced flight dynamics and responsiveness. This motor is built with premium components to ensure durability and consistent performance during demanding FPV flights.

Key advantages

• Optimized for 3-inch propellers for superior thrust and agility.
• Features high-efficiency N52H curved magnets for maximum power output.
• Equipped with durable Japanese NSK bearings for smooth operation and longevity.
• Robust #7075 aluminum shaft, CNC precision machined for enhanced crash resistance.

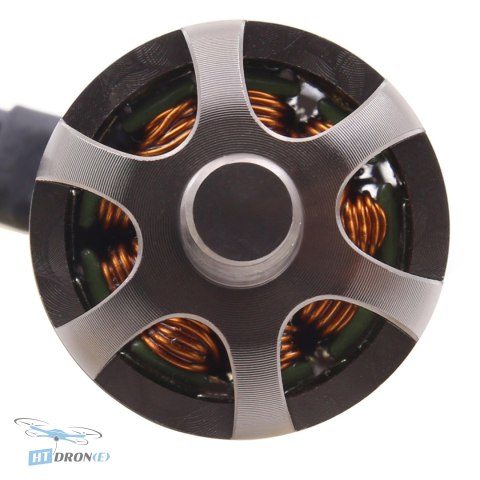

• Large ventilation holes on the bell design to effectively manage motor temperature.
• High KV rating (2500KV) suitable for 2S-6S LiPo batteries.
• Lightweight design at only 15.2g without the cable.
• Reliable GEPRC engineering for consistent FPV drone performance.

Technical specifications

• Model: GEP-GR1408
• KV: 2500
• Weight: 15.2 g (without cable)
• Wire Gauge: 24AWG
• Cable Length: 100 mm
• Stator Diameter: 14 mm
• Stator Height: 8 mm
• Shaft Diameter: 2 mm
• Configuration: 9N12P
• Motor Diameter: 18.2 mm
• Motor Height: 32 mm
• Propeller Adapter Shaft Thread: M5
• Input Voltage: 2S-6S (7.4 - 25.2V)

Applications

This GEPRC GEP-GR1408 2500KV motor is perfect for building or upgrading a wide range of FPV drones, including 3-inch freestyle quads, racing drones, and agile cinematic FPV setups. Its power and efficiency make it suitable for dynamic flying and aerial maneuvers.

Compatibility

The motor is compatible with 2S to 6S LiPo batteries, offering flexibility for different power requirements. The M5 shaft thread allows for easy mounting of various 3-inch propellers.

FAQ

What is the best application for the GEPRC GEP-GR1408 2500KV motor?

The GEPRC GEP-GR1408 2500KV motor is ideal for 3-inch FPV drones, excelling in both freestyle flying and racing applications due to its power and agility.

What LiPo battery voltage is recommended for the GEPRC GEP-GR1408 motor?

This motor supports a wide input voltage range from 2S (7.4V) up to 6S (25.2V), offering flexibility to tune performance based on your preferred battery setup.

How does the GEPRC GEP-GR1408 motor handle heat during operation?

It features large ventilation holes on the bell design, which are engineered to effectively control the motor's temperature, ensuring consistent performance even under load.

Where can I buy the GEPRC GEP-GR1408 2500KV motor with fast delivery?

You can buy the GEPRC GEP-GR1408 2500KV motor at HTDRONE. We offer fast delivery within Poland and reliable worldwide shipping via DHL.

What are the key advantages of the GEPRC GEP-GR1408 motor compared to others?

Key advantages include its optimization for 3-inch props, use of high-efficiency N52H magnets and Japanese NSK bearings, a robust aluminum shaft for crash resistance, and effective cooling design.
