GEPRC TAKER F411 8Bit 12A AIO FC with ELRS 2.4G Receiver

Introduction

The GEPRC TAKER F411 8Bit 12A AIO FC is an expertly engineered, lightweight all-in-one flight controller solution tailored for mini FPV drones. It's the ideal choice for pilots engaging in high-speed FPV racing and dynamic freestyle flying, offering a perfect blend of performance and compact design. This board simplifies your build by integrating essential components, ensuring a clean and efficient setup for your FPV rig.

Key Advantages

• High-performance ICM-42688-P Gyro for precise and responsive flight control.
• Integrated SPI ELRS 2.4G receiver for reliable and convenient radio control.
• Supports 2S to 4S LiPo batteries, offering flexibility for various power setups.
• Onboard 16MB blackbox memory for effortless flight parameter tuning and analysis.
• Compact 31.2x31.2mm size with 25.5x25.5mm mounting holes for easy integration into mini FPV builds.
• Includes essential features like a buzzer, LED support, and reverse UART for enhanced functionality.
• Equipped with BetaFlight OSD for real-time flight data display.
• Lightweight design at only 7g, minimizing added weight to your drone.

Technical Specifications

• Model: TAKER F411 8Bit 12A AIO (with ELRS Receiver)
• MCU: STM32F411
• IMU: ICM42688P
• Firmware Target: GEPRC_F411_SX1280
• OSD: BetaFlight OSD with AT7456E chip
• UART Ports: R1 T1 R2 T2
• Reverse Port: NR2
• Buzzer: Yes
• LED: Yes
• USB Port: micro USB
• ESC MCU: BB21F16G
• Blackbox: 16MB onboard flash memory
• Continuous Current: 12A
• Peak Current: 13A
• Input Voltage: 2-4S
• ESC Protocol: Dshot300, Oneshot, Multishot
• Current Meter: 210
• ESC Firmware: G-H-30 - Bluejay, 0.16, 48kHz

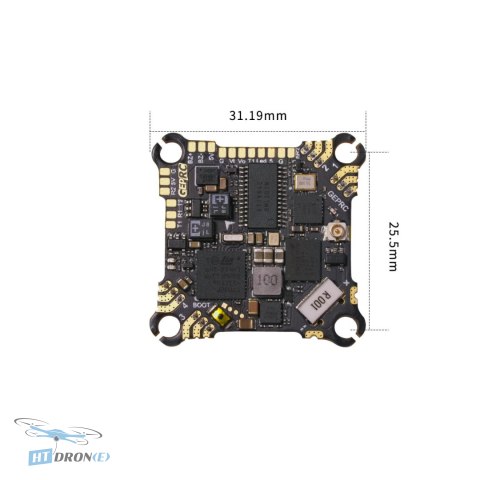

• Board Size: 31.2x31.2 mm
• Mounting Holes: 25.5x25.5 mm hole, M2 hole
• Weight: 7g

Applications

This versatile AIO flight controller is perfect for building and upgrading compact FPV drones used in various disciplines, including FPV racing, freestyle flying, and general aerial exploration. Its integrated ELRS receiver makes it an excellent choice for those seeking a reliable, low-latency control link.

Compatibility

The GEPRC TAKER F411 8Bit 12A AIO FC is compatible with 2-4S LiPo batteries and features standard mounting holes (25.5x25.5mm, M2) suitable for most mini FPV drone frames. It offers multiple UART ports (R1 T1 R2 T2) and supports various ESC protocols like Dshot300, Oneshot, and Multishot.

FAQ

What is the GEPRC TAKER F411 8Bit 12A AIO FC best suited for?

The GEPRC TAKER F411 8Bit 12A AIO FC is best suited for building and upgrading mini FPV drones, particularly for FPV racing and freestyle flying. Its lightweight design and integrated ELRS receiver make it an excellent choice for performance-oriented builds.

What are the main advantages of the integrated ELRS receiver?

The integrated ELRS (ExpressLRS) 2.4G receiver offers high performance, low latency, and robust control link reliability, which is crucial for FPV racing and freestyle maneuvers. It simplifies your drone build by reducing the need for an external receiver.

What battery voltage does the GEPRC TAKER F411 support?

This AIO flight controller supports input voltages from 2S to 4S LiPo batteries, providing flexibility to match your power system and desired flight performance.

What is the purpose of the 16MB blackbox on this flight controller?

The 16MB onboard blackbox memory allows you to record flight data, which is essential for tuning your drone's performance. You can analyze flight logs to make precise adjustments to PIDs and other parameters for optimal flight characteristics.

Where can I buy the GEPRC TAKER F411 8Bit 12A AIO FC with fast delivery?

You can buy the GEPRC TAKER F411 8Bit 12A AIO FC with fast delivery at HTDRONE. We offer worldwide shipping via DHL for international customers and fast shipping within Poland.
