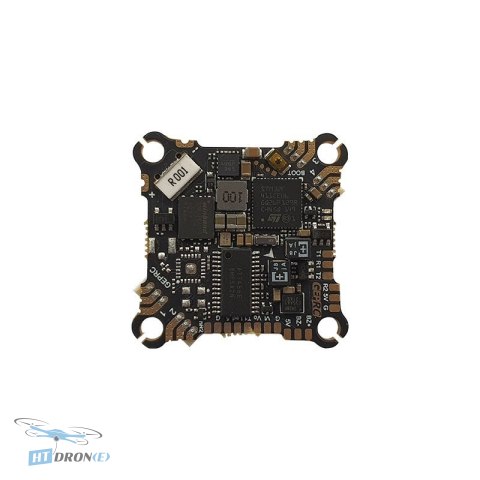

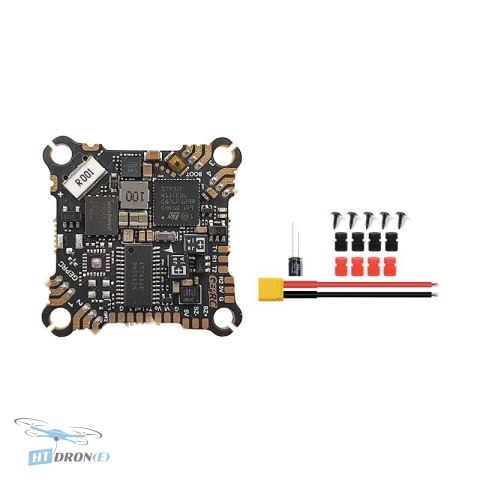

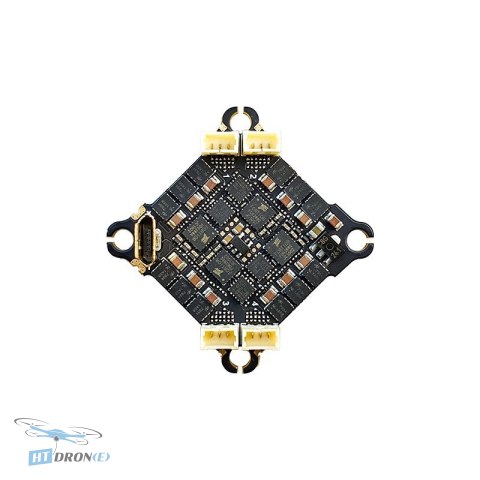

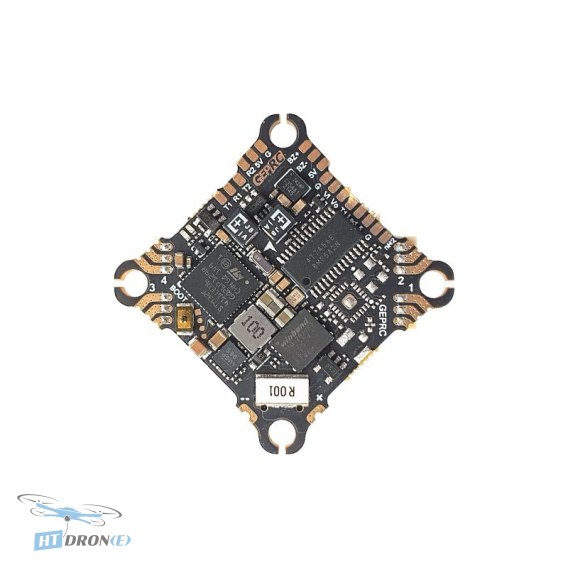

GEPRC TAKER F411 8Bit 12A AIO Flight Controller for Mini FPV Drones

Introduction

The GEPRC TAKER F411 8Bit 12A AIO Flight Controller is a high-performance, lightweight solution designed specifically for mini FPV drones. It caters to pilots engaged in various flight styles, including competitive racing and dynamic freestyle maneuvers. This integrated flight controller and ESC board offers a streamlined setup, reducing complexity and weight for optimal drone agility.

Key advantages

• Optimized for mini FPV drones, enhancing agility and responsiveness.
• Integrated Flight Controller (FC) and Electronic Speed Controller (ESC) for a compact build.
• Features the precise ICM-42688-P gyroscope for smooth and accurate flight control.
• Supports 2-4S LiPo batteries, offering flexibility for different power setups.
• Includes 16MB of onboard Blackbox flash memory for in-depth flight data analysis and tuning.
• Equipped with BetaFlight OSD for real-time flight information display.
• Robust ESC firmware (Bluejay 48kHz) for efficient motor control.
• Compact 31.2x31.2mm size with standard 25.5x25.5mm mounting holes for easy integration.

Technical specifications

• Model: TAKER F411 8Bit 12A AIO (without ELRS receiver)
• MCU: STM32F411
• IMU: ICM42688P
• Firmware Target: GEPRC_F411_SX1280
• OSD: BetaFlight OSD with AT7456E chip
• UART Ports: R1 T1, R2 T2
• Reverse UART: NR2
• Buzzer: Yes
• LED: Yes
• USB Port: micro USB
• ESC MCU: BB21F16G
• Blackbox: 16MB onboard flash memory
• Continuous Current: 12A
• Peak Current: 13A
• Input Voltage: 2-4S
• ESC Protocol: Dshot300, Oneshot, Multishot
• Current Meter: 210
• ESC Firmware: G-H-30 - Bluejay, 0.16, 48kHz
• Board Size: 31.2x31.2 mm
• Mounting Holes: 25.5x25.5 mm, M2 hole
• Weight: 7g

Applications

This AIO flight controller is perfectly suited for building high-performance mini FPV drones used in racing, freestyle flying, and general FPV exploration. Its lightweight design and integrated components make it an excellent choice for custom builds where weight and space are critical factors.

Compatibility

The GEPRC TAKER F411 8Bit 12A AIO supports 2-4S LiPo batteries. It features standard UART ports (R1 T1, R2 T2) and a reverse UART (NR2) for various peripherals. The 25.5x25.5mm mounting pattern with M2 holes ensures compatibility with popular FPV frame designs.

FAQ

What is the GEPRC TAKER F411 8Bit 12A AIO Flight Controller best suited for?

The GEPRC TAKER F411 8Bit 12A AIO Flight Controller is specifically designed for mini FPV drones, making it ideal for FPV racing and freestyle flying. Its lightweight and integrated design optimizes performance and agility for these demanding applications.

What are the key technical specifications of the GEPRC TAKER F411 8Bit 12A AIO FC?

This AIO FC features an STM32F411 MCU, ICM42688P IMU, 12A continuous ESC current, 13A peak current, and supports 2-4S LiPo batteries. It also includes 16MB of Blackbox memory and BetaFlight OSD.

Does the GEPRC TAKER F411 8Bit 12A AIO support different battery voltages?

Yes, the GEPRC TAKER F411 8Bit 12A AIO Flight Controller supports input voltages from 2S to 4S LiPo batteries, offering flexibility for various FPV drone builds.

Where can I buy the GEPRC TAKER F411 8Bit 12A AIO FC with fast delivery?

You can buy the GEPRC TAKER F411 8Bit 12A AIO FC at HTDRONE. We offer fast shipping within Poland and reliable worldwide delivery via DHL, ensuring you get your FPV parts quickly.

What is the mounting size for the GEPRC TAKER F411 8Bit 12A AIO?

The GEPRC TAKER F411 8Bit 12A AIO features mounting holes sized at 25.5mm x 25.5mm, compatible with M2 screws, fitting most popular mini FPV drone frames.
