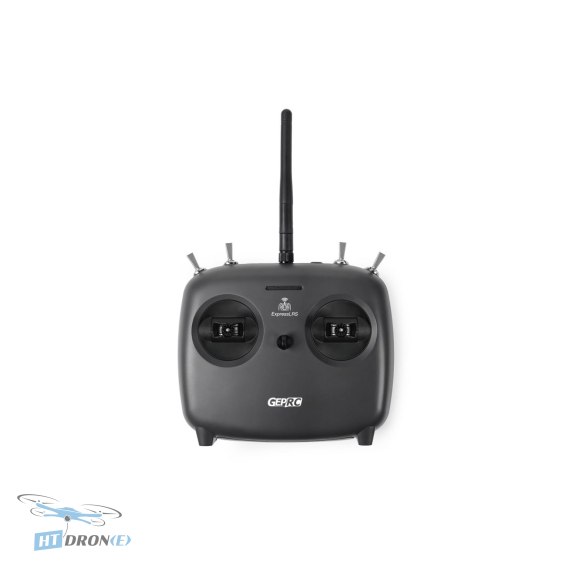

GEPRC TinyRadio GR8 ELRS 2.4GHz Radio Controller for FPV Drones

Introduction

The GEPRC TinyRadio GR8 ELRS 2.4GHz is a high-performance remote control transmitter designed for FPV drone enthusiasts and UAV operators. It leverages the cutting-edge ExpressLRS (ELRS) technology to provide unparalleled control, offering long-range connectivity, minimal latency, and an impressive 500Hz refresh rate. This controller is perfect for pilots who demand reliability and responsiveness for their multirotor and fixed-wing aircraft.

Key advantages

• Simple and ergonomic design for comfortable and intuitive operation.
• Integrated ExpressLRS 2.4GHz module for superior wireless performance.
• Adjustable power output up to 500mW with a replaceable antenna, enabling control ranges exceeding 2 km in optimal conditions.
• Convenient firmware updates via USB and ELRS module Wi-Fi updates for easy maintenance.
• Dual 18650 battery power for extended flight sessions.
• 8-channel support with ultra-low latency for precise maneuverability.
• Supports Bluetooth joystick functionality for added versatility.
• Wide frequency band compatibility (915MHz FCC / 868MHz EU / 2.4GHz ISM).

Technical specifications

• Size: 147x135x71mm (without antenna)
• Weight: 223g
• Drone Type: Multirotor, Airplane
• Frequency Band: 915MHz FCC / 868MHz EU / 2.4GHz ISM
• Input Voltage: 6.6-8.4V
• Antenna Interface: SMA
• Power: 100/250/500mW
• Channels: 8 channels
• Charging: USB-C
• Firmware Update: Supported
• Bluetooth Joystick: Supported
• Mode: Mode 2 (Left Hand Throttle)

Applications

This versatile radio controller is ideal for a wide range of applications including FPV racing, freestyle flying, long-range exploration, aerial photography, and control of various unmanned aerial vehicles (UAVs) such as multirotors and airplanes. Its robust performance makes it suitable for both beginners and experienced pilots.

Compatibility

The GEPRC TinyRadio GR8 ELRS is compatible with multirotor and airplane drones. It operates on standard FPV frequency bands and supports firmware updates via USB and Wi-Fi. It is powered by two 18650 batteries, ensuring long operational times.

FAQ

What is the maximum range of the GEPRC TinyRadio GR8 ELRS 2.4GHz controller?

The GEPRC TinyRadio GR8 ELRS controller, with its adjustable power up to 500mW and a replaceable antenna, can achieve control ranges exceeding 2 kilometers in ideal conditions. This makes it suitable for long-range FPV flights and drone operations.

What makes the ExpressLRS (ELRS) system in this controller special?

The integrated ExpressLRS system sets new standards for remote control connectivity, offering exceptional long-range performance, ultra-low latency, and a high maximum refresh rate of 500 Hz. This ensures precise and responsive control over your drone.

How is the firmware updated on the GEPRC TinyRadio GR8 ELRS?

Firmware updates are convenient with the GEPRC TinyRadio GR8 ELRS. You can perform remote firmware updates via the USB interface and update the ELRS module firmware wirelessly via Wi-Fi, ensuring your controller is always up-to-date.

What types of drones is the GEPRC TinyRadio GR8 ELRS controller compatible with?

The GEPRC TinyRadio GR8 ELRS controller is designed for both Multirotor and Airplane types of drones. Its 8 channels and advanced features make it a versatile choice for various UAV platforms.

Where can I buy the GEPRC TinyRadio GR8 ELRS 2.4GHz controller with fast delivery?

You can buy the GEPRC TinyRadio GR8 ELRS 2.4GHz controller at HTDRONE. We offer fast international delivery via DHL, ensuring you receive your order promptly wherever you are located.
