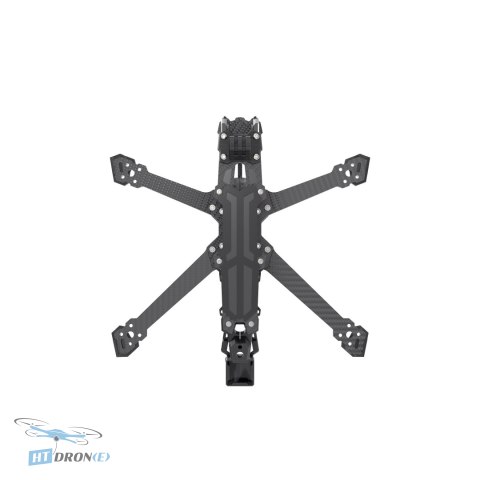

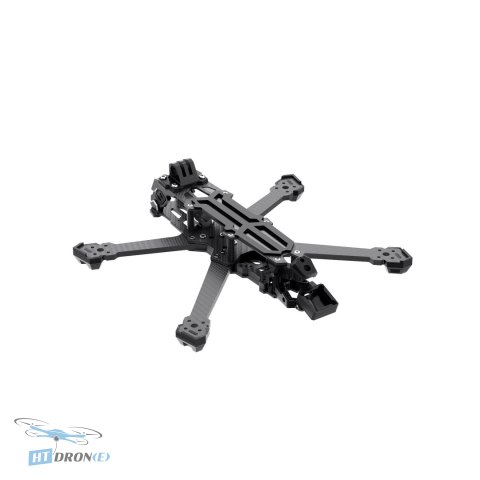

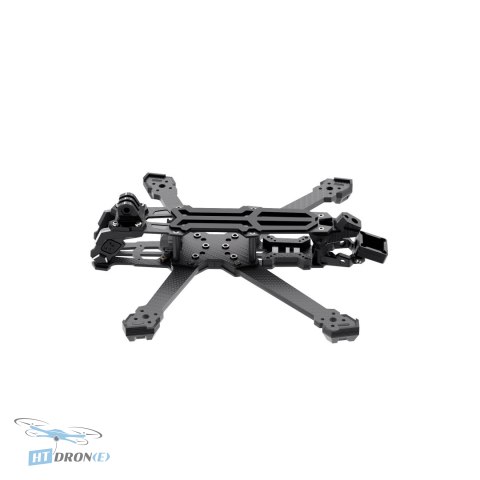

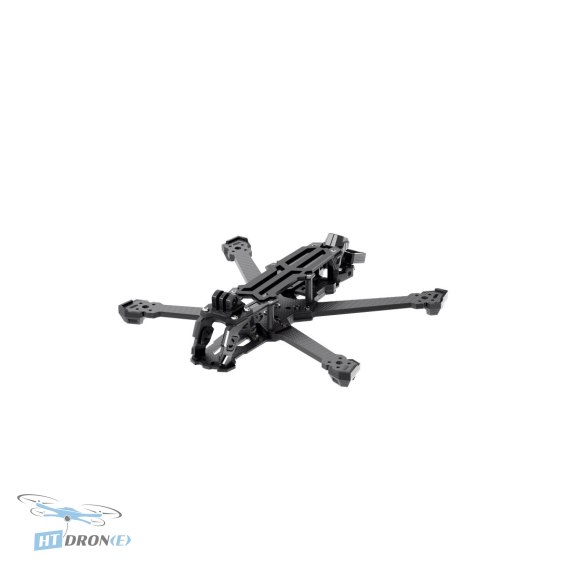

GEPRC Vapor-D5 5-Inch FPV Frame for Cinematic Filming | HTDRONE

Introduction

The GEPRC Vapor-D5 frame is meticulously designed for professional FPV cinematic filming. It addresses the common issue of propellers obstructing camera views by incorporating an innovative DC (Ductile Canopy/Design Concealment) structure. This unique design ensures that your aerial footage remains clean and professional, enhancing the overall flight and viewing experience. Built for pilots who demand clarity and performance in their aerial cinematography, the Vapor-D5 is a top choice.

Key Advantages

• Unique DC design keeps propellers out of camera view for obstruction-free cinematic shots.
• Constructed from high-strength, lightweight carbon fiber for durability and agility.
• CNC-machined aluminum lens guard panels provide both style and robust protection.
• Features dedicated camera side panels and a front shield for enhanced durability.
• Available in a 5-inch size to suit specific flight and filming preferences.
• Quick-connect design simplifies maintenance and assembly, saving you valuable time.
• Supports versatile FC and VTX mounting options for easy customization.
• Optimized for 5-inch propellers for balanced performance and flight characteristics.

Technical Specifications

• Model: GEP-Vapor-D5 Frame
• Wheelbase: 238.4 mm
• Top Plate Thickness: 2.0 mm
• Middle Plate Thickness: 2.0 mm
• Arm Thickness: 5.0 mm
• Bottom Plate Thickness: 2.5 mm
• FC Mounting Hole Size: 20x20mm / 30.5x30.5mm
• VTX Mounting Hole Size: 20x20mm / 25x25mm / 30.5x30.5mm
• Motor Mounting Hole Size: 16x16mm
• Camera Mounting Hole Size: 19 mm / 20 mm
• Recommended Propeller Size: 5 inch
• Weight: 200.8g ±2g
• Included in Package: 1 x GEP-Vapor-D5 Frame, 2 x M20*250mm Battery Straps, 2 x Silicone Battery Anti-slip Pads, 1 x Screw Kit, 1 x Print Package, 1 x L-shaped Screwdriver (1.5mm), 1 x L-shaped Screwdriver (2mm), 1 x L-shaped Screwdriver (3mm), 1 x M8 Wrench

Applications

The GEPRC Vapor-D5 frame is primarily designed for FPV cinematic filming and aerial videography. Its unique design makes it suitable for capturing smooth, professional-quality video footage where propeller visibility is a concern. It's an excellent choice for drone enthusiasts and content creators looking to produce high-quality aerial shots for various projects.

Compatibility

This frame features versatile mounting options for flight controllers (20x20mm / 30.5x30.5mm) and video transmitters (20x20mm / 25x25mm / 30.5x30.5mm). It is compatible with 19mm/20mm cameras and motors with 16x16mm mounting patterns. Designed for 5-inch propellers.

FAQ

What is the main advantage of the GEPRC Vapor-D5 frame for filming?

The main advantage is its unique DC design, which ensures the propellers are kept out of the camera's view. This results in obstruction-free, professional-quality cinematic footage.

What materials is the GEPRC Vapor-D5 frame made from?

The frame is constructed from high-strength, lightweight carbon fiber, complemented by CNC-machined aluminum lens guard panels and camera protection features for enhanced durability.

What size propellers are recommended for the GEPRC Vapor-D5 frame?

The GEPRC Vapor-D5 frame is optimized for 5-inch propellers, offering a balanced performance for cinematic flight and filming applications.

What are the FC and VTX mounting options for the GEPRC Vapor-D5?

The frame offers versatile mounting options, supporting 20x20mm and 30.5x30.5mm for the flight controller (FC) and 20x20mm, 25x25mm, or 30.5x30.5mm for the video transmitter (VTX).

Where can I buy the GEPRC Vapor-D5 frame with fast delivery?

You can buy the GEPRC Vapor-D5 frame at HTDRONE. We offer fast shipping within Poland and reliable worldwide delivery via DHL, ensuring you receive your order promptly.
