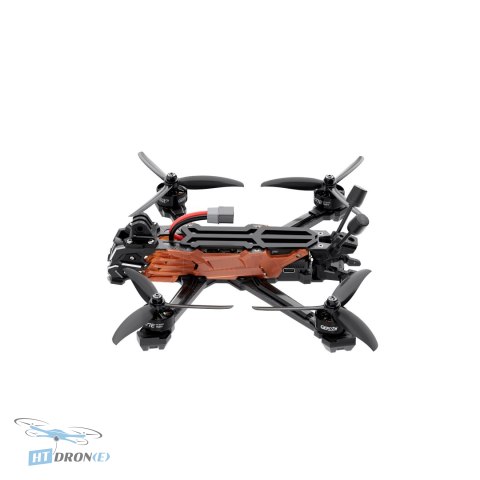

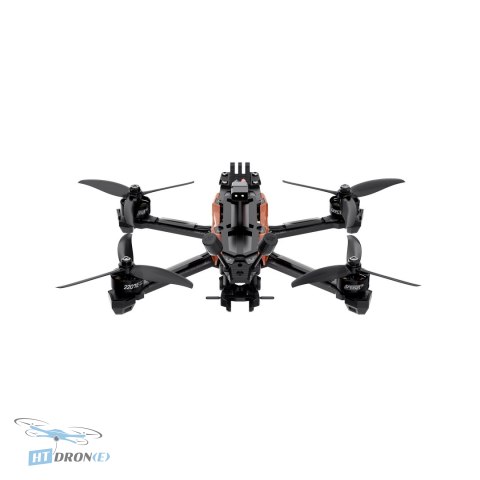

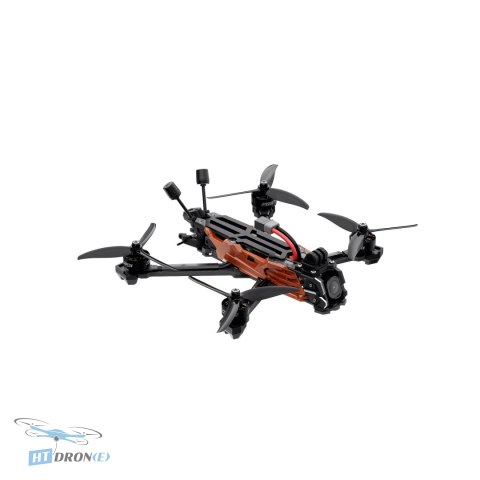

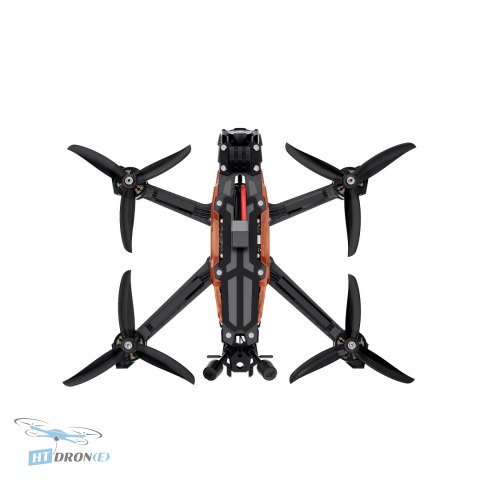

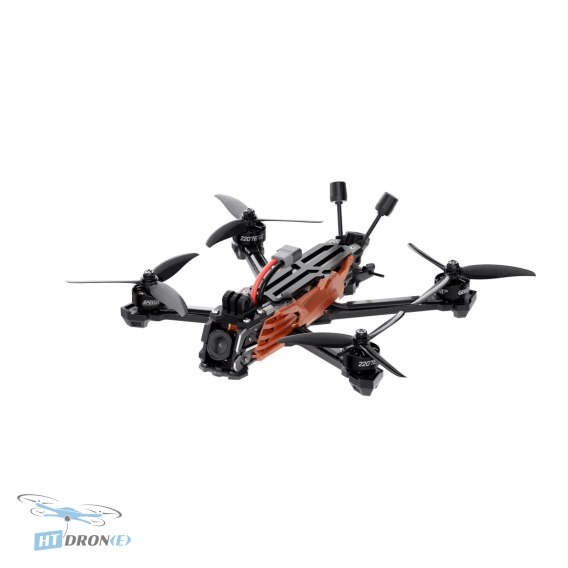

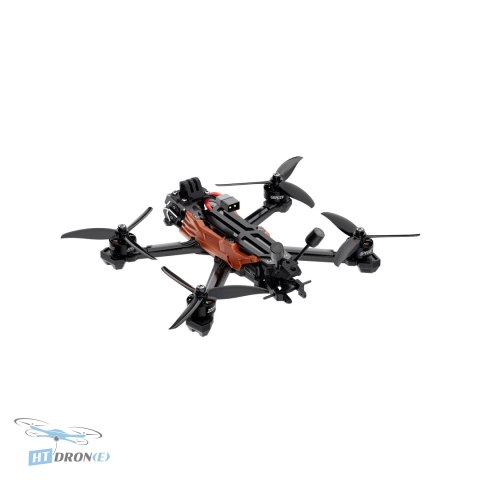

GEPRC Vapor-D5 O4 Pro ELRS 2.4GHz GPS FPV Drone for Freestyle & Cinematic Flights

Introduction

The GEPRC Vapor-D5 O4 Pro is a meticulously engineered FPV drone designed to maximize the performance of the DJI O4 Air Unit Pro. This enhanced version of the Vapor series delivers exceptional image clarity and flight smoothness, making it a top choice for both demanding freestyle maneuvers and immersive cinematic FPV flying. Elevate your aerial videography and piloting skills with this cutting-edge FPV quadcopter.

Key Advantages

• Superior DJI O4 Air Unit Pro integration for high-definition, low-latency video transmission.
• Powerful CMOS sensor from DJI O4 Pro Camera ensures detailed, clear footage even in challenging low-light conditions.
• Durable CNC-machined aluminum lens housing provides robust protection and a premium aesthetic.
• Innovative silicone shock-absorbing elements and a bold, mech-inspired frame design minimize vibrations for enhanced flight stability.
• Equipped with a reliable ELRS 2.4GHz receiver for long-range, stable control link.
• Integrated GEP-M10 GPS module for precise positioning and flight assistance features.
• Optimized for 6S LiPo batteries, offering extended flight times between 14-19 minutes.
• Includes essential accessories like spare propellers, battery straps, and mounting hardware for GoPro.

Technical Specifications

• Model: Vapor-D5 O4 Pro
• Frame: GEP-Vapor-D5 O4 Pro Frame
• Wheelbase: 230 mm
• Top Plate: 2.0 mm
• Middle Plate: 2.0 mm
• Bottom Plate: 2.5 mm
• Arm Thickness: 5.0 mm
• FC: GEP-F722-HD v2
• MCU: STM32F722
• Gyroscope: ICM42688-P(SPI)
• Barometer: YES
• OSD: Betaflight OSD w/AT7456E
• ESC: TAKER H60_BLS 60A 4IN1 ESC
• VTX: DJI O4 Air Unit Pro
• Camera: O4 Pro Camera
• Antenna: Original O4 Pro Antenna
• Connector: XT60
• GPS: GEP-M10
• 5-inch Motor: GEPRC SPEEDX2 2207E 1960KV
• 5-inch Propeller: GEMFAN 5136
• Weight: 428 g ± 5g
• Receiver: ELRS 2.4GHz
• Recommended Battery: 6S LiPo 1300mAh - 1800mAh
• Flight Time: 14-19 min

Applications

This FPV drone is expertly designed for high-performance freestyle flying, capturing stunning cinematic aerial footage, and advanced FPV racing. Its robust build and advanced electronics make it suitable for pilots seeking a reliable and powerful platform for various aerial endeavors.

Compatibility

The GEPRC Vapor-D5 O4 Pro is compatible with 6S LiPo batteries (1300mAh - 1800mAh recommended) and utilizes the DJI O4 Air Unit Pro system. It features an XT60 connector for power. The included GoPro mount allows for easy integration of action cameras.

FAQ

What is the GEPRC Vapor-D5 O4 Pro drone best suited for?

The GEPRC Vapor-D5 O4 Pro is expertly designed for high-performance freestyle FPV flying and capturing stunning cinematic aerial footage. Its advanced features and robust build make it ideal for pilots seeking a premium experience in these demanding applications.

What video transmission system does the GEPRC Vapor-D5 O4 Pro use?

This FPV drone utilizes the DJI O4 Air Unit Pro system, providing exceptional image clarity, high frame rates, and low latency for an immersive FPV experience. It ensures a reliable video feed during flight.

What is the expected flight time for the GEPRC Vapor-D5 O4 Pro?

With the recommended 6S LiPo battery (1300mAh - 1800mAh), the GEPRC Vapor-D5 O4 Pro can achieve flight times ranging from 14 to 19 minutes. This allows for extended aerial sessions.

Does the GEPRC Vapor-D5 O4 Pro include GPS?

Yes, the GEPRC Vapor-D5 O4 Pro comes equipped with a GEP-M10 GPS module. This enables features such as position hold, return-to-home (if configured), and improved flight stability.

Where can I buy the GEPRC Vapor-D5 O4 Pro FPV drone with fast delivery?

You can order the GEPRC Vapor-D5 O4 Pro FPV drone from HTDRONE, your specialized FPV parts store based in Poland. We offer fast international delivery via DHL, ensuring you receive your order promptly.
