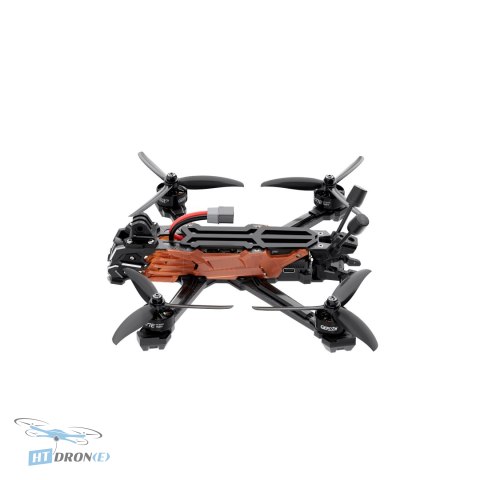

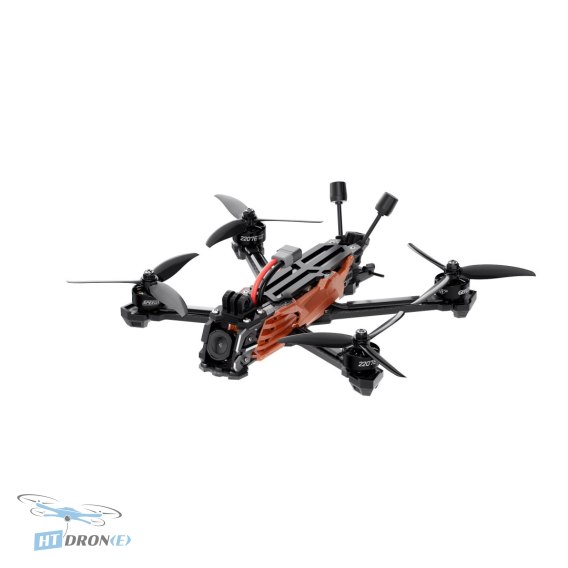

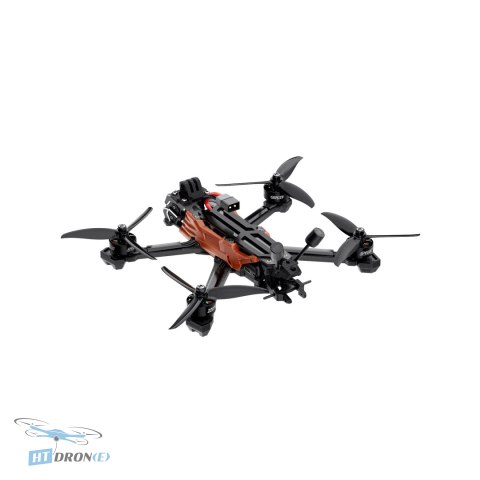

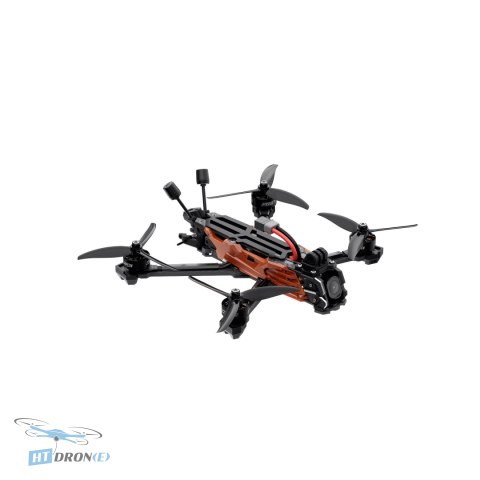

GEPRC Vapor-D5 O4 Pro TBS Nano RX FPV Drone for Freestyle & Cinematic Flight

Introduction

The GEPRC Vapor-D5 O4 Pro is a meticulously engineered FPV drone designed to harness the full potential of the DJI O4 Air Unit Pro. This advanced version of the Vapor series offers superior image clarity and flight smoothness, making it an ideal choice for both demanding freestyle maneuvers and professional cinematic aerial shots. Elevate your FPV experience with a drone built for peak performance and visual fidelity.

Key Advantages

• Optimized for DJI O4 Air Unit Pro for superior video transmission.
• High-performance CMOS sensor delivers crisp, detailed footage, even in low light.
• CNC-machined aluminum lens housing provides robust protection and a premium look.
• New silicone shock-absorbing elements minimize vibrations for smoother flights.
• Bold, mech-inspired frame design enhances stability and durability.
• Powerful GEPRC SPEEDX2 2207E 1960KV motors for dynamic flight control.
• Extended flight time of 14-19 minutes with recommended 6S LiPo batteries.
• Integrated TBS Nano RX receiver for reliable control link.

Technical Specifications

• Model: Vapor-D5 O4 Pro
• Frame: GEP-Vapor-D5 O4 Pro Frame
• Wheelbase: 230 mm
• Top Plate: 2.0 mm
• Middle Plate: 2.0 mm
• Bottom Plate: 2.5 mm
• Arm Thickness: 5.0 mm
• FC: GEP-F722-HD v2
• MCU: STM32F722
• Gyroscope: ICM42688-P (SPI)
• Barometer: YES
• OSD: Betaflight OSD w/AT7456E
• ESC: TAKER H60_BLS 60A 4IN1 ESC
• VTX: DJI O4 Air Unit Pro
• Camera: O4 Pro Camera
• Antenna: Original O4 Pro Antenna
• Connector: XT60
• GPS: No
• 5-inch Motor: GEPRC SPEEDX2 2207E 1960KV
• 5-inch Propeller: GEMFAN 5136
• Weight: 428 g ± 5g
• Receiver: TBS Nano RX
• Recommended Battery: 6S LiPo 1300mAh - 1800mAh
• Flight Time: 14-19 min

Applications

This FPV drone is perfectly suited for advanced freestyle flying, high-quality cinematic videography, and general FPV UAV operations where superior video quality and stable flight characteristics are paramount. Its robust design also makes it suitable for demanding flight conditions.

Compatibility

Equipped with the DJI O4 Air Unit Pro and TBS Nano RX receiver, this drone offers seamless integration with compatible DJI FPV systems and TBS Crossfire radio controllers. It utilizes an XT60 connector for power, requiring a 6S LiPo battery (1300mAh - 1800mAh recommended).

FAQ

What is the main advantage of the GEPRC Vapor-D5 O4 Pro?

The GEPRC Vapor-D5 O4 Pro's main advantage is its seamless integration with the DJI O4 Air Unit Pro, providing exceptional video clarity and low latency for an immersive FPV experience. It's designed for both demanding freestyle and professional cinematic flights.

Who is the GEPRC Vapor-D5 O4 Pro FPV drone best suited for?

This FPV drone is ideal for experienced pilots looking for top-tier performance in freestyle maneuvers and high-quality cinematic aerial videography. Its advanced features and compatibility with DJI O4 make it a choice for those who demand the best.

What are the key technical specifications of the GEPRC Vapor-D5 O4 Pro?

Key specs include a 230mm wheelbase, GEP-F722-HD v2 flight controller, TAKER H60_BLS 60A ESC, DJI O4 Air Unit Pro VTX, O4 Pro Camera, and a TBS Nano RX receiver. It's powered by GEPRC SPEEDX2 2207E 1960KV motors and uses GEMFAN 5136 propellers.

What is the recommended battery for the GEPRC Vapor-D5 O4 Pro?

The recommended battery for the GEPRC Vapor-D5 O4 Pro is a 6S LiPo with a capacity between 1300mAh and 1800mAh. This provides an optimal balance for achieving the estimated flight time of 14-19 minutes.

Where can I buy the GEPRC Vapor-D5 O4 Pro FPV drone with fast delivery?

You can buy the GEPRC Vapor-D5 O4 Pro FPV drone at HTDRONE. We offer fast shipping within Poland and worldwide delivery via DHL for international orders, ensuring you receive your new drone quickly.
