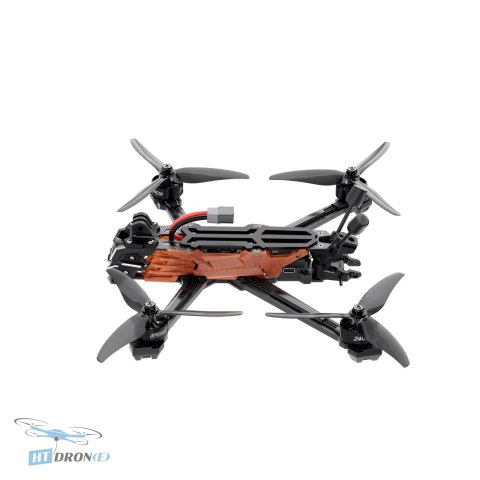

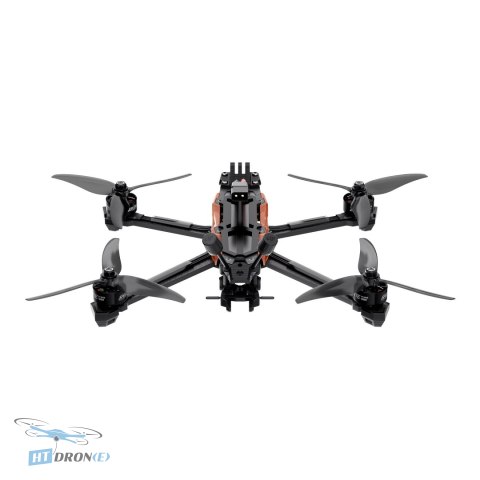

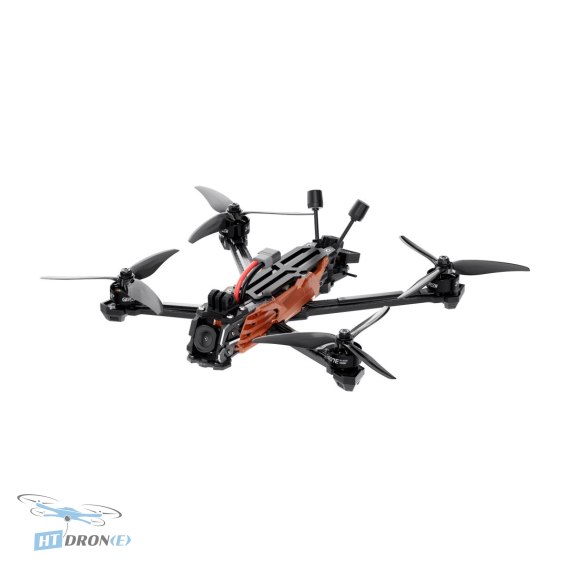

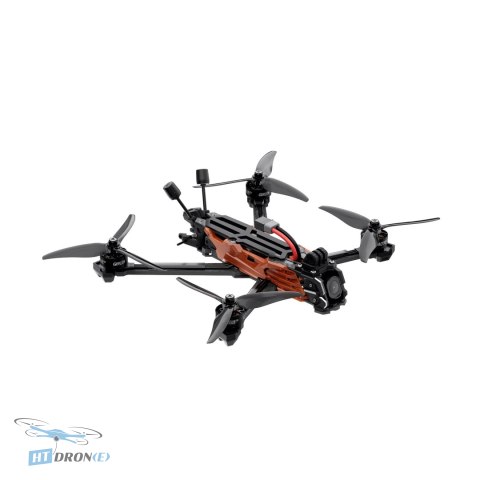

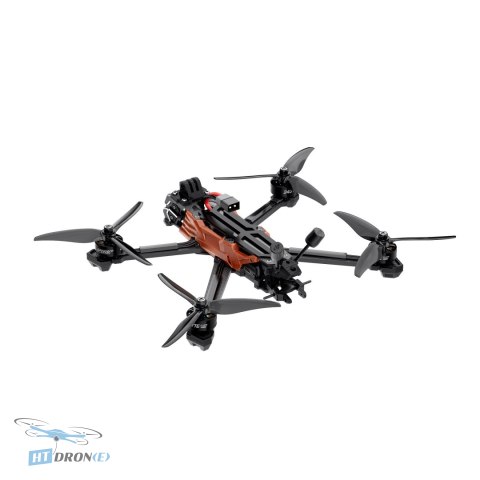

GEPRC Vapor-D6 O4 Pro ELRS 2.4GHz GPS FPV Drone for DJI O4

Introduction

The GEPRC Vapor-D6 O4 Pro is a cutting-edge FPV drone engineered for seamless integration with the DJI O4 Air Unit Pro. Designed for both power and precision, this advanced drone is ideal for freestyle pilots and videographers who demand top-tier performance. Its robust construction and advanced features ensure an unparalleled flying and recording experience.

Key Advantages

• Optimized for DJI O4 Air Unit Pro for superior FPV transmission.
• CNC-machined aluminum lens housing and silicone dampers minimize vibrations for ultra-smooth video.
• Powerful CMOS sensor for enhanced image clarity and excellent low-light capability.
• Durable, mecha-inspired side panels and a reinforced front edge for aggressive flight protection.
• Integrated GPS (GEP-M10) for flight stability and navigation.
• ELRS 2.4GHz receiver for reliable, long-range control.
• High-performance GEPRC SPEEDX2 2407E 1750KV motors for powerful flight.
• Designed for 6S LiPo batteries, offering flight times of 14-19 minutes.

Technical Specifications

• Model: Vapor-D6 O4 Pro
• Frame: GEP-Vapor-D6 O4 Pro Frame
• Wheelbase: 274.60 mm
• Top Plate: 2.0 mm
• Middle Plate: 2.0 mm
• Bottom Plate: 2.5 mm
• Arm Thickness: 5.0 mm
• FC: GEP-F722-HD v2
• MCU: STM32F722
• Gyroscope: ICM42688-P (SPI)
• Barometer: Yes
• OSD: Betaflight OSD with AT7456E
• ESC: TAKER H60_BLS 60A 4IN1 ESC
• VTX: DJI O4 Air Unit Pro Transmission Module
• Camera: DJI O4 Air Unit Pro Transmission Module
• Antenna: DJI O4 Air Unit Pro Antenna
• Connector: XT60
• GPS: GEP-M10
• 6-inch Motor: GEPRC SPEEDX2 2407E 1750KV
• 6-inch Propeller: HQprop 6X3.5X3
• Weight: 465 g ±5g
• Receiver: ELRS 2.4G
• Recommended Battery: 6S LiPo 1500mAh - 2000mAh
• Flight Time: 14-19 min

Applications

This FPV drone is perfectly suited for high-definition aerial videography, dynamic freestyle flying, cinematic FPV shots, and general UAV operations requiring excellent image quality and stable flight characteristics. Its robust design also makes it suitable for demanding flight conditions.

Compatibility

The GEPRC Vapor-D6 O4 Pro is specifically designed to be compatible with the DJI O4 Air Unit Pro. It utilizes an XT60 connector for power and is recommended for use with 6S LiPo batteries ranging from 1500mAh to 2000mAh.

FAQ

What makes the GEPRC Vapor-D6 O4 Pro ideal for aerial videography?

The drone features a CNC-machined aluminum lens housing and silicone dampers to significantly reduce vibrations, ensuring exceptionally smooth video capture. Combined with the DJI O4 Air Unit Pro's powerful CMOS sensor, it delivers superior image clarity, even in low-light conditions.

What is the flight time of the GEPRC Vapor-D6 O4 Pro?

With its recommended 6S LiPo battery (1500mAh - 2000mAh), the GEPRC Vapor-D6 O4 Pro offers an impressive flight time of 14 to 19 minutes, allowing for extended aerial sessions.

Does the GEPRC Vapor-D6 O4 Pro come with a GPS module?

Yes, the GEPRC Vapor-D6 O4 Pro is equipped with the GEP-M10 GPS module, enhancing flight stability and enabling navigation features essential for professional aerial operations.

What FPV transmission system is the GEPRC Vapor-D6 O4 Pro compatible with?

This drone is specifically designed for seamless integration with the latest DJI O4 Air Unit Pro, providing high-definition FPV feed and reliable performance.

Where can I buy the GEPRC Vapor-D6 O4 Pro with fast delivery?

You can order the GEPRC Vapor-D6 O4 Pro drone at HTDRONE, your specialized FPV parts store. We offer fast and reliable worldwide shipping via DHL, ensuring you receive your order quickly.
