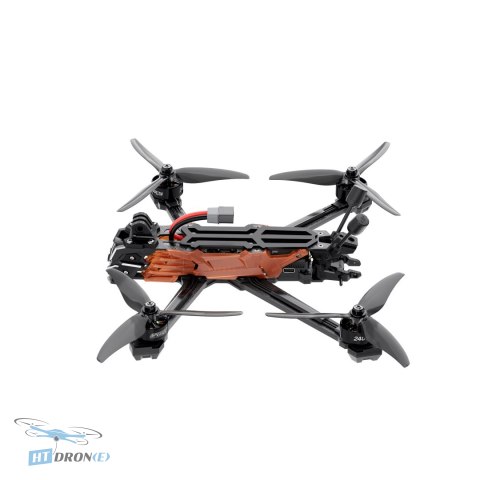

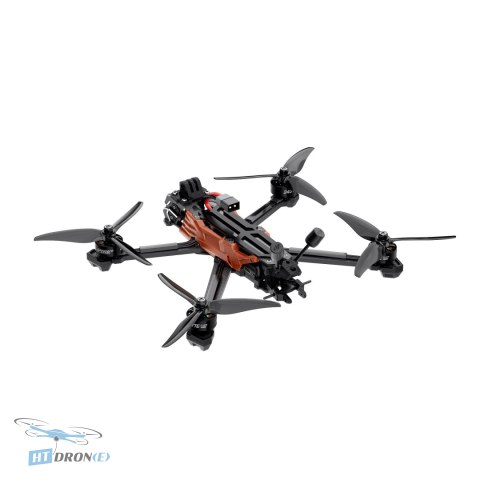

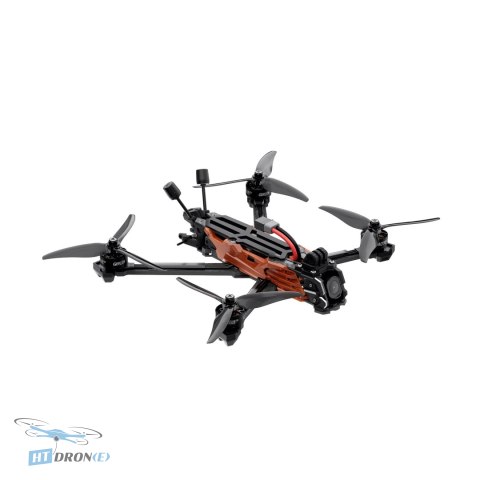

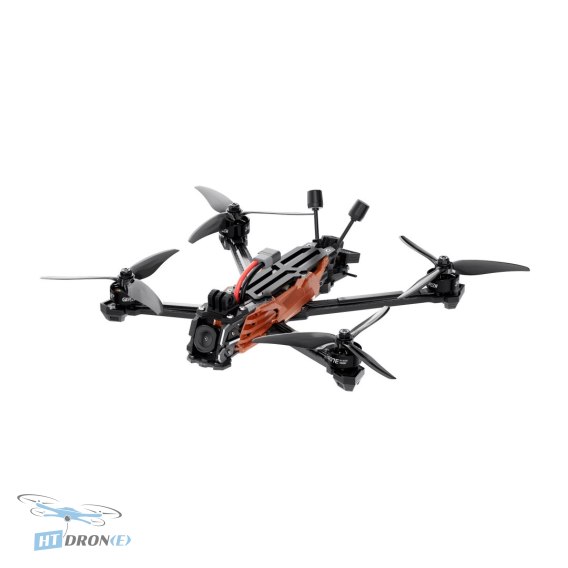

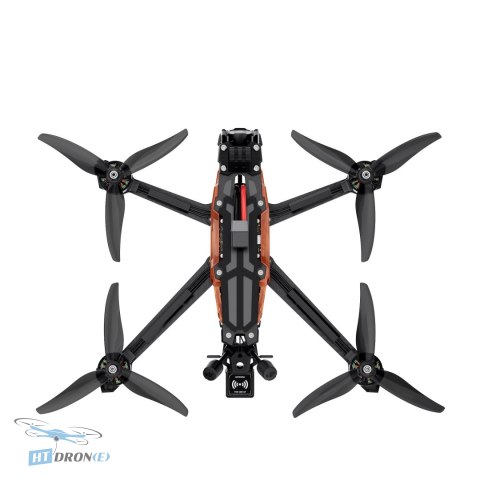

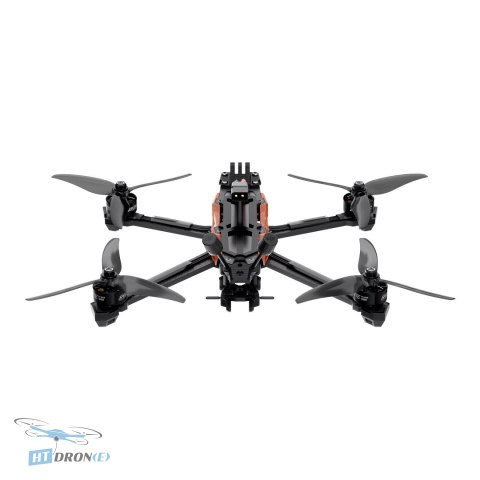

GEPRC Vapor-D6 O4 Pro PNP FPV Drone - Freestyle, DJI O4 Integration

Introduction

The GEPRC Vapor-D6 O4 Pro PNP is a cutting-edge FPV drone engineered for unparalleled performance and seamless integration with the DJI O4 Air Unit Pro system. This advanced drone is built for freestyle enthusiasts who demand power, precision, and exceptional video quality. Its robust design and high-end components ensure a superior flying experience for both experienced pilots and those looking to upgrade their setup.

Key Advantages

• Seamless DJI O4 Air Unit Pro Integration: Specifically designed to work flawlessly with the latest DJI O4 Air Unit Pro for superior video transmission.
• Enhanced Video Clarity: Features a powerful CMOS sensor for exceptional image clarity and outstanding low-light performance.
• Ultra-Smooth Video Capture: Equipped with CNC-machined aluminum lens housing and shock-absorbing silicone elements to significantly reduce vibrations.
• Durable and Stylish Design: Bold, mech-inspired side panels enhance durability, while the front edge provides extra camera lens protection during aggressive flights.
• High-Performance Components: Built with a GEP-F722-HD v2 flight controller and a TAKER H60_BLS 60A 4IN1 ESC for reliable and powerful operation.
• Optimized for Freestyle: With a 274.60mm wheelbase and 5.0mm thick arms, it's designed for agile and stable freestyle maneuvers.
• Extended Flight Time: Recommended 6S LiPo 1500mAh - 2000mAh batteries provide an impressive flight time of 14-19 minutes.
• PNP Ready: Comes as a Plug-N-Play (PNP) unit, allowing for easy customization with your preferred receiver.

Technical Specifications

• Model: Vapor-D6 O4 Pro
• Frame: GEP-Vapor-D6 O4 Pro Frame
• Wheelbase: 274.60 mm
• Top Plate: 2.0 mm
• Middle Plate: 2.0 mm
• Bottom Plate: 2.5 mm
• Arm Thickness: 5.0 mm
• FC: GEP-F722-HD v2
• MCU: STM32F722
• Gyroscope: ICM42688-P (SPI)
• Barometer: YES
• OSD: Betaflight OSD w/ AT7456E
• ESC: TAKER H60_BLS 60A 4IN1 ESC
• VTX: DJI O4 Air Unit Pro Transmission Module
• Camera: DJI O4 Air Unit Pro Transmission Module
• Antenna: DJI O4 Air Unit Pro Antenna
• Connector: XT60
• GPS: Not included
• Motor (6 inch): GEPRC SPEEDX2 2407E 1750KV
• Propeller (6 inch): HQprop 6X3.5X3
• Weight: 465 g ±5g
• Receiver: PNP (Receiver not included)
• Recommended Battery: 6S LiPo 1500mAh - 2000mAh
• Flight Time: 14-19 min

Applications

This FPV drone is ideally suited for freestyle flying, cinematic FPV, aerial photography, and advanced hobbyist use. Its robust construction and high-quality components make it capable of handling demanding maneuvers and capturing smooth, professional-looking footage.

Compatibility

The GEPRC Vapor-D6 O4 Pro PNP is designed for compatibility with the DJI O4 Air Unit Pro system. It requires an external receiver (PNP). Recommended battery is a 6S LiPo 1500mAh - 2000mAh, connected via an XT60 connector.

FAQ

What is the main advantage of the GEPRC Vapor-D6 O4 Pro PNP drone?

The primary advantage is its seamless integration with the DJI O4 Air Unit Pro system, offering superior video transmission and image quality. It also features a durable design with CNC-machined aluminum and silicone dampeners for ultra-smooth video capture, making it ideal for freestyle FPV flying.

Is a receiver included with the GEPRC Vapor-D6 O4 Pro PNP?

No, this model is supplied as a PNP (Plug-N-Play) unit. This means the receiver is not included, allowing you to install your preferred compatible receiver for a customized setup.

What is the recommended battery for the GEPRC Vapor-D6 O4 Pro PNP?

The recommended battery for this drone is a 6S LiPo with a capacity between 1500mAh and 2000mAh. This configuration provides an impressive flight time of 14 to 19 minutes, depending on flying conditions.

What kind of flying is the GEPRC Vapor-D6 O4 Pro PNP best suited for?

The GEPRC Vapor-D6 O4 Pro PNP is best suited for freestyle FPV flying due to its robust frame, powerful motors, and stable flight characteristics. It's also excellent for cinematic FPV applications where smooth, high-quality video capture is essential.

Where can I buy the GEPRC Vapor-D6 O4 Pro PNP and what are the shipping options?

You can buy the GEPRC Vapor-D6 O4 Pro PNP at HTDRONE. We offer fast shipping within Poland. International delivery is available worldwide via DHL, ensuring prompt and reliable service for FPV enthusiasts globally.
