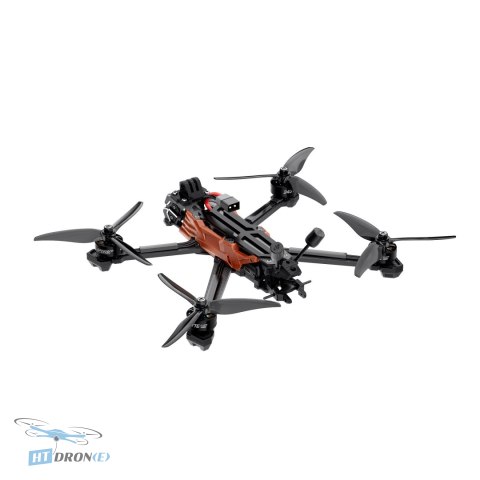

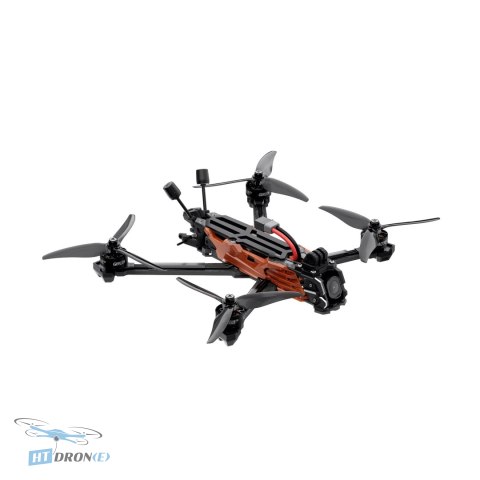

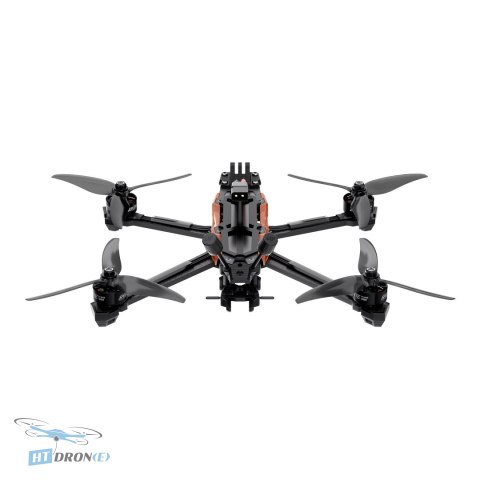

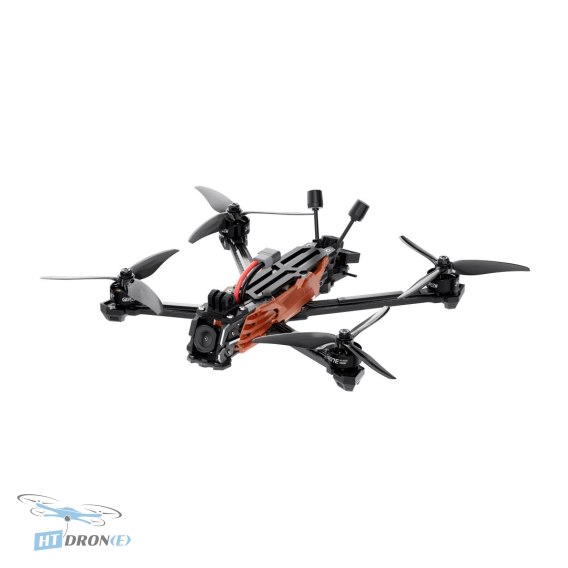

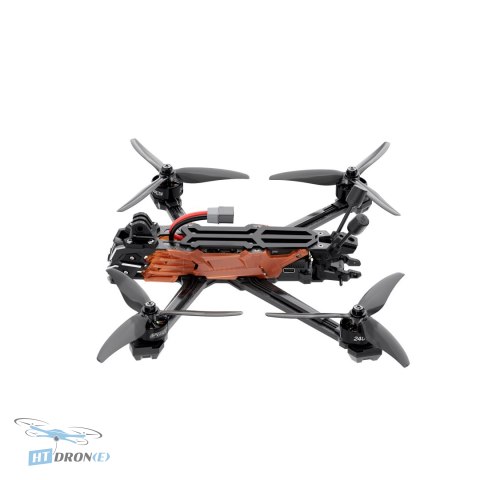

GEPRC Vapor-D6 O4 Pro TBS Nano RX GPS FPV Drone for DJI O4

Introduction

The GEPRC Vapor-D6 O4 Pro is a cutting-edge FPV drone meticulously designed for pilots who demand top-tier performance and seamless integration with the latest DJI O4 Air Unit Pro. This advanced drone is built to deliver exceptional flight control and crystal-clear video, making it an ideal choice for both experienced freestyle enthusiasts and demanding FPV pilots. Its robust construction and advanced features ensure reliability even during aggressive maneuvers.

Key advantages

• Seamless integration with the DJI O4 Air Unit Pro for superior FPV experience.
• High-performance CMOS sensor delivers exceptional image clarity and low-light capabilities.
• CNC-machined aluminum lens housing and silicone dampers significantly reduce vibrations for smoother video.
• Durable, mecha-inspired side panels and a reinforced front edge provide enhanced protection.
• Powerful GEPRC SPEEDX2 2407E 1750KV motors paired with HQprop 6X3.5X3 propellers for dynamic flight.
• Integrated TBS Nano RX receiver and GEP-M10 GPS module for reliable control and navigation.
• Long flight times of 14-19 minutes with a recommended 6S LiPo 1500mAh - 2000mAh battery.
• Comes with a GoPro mount for capturing high-quality aerial footage.

Technical specifications

• Model: Vapor-D6 O4 Pro
• Frame: GEP-Vapor-D6 O4 Pro
• Wheelbase: 274.60 mm
• Top Plate: 2.0 mm
• Middle Plate: 2.0 mm
• Bottom Plate: 2.5 mm
• Arm Thickness: 5.0 mm
• FC: GEP-F722-HD v2
• MCU: STM32F722
• Gyroscope: ICM42688-P (SPI)
• Barometer: YES
• OSD: Betaflight OSD w/AT7456E
• ESC: TAKER H60_BLS 60A 4IN1 ESC
• VTX: DJI O4 Air Unit Pro Transmitter Module
• Camera: DJI O4 Air Unit Pro Transmitter Module
• Antenna: DJI O4 Air Unit Pro Antenna
• Connector: XT60
• GPS: GEP-M10
• 6-inch Motor: GEPRC SPEEDX2 2407E 1750KV
• 6-inch Propeller: HQprop 6X3.5X3
• Weight: 465 g±5g
• Receiver: TBS Nano RX
• Recommended Battery: 6S LiPo 1500mAh - 2000mAh
• Flight Time: 14-19 min

Applications

This FPV drone is ideally suited for freestyle flying, cinematic FPV, and general aerial videography. Its robust design and advanced features make it capable of handling aggressive flight maneuvers while capturing smooth, high-quality footage. The integrated GPS enhances navigation and return-to-home capabilities, making it versatile for various FPV applications.

Compatibility

The GEPRC Vapor-D6 O4 Pro is specifically designed for compatibility with the DJI O4 Air Unit Pro. It utilizes a TBS Nano RX receiver for control and is powered by a 6S LiPo battery (1500mAh - 2000mAh recommended), connected via an XT60 connector. The included GoPro mount allows for easy attachment of action cameras.

FAQ

What makes the GEPRC Vapor-D6 O4 Pro ideal for FPV pilots?

The GEPRC Vapor-D6 O4 Pro is designed for high-performance FPV flight, featuring seamless integration with the DJI O4 Air Unit Pro, a powerful CMOS sensor for excellent image quality, and a robust build with CNC-machined aluminum parts to minimize vibrations and ensure durability.

What are the key technical advantages of the GEPRC Vapor-D6 O4 Pro?

Key advantages include its dedicated DJI O4 Air Unit Pro compatibility, a high-clarity CMOS sensor, vibration reduction through aluminum lens housing and silicone dampers, and powerful GEPRC SPEEDX2 motors. It also features a TBS Nano RX receiver and GEP-M10 GPS.

What is the recommended battery and flight time for the GEPRC Vapor-D6 O4 Pro?

The recommended battery for the GEPRC Vapor-D6 O4 Pro is a 6S LiPo with a capacity of 1500mAh to 2000mAh. This configuration allows for an impressive flight time of approximately 14 to 19 minutes.

Can I record high-quality video with the GEPRC Vapor-D6 O4 Pro?

Yes, the drone is equipped with the DJI O4 Air Unit Pro, known for its high-definition video transmission. Additionally, it includes a GoPro mount, allowing you to attach an action camera for capturing professional-grade aerial footage.

Where can I buy the GEPRC Vapor-D6 O4 Pro FPV drone with fast delivery?

You can buy the GEPRC Vapor-D6 O4 Pro FPV drone at HTDRONE, a specialized FPV parts store based in Poland. We offer fast shipping within Poland and reliable worldwide delivery via DHL for international orders.
