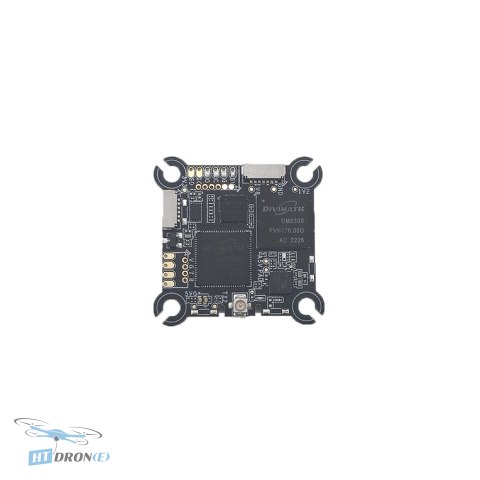

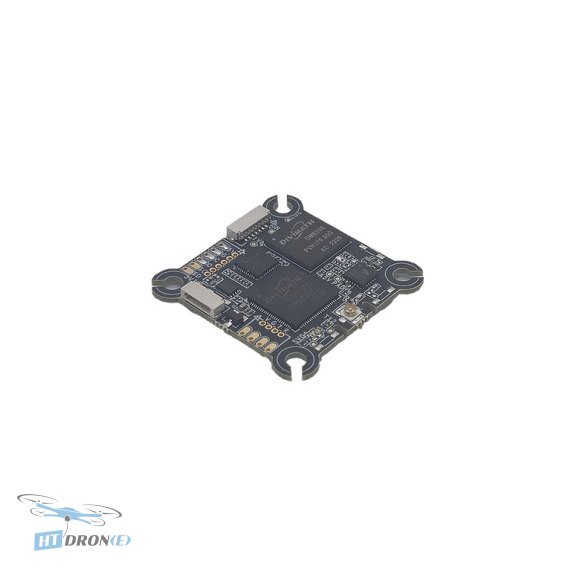

HDZero ECO VTX 720p 60fps Digital FPV Transmitter for Ultra-Light Drones

Introduction

The HDZero ECO VTX is engineered to make high-quality digital FPV accessible to more pilots. It provides an affordable, lightweight, and robust solution compared to traditional analog video systems. Experience the renowned HDZero digital video performance, featuring stable color reproduction and smooth 720p progressive scan video with minimal latency.

Key Advantages

• Affordable digital FPV solution for wider accessibility.
• Ultra-lightweight design ideal for Tiny Whoops and micro drones.
• Crisp 720p HD video resolution at 60fps for clear visuals.
• Low latency ensures responsive flight control.
• Durable construction for reliable performance.
• Compact size and mounting options suit small builds.
• Stable color reproduction for realistic FPV experience.
• 5.8GHz frequency for robust video transmission.

Technical Specifications

• Frequency: 5.8G
• Resolution (Default): 1280x720 @ 60fps
• RF Power: 25mW / 200mW
• RF Connector: U.FL
• Interface: HD Composite Connector
• Size: 32.4x32.5 mm (29x29 mm internal)
• Weight: 4.5 grams (VTX only, 4mm thickness without shielding)
• Power Consumption: 1000mA @ 5V
• Power Input: 1S-3S LiPo
• Mounting: 25.5 x 25.2 mm M2 soft mount
• Included Accessories: Power/Uart Cable, 4x M3 to M2 rubber grommets

Applications

This VTX is perfectly suited for FPV drones, particularly ultra-light builds, Tiny Whoops, racing drones, freestyle quads, and any application where weight and size are critical factors without compromising video quality. It's an excellent choice for pilots transitioning from analog FPV to digital.

Compatibility

The HDZero ECO VTX supports 1S-3S LiPo power input and features a standard M2 soft mounting pattern (25.5 x 25.2 mm). It utilizes a U.FL RF connector and an HD Composite Connector for video interface. The included Power/Uart cable facilitates easy integration with flight controllers.

FAQ

What is the HDZero ECO VTX and who is it for?

The HDZero ECO VTX is a digital FPV video transmitter designed to offer high-quality 720p HD video with low latency. It's specifically targeted at pilots looking for a lightweight and affordable digital solution, especially those building ultra-light FPV drones like Tiny Whoops.

What are the key technical specifications of the HDZero ECO VTX?

The HDZero ECO VTX operates on the 5.8G frequency, offers a default resolution of 1280x720 @ 60fps, and has switchable RF power of 25mW or 200mW. It features a U.FL RF connector, weighs approximately 4.5 grams, and supports 1S-3S power input.

How does the HDZero ECO VTX compare to analog VTX systems?

The HDZero ECO VTX provides a significant upgrade over analog systems with its stable color reproduction, progressive scan 720p video, and consistently low latency. It offers a clearer, more reliable visual feed essential for precise FPV flying.

What is the weight of the HDZero ECO VTX system?

The VTX unit itself weighs around 4.5 grams. When combined with the Eco camera (approx. 1.8g) and a dipole antenna (approx. 0.2g), the entire Eco system weighs just about 6.3 grams, making it exceptionally suitable for weight-critical builds.
