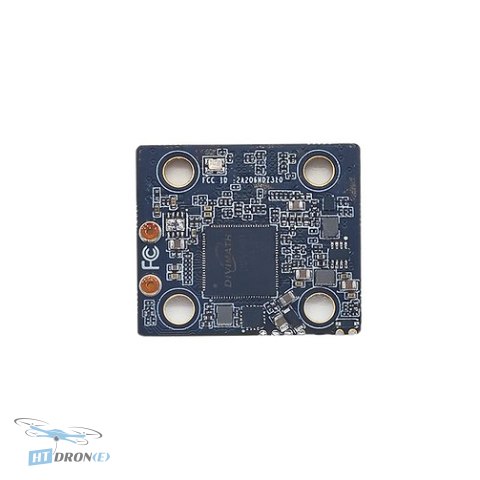

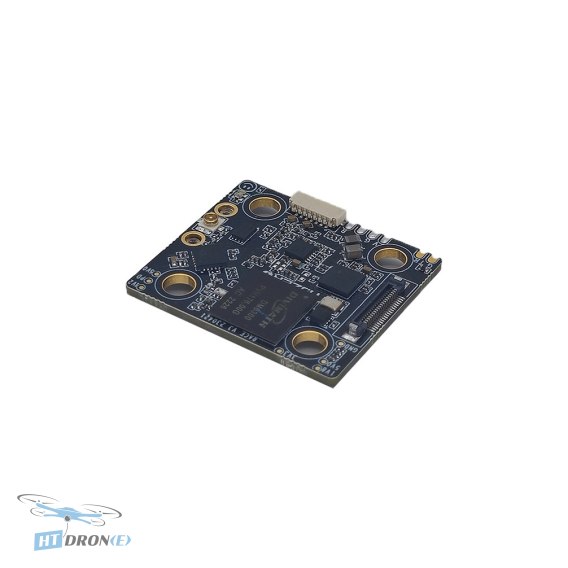

HDZero Race V3 5.8G 25-200mW Digital FPV VTX for Racing Drones

Introduction

The HDZero Race V3 VTX is a cutting-edge digital video transmitter engineered specifically for the demands of FPV racing. As the third generation of HDZero's digital FPV offerings, it delivers superior video clarity and reliability. This VTX is built to withstand the rigors of racing while providing pilots with a seamless, high-definition visual feed. Its robust construction and advanced features make it the best choice for serious FPV racers seeking a competitive edge.

Key advantages

• High-definition digital video transmission for unparalleled clarity.
• Supports multiple resolutions: 540p90, 720p60, and 1080p30.
• Compact and lightweight design (5.5g, 28x32x5mm) ideal for tight builds.
• Durable construction with a 1.6mm PCB and protective glue coating.
• Solder-free installation simplifies setup and maintenance.
• Switchable power output (25mW/200mW) for versatile performance.
• Secure u.FL antenna connector for reliable signal.
• Wide voltage input range (4-12V) for broad compatibility with flight controllers.

Technical specifications

• VTX Model: HDZero Race V3
• Frequency: 5.8Ghz (5.725-5.850GHz)
• Power Output: Switchable 25mW, 200mW
• Video Resolutions: 540p90, 720p60, 1080p30
• Power Input: 4-12V (BEC 5V 1.5A compatible or FC with HD VTX plug)
• Dimensions: 32x28x5mm
• Weight: 5.5 grams
• Wire Length: 40mm
• Mounting Pattern: 20x20mm with M4 to M3 grommets
• Antenna Interface: Secured u.FL
• Power Consumption: 25mW: 5.0W, 200mW: 5.8W
• PCB Thickness: 1.6mm
• Package Contents: VTX-R3 board with pre-soldered harness, 4x M4 to M3 grommets, 4x screws, 1x metal rod

Applications

This VTX is primarily designed for FPV racing drones. Its high-definition video output and low latency make it suitable for competitive racing, freestyle flying, and high-speed drone pursuits where clear and reliable video feedback is crucial. It can also be used in other FPV applications requiring high-quality video transmission.

Compatibility

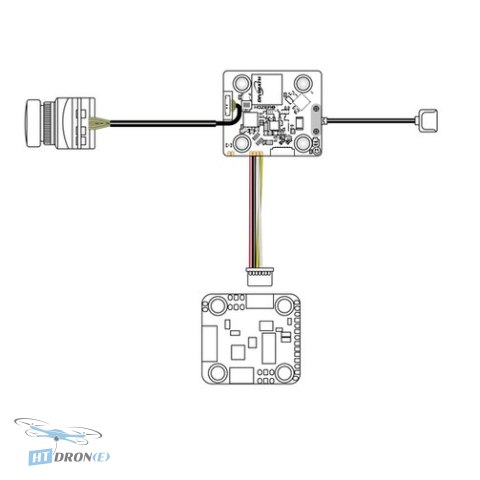

The HDZero Race V3 VTX is compatible with flight controllers featuring an HD VTX plug or those with a 5V 1.5A BEC. It uses a standard u.FL antenna connector and features a 20x20mm mounting pattern with included grommets to adapt for M3 mounting hardware. The solder-free harness ensures easy integration with compatible HD-ready FCs.

FAQ

What makes the HDZero Race V3 VTX suitable for FPV racing?

The HDZero Race V3 VTX is designed for FPV racing due to its high-definition digital video output (up to 1080p30), low latency, compact and lightweight design, and durable construction. The switchable 25-200mW power output allows pilots to adapt to different racing environments.

What resolutions does the HDZero Race V3 VTX support?

The HDZero Race V3 VTX supports multiple high-definition video resolutions including 540p90, 720p60, and 1080p30, ensuring a clear and detailed video feed for pilots.

Is the HDZero Race V3 VTX easy to install?

Yes, the HDZero Race V3 VTX features a solder-free installation design. It comes with a pre-soldered harness that connects directly to compatible HD-ready flight controllers, simplifying the setup process.

What is the power input range for the HDZero Race V3 VTX?

The HDZero Race V3 VTX can be powered by a BEC ranging from 4V up to 12V. This wide input range ensures compatibility with most flight controllers that have a 5V 1.5A regulator or include a dedicated HD VTX power plug.
