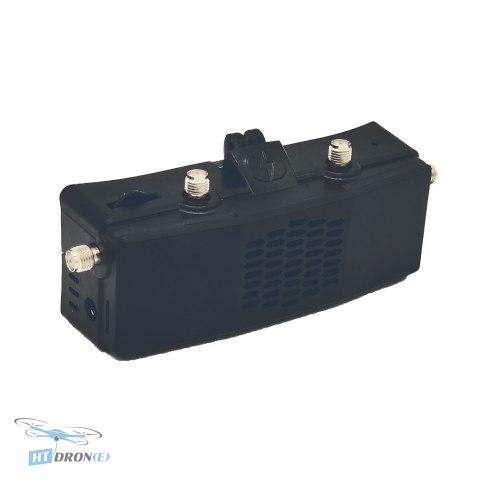

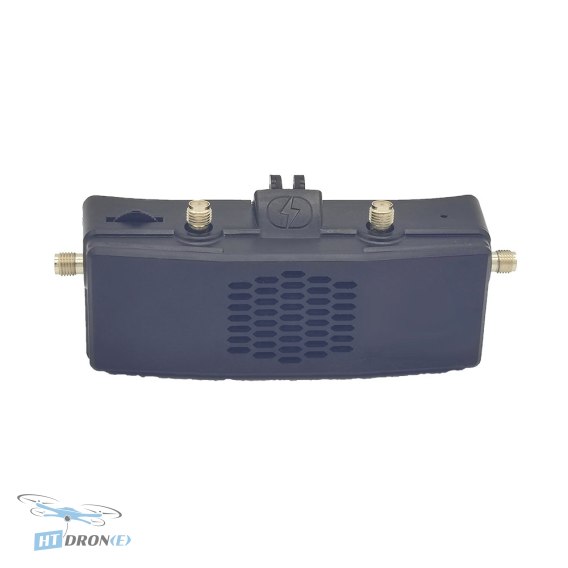

HDZero VRX 4 Digital HD Video Receiver Module for FPV Goggles - 720p 60fps

Introduction

The HDZero VRX 4 is a state-of-the-art digital HD video receiver module designed to elevate your FPV (First Person View) drone experience. Operating on the 5.8GHz frequency, it delivers stunning 720p resolution at 60 frames per second, ensuring smooth and immersive video transmission from your HDZero/Shark Byte VTX. This module is the perfect upgrade for pilots seeking superior video quality and enhanced features for their FPV goggles.

Key Advantages

• Crystal-clear 720p 60fps HD video reception for immersive FPV flights.
• Wide 5.8GHz frequency band compatibility with HDZero/Shark Byte VTX systems.
• Front-mounted design utilizing included fan shroud mount for easy installation on compatible goggles.
• Four SMA connectors allow for versatile antenna configurations tailored to your flight environment.
• Real-Time Clock (RTC) automatically timestamps DVR recordings for easier footage review.
• Integrated ambient audio recording captures crucial sound like lap times and pilot commentary.
• ELRS Backpack expansion port enables easy integration of Express LRS features like auto channel switching.
• Compatible with any FPV goggles featuring an HDMI input, offering broad usability.

Technical Specifications

• Model: HDZero VRX 4
• SKU: HDZ3500
• Frequency: 5.725-5.850GHz
• Default Resolution: 1280x720 60fps
• RF Sensitivity: 105dBm
• RF Connector: 4 x SMA
• Video Connector: HDMI
• Additional Features: Real-Time Clock, ELRS Backpack Expansion Plug, Audio Recording
• Dimensions: 105mm x 47mm x 30mm
• Weight: 85g
• Power Consumption: 12W
• Power Input: 7V-26V (2S-6S)
• Mounting: Replaces goggle fan shroud

Applications

This HDZero VRX 4 module is ideal for FPV drone enthusiasts, competitive racers, freestyle pilots, and anyone looking to achieve the highest quality video link for their drone operations. It's suitable for both outdoor flying and indoor FPV sessions, providing a reliable and high-definition video feed.

Compatibility

The HDZero VRX 4 is compatible with any FPV goggles that support HDMI input. It operates on a wide power input range of 7V-26V (2S-6S). Please verify your goggle's input voltage range before connecting to avoid damage. The module uses a standard fan shroud mounting system.

FAQ

What is the HDZero VRX 4?

The HDZero VRX 4 is a digital HD video receiver module that operates at 5.8GHz, providing 720p resolution at 60fps. It's designed to connect to FPV goggles with HDMI input and work with HDZero/Shark Byte VTX units.

How do I mount the HDZero VRX 4 to my FPV goggles?

The HDZero VRX 4 is designed to mount on the front of compatible FPV goggles, using the included fan shroud mount. You'll typically remove the existing fan shroud and attach the VRX module in its place.

What are the main advantages of using the HDZero VRX 4?

Key advantages include its high-definition 720p 60fps video quality, flexible antenna setup with four SMA connectors, built-in DVR timestamping via RTC, and ambient audio recording. It also features an ELRS Backpack expansion port.

Is the HDZero VRX 4 compatible with all FPV goggles?

The HDZero VRX 4 is compatible with any FPV goggles that feature an HDMI input. Ensure your goggles support HDMI input before purchasing. It also supports a wide power input range of 7V-26V (2S-6S).

Where can I buy the HDZero VRX 4 with fast delivery?

You can buy the HDZero VRX 4 at HTDRONE, a specialized FPV drone parts store based in Poland. We offer fast shipping within Poland and reliable worldwide delivery via DHL.
