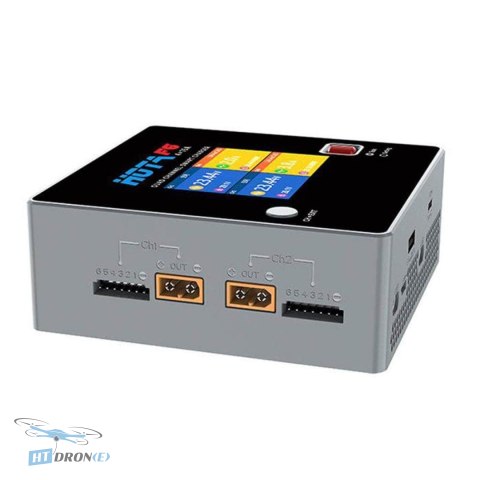

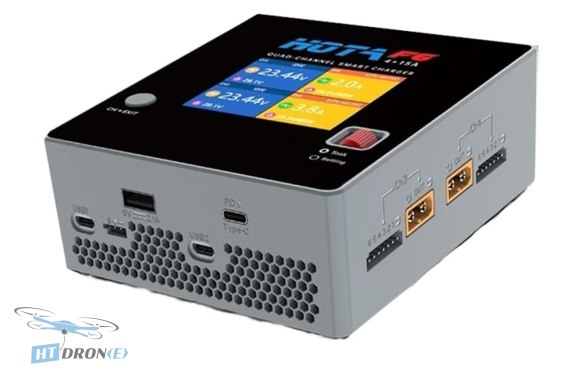

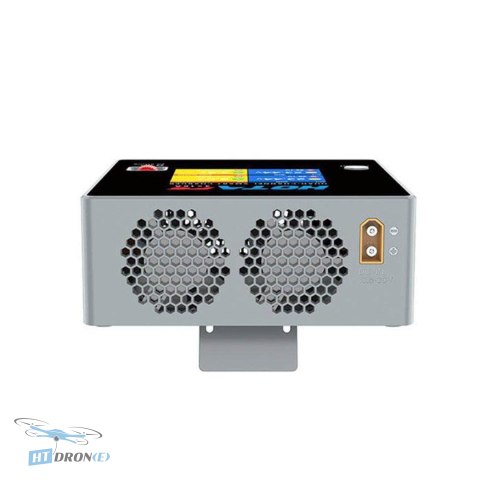

HOTA F6 4x250W 15A 1-6S DC Multi-Battery Charger for FPV Drones

Introduction

The HOTA F6 is a compact yet powerful 4-channel DC charger designed for FPV drone enthusiasts and professionals. It offers simultaneous charging for up to four batteries, significantly reducing downtime and keeping you in the air longer. With advanced safety features and an intuitive user interface, the HOTA F6 provides a reliable and efficient charging solution for a wide range of battery types.

Key Advantages

• Simultaneous Multi-Battery Charging: Power up to four batteries at once, maximizing your flying time.
• High Power Output: Each channel supports 250W charging (up to 500W total with 23V input), with a 15A maximum charge current.
• Versatile Battery Compatibility: Supports LiHv, LiPo, LiFe, Lilon, Lixx (1-6S), NiZn, NiCd, NiMH (1-16S), Smart batteries (1-6S), and Lead-Acid (1-12S).
• Bright IPS Display: A 2.8-inch, 320x240 resolution IPS screen offers excellent readability, even in direct sunlight.
• Advanced Safety Protections: Equipped with SCP, OLP, OVP, OTP, and OCP to ensure safe charging operations.
• User-Friendly Interface: Features a simple channel selection button and a shuttle button for easy navigation.
• Firmware Updates: Includes a micro USB port for convenient software updates.
• Dual USB Outputs: Offers both micro USB (5V/2.1A) and standard USB-A (up to 45W) for charging other devices.

Technical Specifications

• Model: HOTA F6
• Input Voltage: DC 10.5-30 V
• Charge Current: 4 x 0.1-15 A
• Regenerative Discharge Current: 4 x 0.1-15 A
• Total Charge Current: 0.1-22 A
• Balance Current: 4 x 1000 mA
• Discharge Current: 4 x 0.1~3 A
• Charge Power: 4 x 250 W (requires 23V input)
• Total Charge Power: 2 x 500 W (requires 23V input)
• Internal Discharge Power: 4 x 12 W (4 x 6 W at balance port)
• Regenerative Discharge Power: 4 x 250 W (1000 W total)
• Lithium Battery Types: LiHv/LiPo/LiFe/Lilon/Lixx: 1-6S
• Nickel Battery Types: NiZn/NiCd/NiMH: 1-16S
• Smart Battery: 1-6S
• Lead-Acid Battery (Pb): 1-12S (2-24 V)
• Eneloop Battery: 1-16S
• Micro USB Output: 5 V/2.1 A
• Standard USB Output: Max 45 W
• Connector Type: XT60
• Screen Size: 2.8" IPS 320x240 260,000 colors (sunlight readable)
• Dimensions: 115x121x46 mm
• Net Weight: 475 g

Applications

The HOTA F6 charger is ideal for charging batteries used in FPV racing drones, freestyle drones, UAVs for aerial photography and videography, and other RC hobby applications. Its multi-channel capability makes it suitable for users with multiple batteries or for charging packs for a team.

Compatibility

Compatible with a wide range of battery chemistries including LiHv, LiPo, LiFe, Lilon, Lixx, NiZn, NiCd, NiMH, Smart Batteries, and Lead-Acid batteries. Features XT60 connector type and standard USB outputs for charging external devices.

FAQ

What is the HOTA F6 charger best suited for?

The HOTA F6 charger is best suited for FPV drone pilots who need to charge multiple batteries simultaneously and efficiently. Its high power output and versatility make it ideal for both hobbyists and serious racers.

What types of batteries can the HOTA F6 charger support?

This charger supports a wide range of battery types including LiHv, LiPo, LiFe, Lilon, Lixx (1-6S), NiZn, NiCd, NiMH (1-16S), Smart Batteries (1-6S), and Lead-Acid batteries (1-12S).

What is the maximum charging power per channel?

Each of the four channels on the HOTA F6 can deliver up to 250W of charging power, provided the input voltage is 23V or higher. The total charging power can reach up to 500W when using two channels simultaneously with sufficient input power.

Does the HOTA F6 charger have safety features?

Yes, the HOTA F6 charger is equipped with multiple safety protections, including SCP (Short Circuit Protection), OLP (Overload Protection), OVP (Over Voltage Protection), OTP (Over Temperature Protection), and OCP (Over Current Protection) to ensure safe and reliable operation.

Where can I buy the HOTA F6 charger with fast delivery?

You can buy the HOTA F6 charger at HTDRONE. We offer fast shipping within Poland and reliable delivery to Ukraine via Nova Poshta. International customers can benefit from worldwide shipping via DHL.
