Hawkeye Captain X 10.2" Android FPV Monitor for Ground Stations & Aerial Video

Introduction

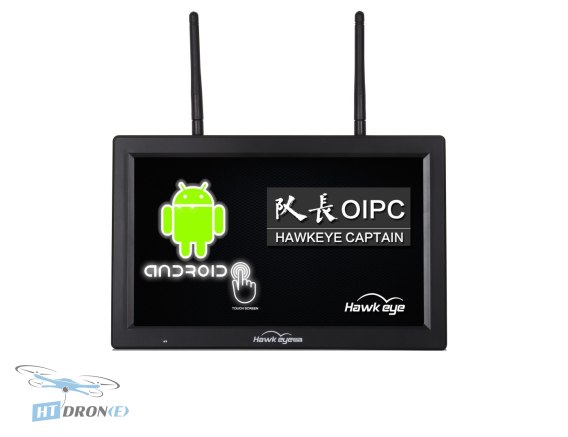

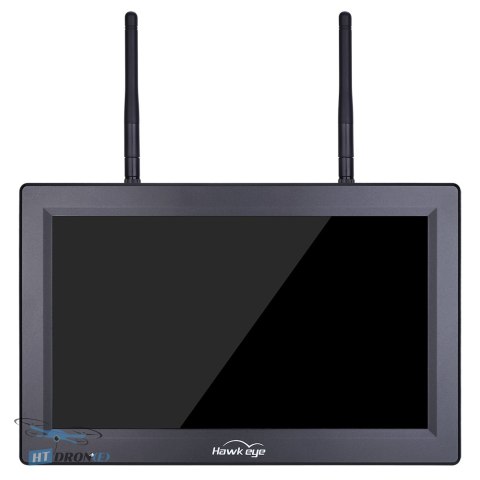

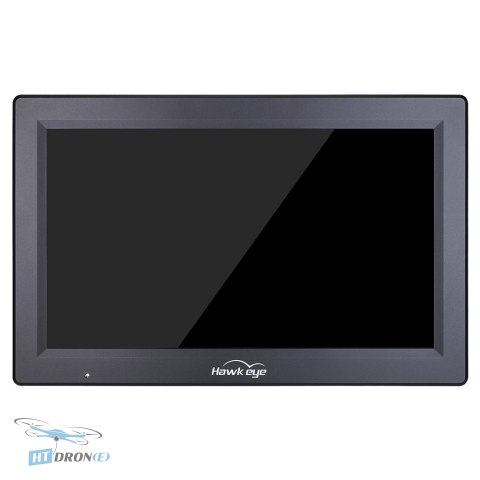

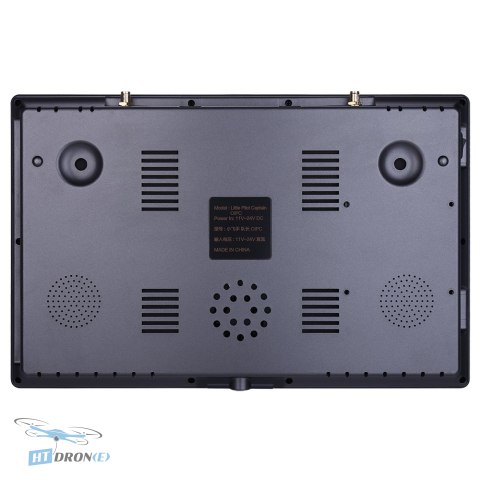

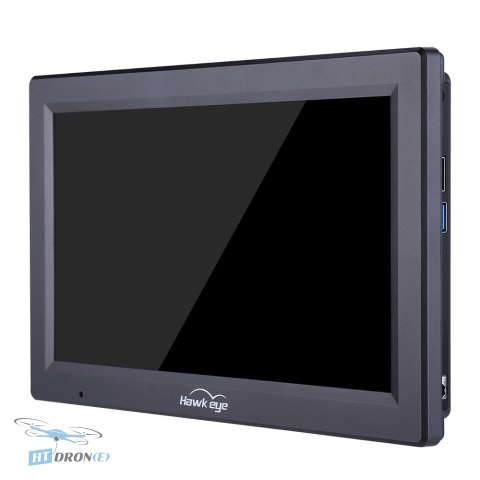

The Hawkeye Captain X 10.2" FPV Monitor is a high-performance, large-screen display engineered for demanding FPV operations, ground station setups, and aerial video monitoring. Its robust Android system and versatile connectivity options make it an ideal choice for professional pilots and enthusiasts seeking a superior visual experience. This monitor solves the need for a clear, bright, and feature-rich display capable of handling various FPV video signals and external inputs.

Key Advantages

• Vast 10.2-inch IPS display with wide viewing angles for clear visibility.
• High brightness of 1000 nits ensures excellent performance even in direct sunlight.
• Integrated Android system (4GB RAM, 32GB storage) for enhanced functionality and app support.
• Supports microSD cards up to 256GB for convenient DVR recording.
• HDMI output up to 1080p 60 FPS for external video sources or recording.
• Versatile USB video input and OTG output for seamless compatibility with DJI Goggles.
• Built-in Wi-Fi and Ethernet (RTL8812AU) for network connectivity.
• Wide input voltage range (3S-6S LiPo / 10-26V DC) for flexible power options.

Technical Specifications

• Display Type: IPS LCD
• Resolution: 1024 x 600
• Backlight: LED
• Brightness: 1000 nits
• Aspect Ratio: 16:9
• Response Time: 10 ms
• Touchscreen: Capacitive
• Operating System: Android
• RAM: 4 GB
• Internal Storage: 32 GB
• MicroSD Support: Up to 256 GB
• Input Voltage: DC 10-26V
• Battery Support: 3S-6S LiPo
• Current Consumption: 780 mA @ 12V, 380 mA @ 26V
• HDMI Output: Up to 1080p @ 60 FPS
• USB Port: DJI Goggles V1 / V2 Video Input
• OTG/Mouse Port: Type-C / OTG for DJI Goggles 2 / 3
• Pre-installed Apps: FPV Out (DJI Goggles V1/V2), DJI Fly (DJI Goggles G2/G3), PixelPilot (OpenIPC)
• Networking: RTL8812AU Network Card, 2.4 GHz Wi-Fi
• Antennas: 2 x 5.8G SMA
• Audio Output: 3.5mm Headphone Jack
• Dimensions: 300 x 196 x 60 mm
• Weight: Approx. 1 kg

Applications

This versatile monitor is perfect for a wide range of applications including professional FPV drone racing, cinematic aerial videography, long-range FPV flights, drone inspection services, RC vehicle monitoring, and as a general-purpose display for UAV ground control stations. Its Android capabilities also allow for custom app installations, expanding its utility.

Compatibility

The Hawkeye Captain X monitor offers broad compatibility. It supports 3S-6S LiPo batteries and DC 10-26V input. It features USB video input for DJI Goggles V1/V2 and OTG support for DJI Goggles 2/3. HDMI output is available for external devices, and it includes a 3.5mm headphone jack for audio.

FAQ

What is the Hawkeye Captain X 10.2" Android FPV Monitor best suited for?

The Hawkeye Captain X 10.2" Android FPV Monitor is ideal for FPV pilots, ground station operators, and professionals involved in aerial video monitoring. Its large, bright display and Android capabilities make it perfect for racing, cinematic flights, and UAV operations.

Can this monitor be used outdoors in bright sunlight?

Yes, the monitor features a high brightness of 1000 nits, making it exceptionally suitable for outdoor use even in direct sunlight. The 10.2-inch IPS display ensures clear visibility from various angles.

What are the connectivity options for the Hawkeye Captain X monitor?

It supports HDMI input/output up to 1080p 60 FPS, USB video input for DJI Goggles V1/V2, and Type-C/OTG for DJI Goggles 2/3. It also includes built-in Wi-Fi and an Ethernet port for network connectivity.

Does the monitor support DVR recording?

Yes, the monitor has a built-in DVR function and supports microSD cards up to 256GB, allowing you to record your FPV video feed directly.

Where can I buy the Hawkeye Captain X 10.2" Android FPV Monitor with fast delivery?

You can buy the Hawkeye Captain X 10.2" Android FPV Monitor at HTDRONE. We offer fast shipping within Poland and reliable delivery to Ukraine via Nova Poshta. International orders are shipped quickly via DHL.
