Hawkeye Little Pilot 4 5-inch Grey FPV Monitor with DVR and Dual Receivers

Introduction

The Hawkeye Little Pilot 4 is a cutting-edge 5-inch FPV monitor specifically engineered for RC quadcopter enthusiasts. It integrates essential features like a built-in DVR and dual diversity receivers, providing a seamless and high-quality FPV viewing experience. This monitor is designed to enhance your piloting precision and enjoyment, whether you're racing, freestyle flying, or performing aerial inspections.

Key Advantages

• Integrated DVR: Record your flights directly with resolutions up to 720*288/720*240 for later review.
• Dual Diversity Receivers: Equipped with two 5.8GHz 48CH receivers for superior signal reception and reduced interference.
• Long Battery Life: Features an internal 5000 mAh battery providing approximately 2.5 hours of continuous operation.
• High Brightness Display: A 700 lux (adjustable to 450 lux) LED backlit screen ensures excellent visibility even in bright sunlight.
• User-Friendly Operation: Supports automatic/manual channel search without DIP switches for quick setup.
• Wide Compatibility: Works with PAL/NTSC/Auto systems and supports various aspect ratios (16:9 / 4:3).
• Compact and Lightweight: Weighing only 220g with dimensions of 12.8x8.3x1.6 cm, it's ideal for portable setups.

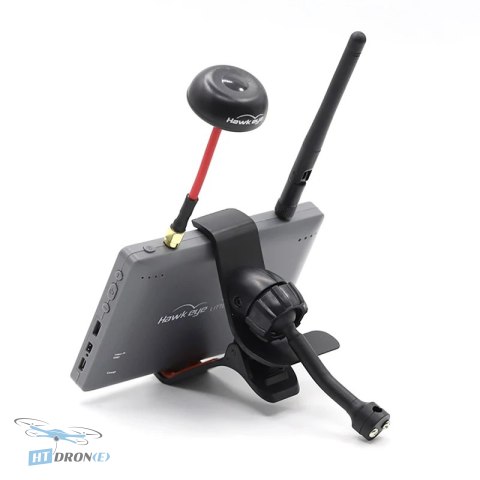

• Included Accessories: Comes with a mounting bracket, mushroom antenna, and video input cable for immediate use.

Technical Specifications

• Color: Grey
• Display Resolution: 800x480
• Backlight: LED
• Brightness: 700 / 450 lux (adjustable)
• Aspect Ratio: 16:9 / 4:3
• Response Time: 10ms
• Color System: PAL/NTSC
• Battery: 5000 mAh, approx. 2.5 hours runtime
• Black/Blue Screen: No
• Receivers: 2 x 5.8GHz
• HDMI Input: No
• HDMI Output: No
• Video Input/Output: Yes
• Antenna Connector: RP-SMA to SMA adapter included
• Frequency Band: 5.8 GHz
• Channels: 48CH (6 Groups: A, B, C, D, E, F)
• TV System: PAL/NTSC/Auto
• Power Input: USB-C, 5V
• Auto Channel Search: Yes
• 5.8G Sensitivity: -94dBm
• DVR Resolution: PAL: 720*288, NTSC: 720*240
• SD Card Support: 8-32GB C10 (not included)
• Dimensions: 12.8 x 8.3 x 1.6 CM
• Net Weight: 220g

Applications

This versatile FPV monitor is ideal for a wide range of applications including FPV drone racing, freestyle flying, aerial photography, video production, remote-controlled vehicle operation, and hobbyist drone use. Its integrated DVR is perfect for recording flight footage for analysis or sharing.

Compatibility

The monitor supports standard PAL and NTSC video signals and can be powered via USB-C (5V). It includes a video input cable for connecting to your FPV system. The RP-SMA connector ensures compatibility with most standard FPV antennas. An SD card (C10, 8-32GB) is required for DVR functionality (sold separately).

FAQ

What is the Hawkeye Little Pilot 4 monitor best suited for?

The Hawkeye Little Pilot 4 is best suited for FPV drone pilots, including those involved in racing, freestyle, and general hobby use. Its compact size, integrated DVR, and dual receivers make it an excellent choice for enhancing your flight experience and recording footage.

How long does the battery last on the Hawkeye Little Pilot 4?

The monitor is equipped with an integrated 5000 mAh battery that provides approximately 2.5 hours of operating time on a single charge, ensuring extended use during your FPV sessions.

Does the Hawkeye Little Pilot 4 support different video standards?

Yes, the monitor supports PAL, NTSC, and Auto video standards, ensuring compatibility with a wide range of FPV cameras and systems. It also offers adjustable aspect ratios of 16:9 or 4:3.

Can I record my FPV flights with this monitor?

Absolutely. The Hawkeye Little Pilot 4 features a built-in DVR that can record your flights at resolutions of 720*288 (PAL) or 720*240 (NTSC). A C10 SD card (8-32GB) is required and sold separately.

Where can I buy the Hawkeye Little Pilot 4 monitor with reliable delivery?

You can buy the Hawkeye Little Pilot 4 monitor at HTDRONE, your specialized FPV drone parts store. We offer fast shipping within Poland and reliable worldwide delivery via DHL for international orders.
