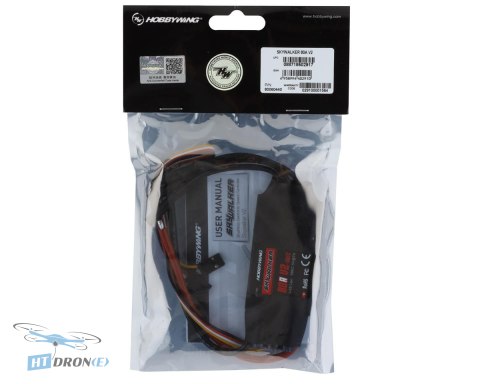

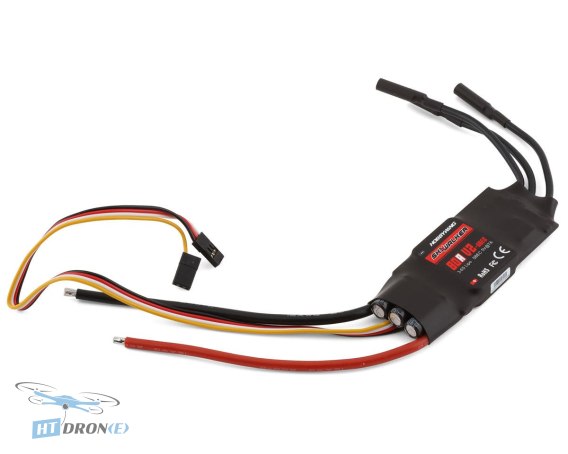

Hobbywing SKYWALKER 80A V2 ESC for RC Aircraft and FPV Drones

Introduction

The Hobbywing SKYWALKER 80A V2 ESC is a cutting-edge 80 Amp brushless electronic speed controller specifically designed to maximize the potential performance of your aerial applications. Built for demanding RC aircraft and FPV drone use, this ESC offers a blend of high power output, advanced technology, and robust protection features to ensure reliable and efficient operation. If you're looking to enhance your drone's capabilities or ensure stable power delivery for your RC plane, the Skywalker 80A V2 is an excellent choice.

Key Advantages

• High-Performance Microprocessor: Features a powerful 96MHz bit microprocessor for rapid processing and precise control.
• DEO Technology: Enhances throttle response and driving efficiency while significantly reducing ESC operating temperature.
• Programmable Features: Includes a separate programming cable for easy ESC configuration using an LED programmer (sold separately).
• Effective Braking Modes: Offers Normal and Reverse braking modes to shorten landing distance for aircraft.
• Search Mode: Helps locate your aircraft with audible signals if it lands in complex environments.
• Comprehensive Safety Protections: Equipped with multiple safeguards including startup, ESC thermal, capacitor thermal, over-current, overload, abnormal input voltage, and throttle signal loss protection.
• Switchmode BEC: Provides a stable 5V @ 7A output for powering your onboard electronics.
• Robust Construction: Designed with quality components and appropriate wiring for reliable performance.

Technical Specifications

• Model: 80A V2
• Input Voltage: 3-6S LiPo
• BEC Output: 5V @ 7A (Switchmode)
• Continuous Current: 80A
• Peak Current: 100A
• Dimensions (L x W x H): 85x36x9mm
• Weight: 79g
• Input Wire Gauge: 12AWG
• Output Wire Gauge: 14AWG
• Output Connectors: 4.0mm female bullet connectors

Applications

This ESC is perfectly suited for a wide range of aerial applications including FPV racing drones, freestyle FPV setups, RC airplanes, and general UAV (Unmanned Aerial Vehicle) platforms requiring reliable and powerful speed control. Its features also make it suitable for hobbyists looking for enhanced performance and safety in their models.

Compatibility

Compatible with 3-6S LiPo batteries. Features standard 4.0mm female bullet connectors for easy integration with brushless motors. The 5V 7A Switchmode BEC output is suitable for powering most common flight controllers, receivers, and servos.

FAQ

What is the Hobbywing SKYWALKER 80A V2 ESC best suited for?

The Hobbywing SKYWALKER 80A V2 ESC is best suited for demanding aerial applications such as FPV racing drones, freestyle FPV setups, and RC airplanes. Its high-performance capabilities and robust features make it ideal for users seeking reliable and efficient power control.

What are the main advantages of the DEO Technology in this ESC?

DEO (Driving Efficiency Optimization) Technology significantly improves throttle response and driving efficiency. It also helps to reduce the operating temperature of the ESC, contributing to its longevity and consistent performance during flight.

Does the Hobbywing SKYWALKER 80A V2 ESC have safety features?

Yes, the Skywalker 80A V2 ESC includes multiple essential safety features. These protect against startup issues, over-current, thermal overload (ESC and capacitor), abnormal input voltage, and loss of throttle signal, ensuring the safety of your electronics.

What is the input voltage range for the Hobbywing SKYWALKER 80A V2 ESC?

The Hobbywing SKYWALKER 80A V2 ESC supports an input voltage range of 3S to 6S LiPo batteries. This versatility allows it to be used with a wide variety of power systems common in the FPV and RC aircraft hobby.

Where can I buy the Hobbywing SKYWALKER 80A V2 ESC with fast delivery?

You can buy the Hobbywing SKYWALKER 80A V2 ESC at HTDRONE. We are based in Poland and offer fast international delivery via DHL, ensuring you receive your order quickly for your next build or repair.
