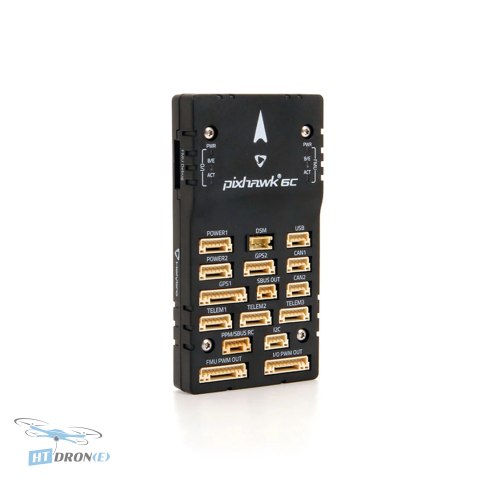

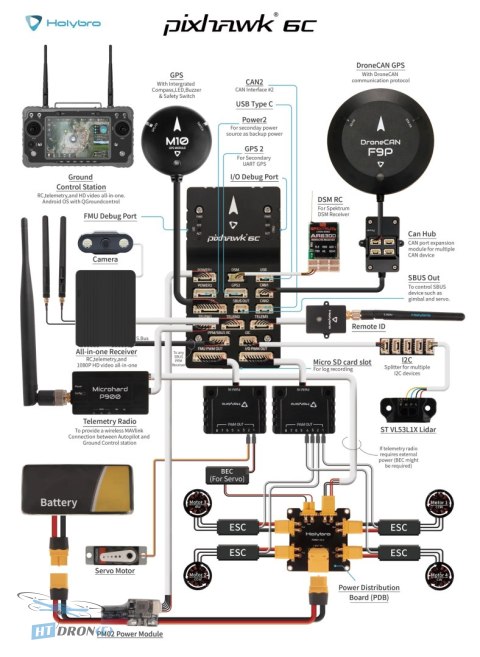

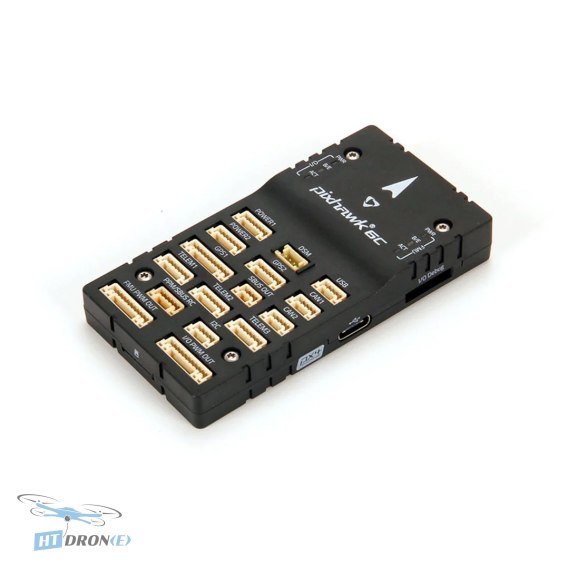

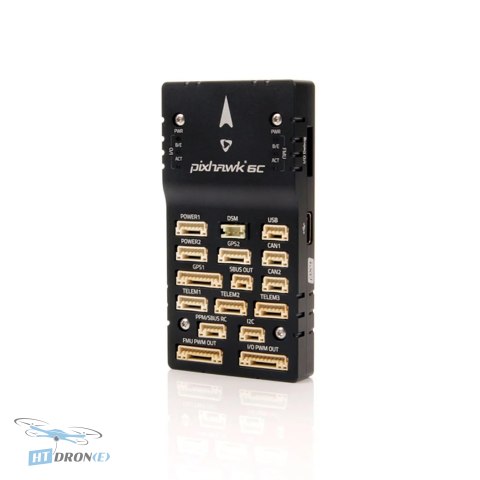

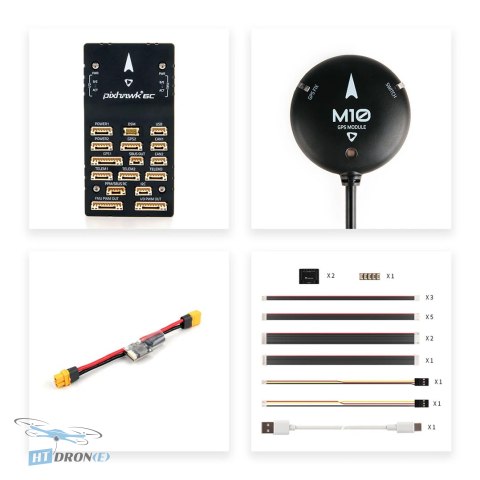

Holybro Pixhawk 6C Flight Controller with Aluminum Case, PM02-12S & M10 GPS

Introduction

The Pixhawk 6C is the latest evolution in the successful Pixhawk flight controller family, built upon the open Pixhawk FMUv6C standard and connector standard. This advanced flight controller comes pre-installed with PX4 Autopilot, offering a robust platform for autonomous vehicle control. Designed for both academic research and commercial applications, the Pixhawk 6C provides unparalleled flexibility and reliability for a wide range of UAV projects.

Key Advantages

• High-performance STM32H743 H7 processor operating up to 480 MHz for demanding computations.
• Durable and sleek aluminum case for enhanced protection and a professional look.
• Redundant Inertial Measurement Units (IMUs) from Bosch® & InvenSense® ensure flight stability and data integrity.
• Advanced vibration isolation system effectively filters high-frequency vibrations and reduces noise for accurate sensor readings.
• IMUs are temperature-controlled via onboard heaters for optimal operating temperature and consistent performance.
• Supports a wide input voltage range for servos (0-36V) and standard USB power input.
• Includes an M10 GPS module for precise navigation and positioning.
• Integrated PM02-12S power management module for efficient power distribution.

Technical Specifications

• FMU Processor: STM32H743
  • 32 Bit Arm® Cortex®-M7, 480MHz, 2MB Flash, 1MB SRAM
• IO Processor: STM32F103
  • 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM
• On-board sensors
  • Accel/Gyro: ICM-42688-P
  • Accel/Gyro: BMI055
  • Mag: IST8310
  • Barometer: MS5611
• Electrical data
  • Max input voltage: 6V
  • USB Power Input: 4.75~5.25V
  • Servo Rail Input: 0~36V
  • Current Ratings:
  • Telem1 Max Output Current Limiter: 1.5A
  • All other port combined output current...
• GPS Module: M10
• Power Module: PM02-12S
• Case Material: Aluminum

Applications

This flight controller is perfect for a variety of applications including advanced FPV drones, professional UAVs for aerial photography and videography, agricultural monitoring, industrial inspection, research and development projects, academic use by professors and students, and commercial autonomous vehicle development.

Compatibility

The Pixhawk 6C features a wide servo rail input voltage range (0-36V) and standard USB power input (4.75-5.25V), ensuring broad compatibility with various power systems. Its standardized connectors make integration straightforward for developers and hobbyists.

FAQ

What are the main advantages of the Holybro Pixhawk 6C flight controller?

The Pixhawk 6C boasts a powerful STM32H743 H7 processor, a durable aluminum case, redundant IMUs from Bosch and InvenSense, and an advanced vibration isolation system. It also features temperature-controlled IMUs for optimal performance and comes with an M10 GPS and PM02-12S power module.

Who is the Pixhawk 6C flight controller suitable for?

This flight controller is ideal for corporate research labs, startups, academic environments (researchers, professors, students), and commercial applications. It's perfect for developing advanced FPV drones, professional UAVs, and other autonomous vehicles.

What are the key technical specifications of the Pixhawk 6C?

It features an STM32H743 32-bit Arm Cortex-M7 processor (480MHz, 2MB Flash, 1MB SRAM) and an STM32F103 IO processor (72MHz, 64KB SRAM). It includes ICM-42688-P and BMI055 IMUs, IST8310 magnetometer, and an MS5611 barometer.

What is the voltage and current rating for the Pixhawk 6C?

The Pixhawk 6C has a max input voltage of 6V, USB power input from 4.75-5.25V, and a servo rail input of 0-36V. The Telem1 port has a current limiter of 1.5A.

Where can I buy the Holybro Pixhawk 6C flight controller with fast delivery?

You can buy the Holybro Pixhawk 6C flight controller at HTDRONE. We offer fast shipping within Poland and reliable delivery to Ukraine via Nova Poshta. International customers can benefit from fast worldwide shipping via DHL.
