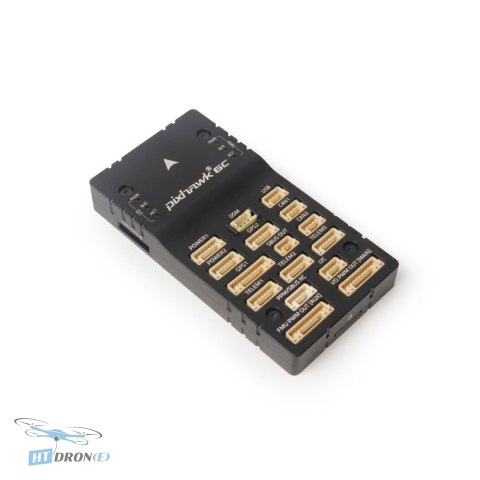

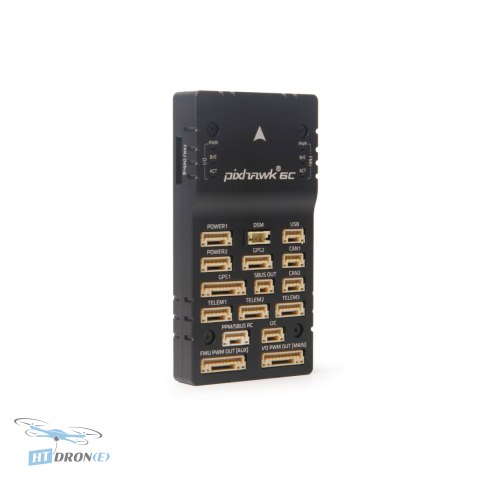

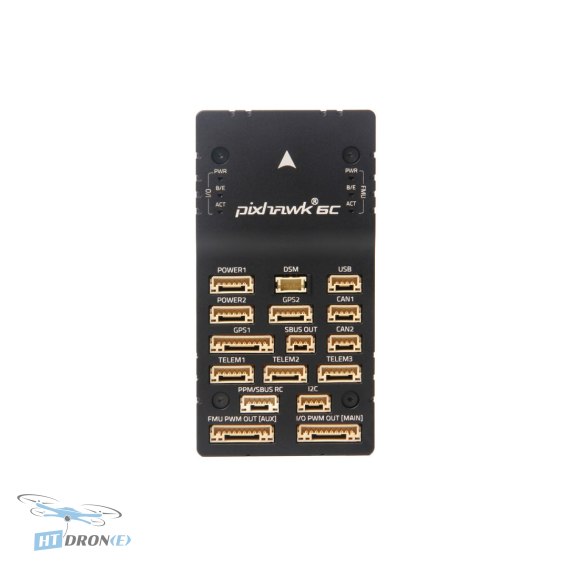

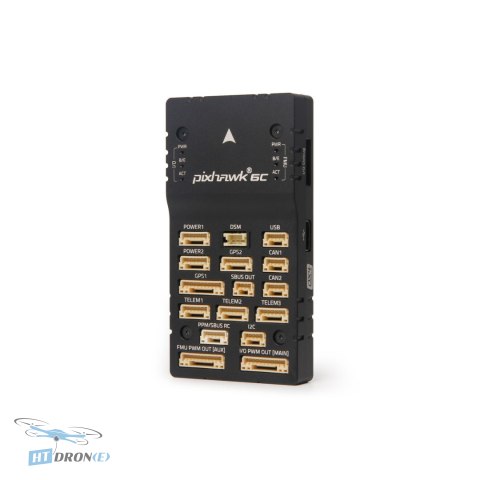

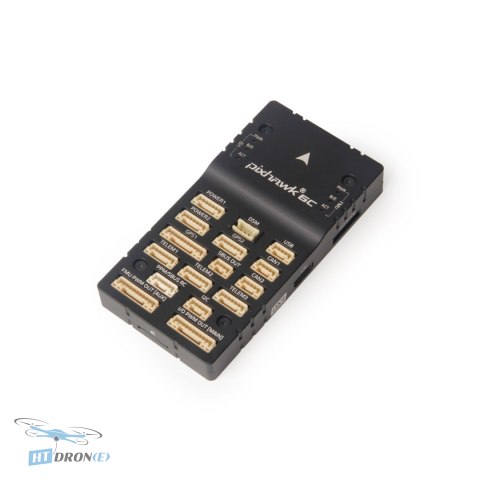

Holybro Pixhawk 6C Flight Controller with PM02 V3 Power Module (Aluminum Case)

Introduction

The Holybro Pixhawk 6C is a high-performance flight controller engineered to the FMUv6C standard, encased in a durable aluminum housing for enhanced protection and stability. This advanced version includes the PM02 V3 power module, making it an ideal choice for reliable voltage and current measurement in professional and advanced drone builds. Experience superior flight control and data monitoring with this cutting-edge FC.

Key advantages

• Powered by a potent H7 processor for complex flight algorithms and real-time control.
• Features dual redundant IMUs with vibration isolation for precise sensor readings and stable flight performance.
• Robust aluminum casing provides durability and shields against external noise and interference.
• Includes the PM02 V3 power module supporting up to 12S batteries for accurate current and voltage monitoring.
• FMUv6C standard compliance ensures compatibility with a wide range of autopilots and peripherals.
• Ideal for professional FPV drones, UAVs, and complex aerial platforms.
• Reliable voltage and current monitoring for safe and efficient operation.

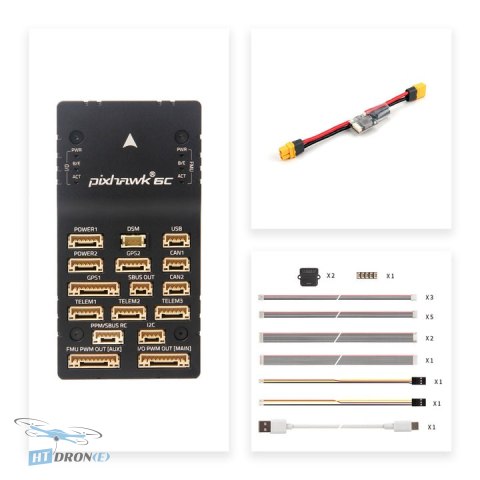

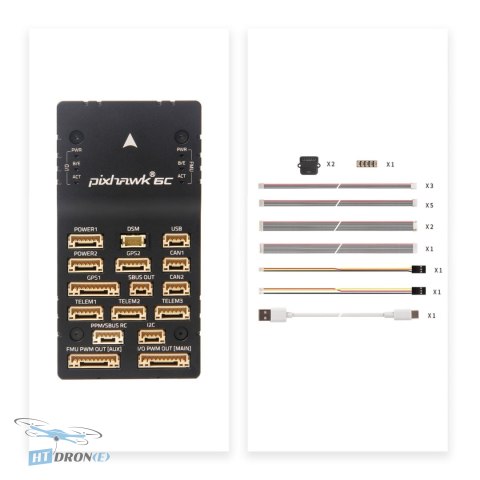

• Comprehensive cable set included for easy integration.

Technical specifications

• FMU Processor: STM32H743, 32-bit Arm® Cortex®-M7 @ 480 MHz, 2MB Flash, 1MB SRAM
• IO Processor: STM32F103, 32-bit Arm® Cortex®-M3 @ 72 MHz, 64KB SRAM
• Sensors: ICM-42688-P, BMI055 (Accelerometer/Gyroscope); IST8310 (Magnetometer); MS5611 (Barometer)
• FC Rated Voltage: Max Input 6V; USB 4.75-5.25V; Servo Rail 0-36V
• FC Rated Current: Telem1 & GPS2 limit 1.5A; Other ports total 1.5A
• Power Module (PM02 V3): Input 2S-12S LiPo (7-51V); Continuous Current 60A; Burst 100A (<60s); Max Measurement 120A; 5.2V/3A Output</li>
• Operating Temperature: -25 °C to +85 °C
• FC Dimensions: 84.8 x 44 x 12.4 mm
• FC Weight: 59.3g (Aluminum Case)
• PM02 Weight: 20g

Applications

This flight controller is perfectly suited for a variety of demanding applications including professional FPV racing drones, advanced UAV platforms, aerial photography and videography drones, inspection drones, and custom-built unmanned systems requiring high reliability and precise flight control.

Compatibility

The Holybro Pixhawk 6C is designed to be compatible with ArduPilot and PX4 flight stacks. It features standard interfaces for GPS, telemetry, servos, and power modules. The included PM02 V3 module is specifically designed to work seamlessly with the Pixhawk 6C, supporting a wide range of LiPo battery voltages from 2S to 12S.

FAQ

What makes the Holybro Pixhawk 6C flight controller suitable for professional drone builds?

The Holybro Pixhawk 6C features a powerful H7 processor for complex algorithms, dual redundant IMUs for stability, and a durable aluminum case. The included PM02 V3 power module ensures reliable voltage and current monitoring, essential for professional applications.

What is the voltage and current monitoring capability of the PM02 V3 module?

The PM02 V3 power module included with the Pixhawk 6C supports 2S-12S LiPo batteries (7-51V) and can handle a continuous current of 60A, with a burst current of 100A. It provides accurate measurement up to 120A.

What type of sensors are used in the Holybro Pixhawk 6C?

The Holybro Pixhawk 6C utilizes high-quality sensors including ICM-42688-P and BMI055 for accelerometer/gyroscope, IST8310 for magnetometer, and MS5611 for barometer, ensuring precise flight data.

Where can I buy the Holybro Pixhawk 6C flight controller with fast delivery?

You can buy the Holybro Pixhawk 6C flight controller at HTDRONE. We offer fast international delivery via DHL for customers worldwide. Check our shop for the best deals on FPV drone parts.

What are the main applications for the Pixhawk 6C flight controller?

The Pixhawk 6C is ideal for advanced FPV drones, professional UAVs, inspection drones, and custom unmanned systems that require high reliability, precise control, and robust performance.
