Holybro Pixhawk 6X Standard Set v2A Flight Controller - High-Performance STM32H753 for FPV & UAV

Introduction

The Holybro FC Pixhawk 6X Standard Set v2A is a state-of-the-art flight controller designed for professionals and serious hobbyists in the FPV and UAV drone sectors. It offers exceptional processing power, enhanced sensor redundancy, and a robust design, making it suitable for complex missions, industrial applications, and high-performance drones. This flight controller addresses the need for reliability and precision in critical flight operations.

Key Advantages

• Triple Redundant IMUs: Equipped with 3x ICM-45686 IMUs (±32g) featuring BalancedGyro™ technology for superior vibration resistance and data accuracy.
• High-Performance Processing: Powered by a 480 MHz STM32H753 processor, delivering fast computation for advanced flight algorithms.

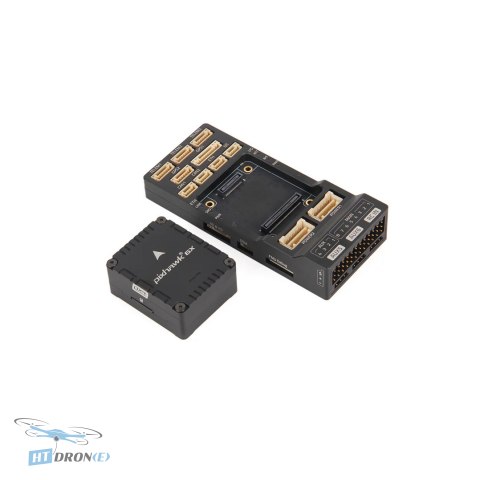

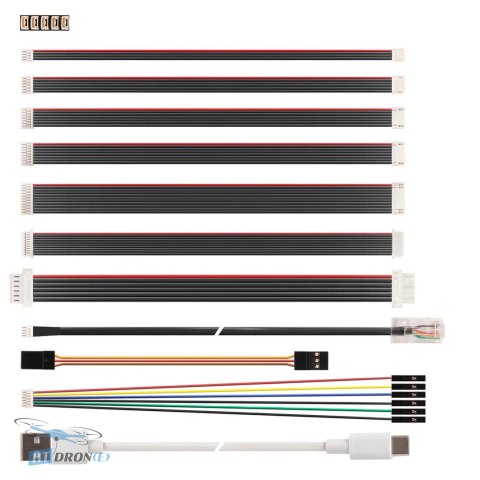

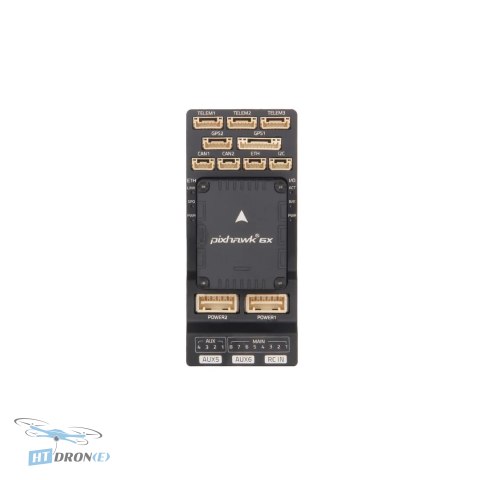

• Modular Design: Features separate FMU, IMU, and base system units connected via a 100-pin connector, offering flexibility and ease of maintenance.
• Triple Redundant Domains: Completely isolated sensor domains with separate buses and power control ensure maximum operational safety.
• Advanced Vibration Isolation: Utilizes custom durable vibration-damping materials with a higher resonant frequency spectrum, ideal for industrial drones.
• Ethernet Interface: Enables quick and efficient integration with mission computers for complex data logging and control.
• Temperature-Controlled IMU: The IMU board includes temperature control to maintain optimal operating temperature for consistent performance.
• Durable Construction: Built with advanced, durable materials for enhanced longevity and resistance to environmental factors.

Technical Specifications

• FMU Processor: STM32H753 (32-bit Arm® Cortex®-M7, 480 MHz, 2MB Flash, 1MB RAM)
• IO Processor: STM32F103 (32-bit Arm® Cortex®-M3, 72MHz, 64KB SRAM)
• Onboard Sensors (v8):
  • Accel/Gyro: 3x ICM-45686 (BalancedGyro™)
  • Barometer: ICP20100 & BMP388
  • Magnetometer: BMM150
• Onboard Sensors (v3/v4):
  • Accel/Gyro: BMI088/ICM-20649, ICM-42688-P, ICM-42670-P
  • Magnetometer: BMM150
  • Barometer: 2x BMP388

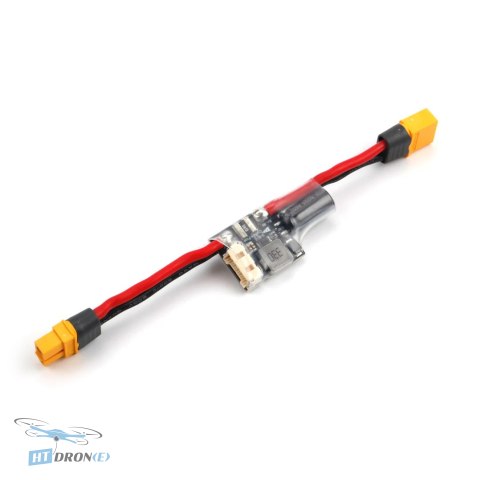

• Rated Voltage:
  • Max Input Voltage: 6V
  • USB Power Input: 4.75-5.25V
  • Servo Rail Input: 0-36V
• Current Capability:
  • Telem1 Output Current Limit: 1.5A
  • All Other Ports Current Limit: 1.5A
• PWM Signal Voltage: Default 3.3V (adjustable to 5V via resistor)
• Mechanical Dimensions:
  • Flight Controller Module: 38.8 x 31.8 x 16.8mm
  • Standard Baseboard: 52.4 x 102 x 16.7mm (Aluminum)
  • Mini Baseboard: 43.4 x 72.8 x 14.2mm
• Weight:
  • Flight Controller Module: 31.3g
  • Standard Baseboard: 72.5g (Aluminum)
  • Mini Baseboard: 26.5g

Applications

This flight controller is ideal for a wide range of applications including professional FPV systems, industrial UAVs, aerial mapping, surveying, inspection drones, advanced research projects, and custom drone builds requiring high reliability and performance.

Compatibility

The Pixhawk 6X Standard Set v2A is designed for broad compatibility with standard FPV and UAV components. It supports a wide servo rail input voltage (0-36V) and features adjustable PWM signal voltage (default 3.3V, adjustable to 5V). The Ethernet interface ensures easy connection to mission computers.

FAQ

What makes the Holybro Pixhawk 6X Standard Set v2A ideal for industrial UAVs?

The Holybro Pixhawk 6X Standard Set v2A is designed for industrial applications due to its high-performance STM32H753 processor, triple redundant IMUs with BalancedGyro™ technology, and advanced vibration isolation using durable materials. This ensures exceptional reliability and precision for critical missions.

What are the key sensor redundancies in the Pixhawk 6X Standard Set v2A?

This flight controller features triple redundancy for its IMUs (3x ICM-45686 sensors) and dual barometers (ICP20100 & BMP388). It also has triple redundant sensor domains with isolated buses and power control, significantly enhancing flight safety and data integrity.

Can I connect the Holybro Pixhawk 6X Standard Set v2A to a mission computer?

Yes, the Holybro Pixhawk 6X Standard Set v2A includes an Ethernet interface, which allows for quick and high-speed integration with mission computers. This is beneficial for advanced data logging, real-time analysis, and complex control scenarios.

What is the voltage range for the servo rail on the Pixhawk 6X Standard Set v2A?

The servo rail on the Holybro Pixhawk 6X Standard Set v2A supports a wide input voltage range from 0V up to 36V. The PWM signal voltage is set to 3.3V by default but can be adjusted to 5V using a resistor, offering flexibility for various servo setups.
