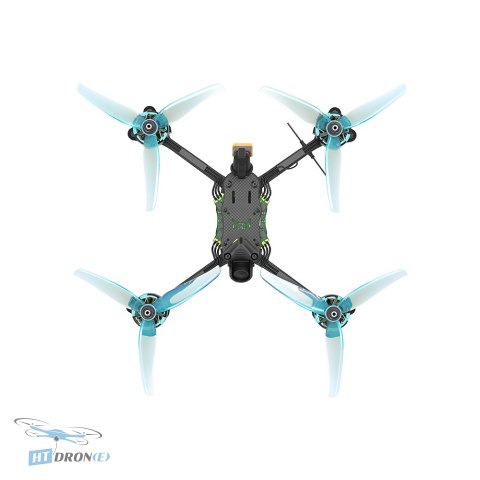

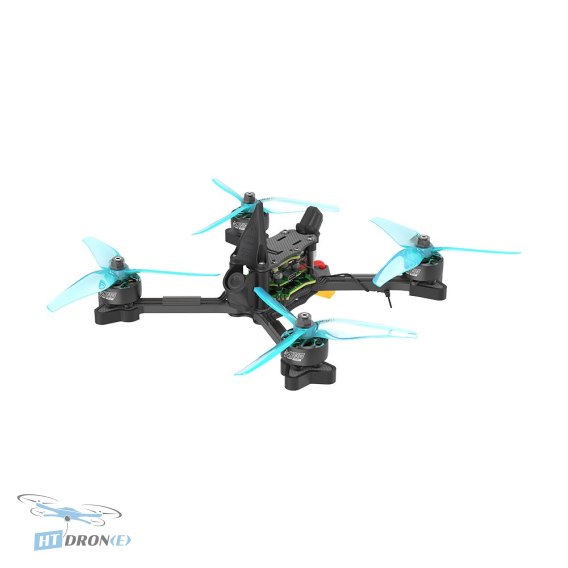

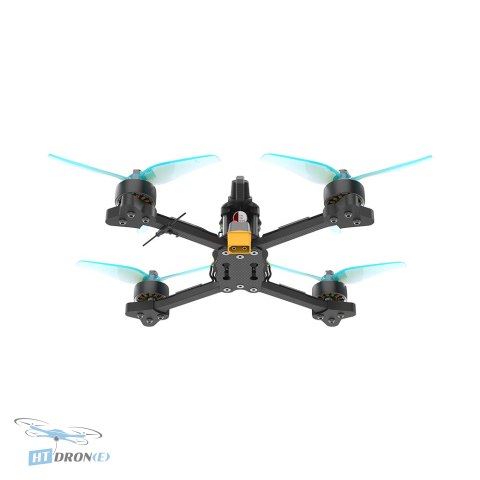

IFlight AOS 5R Analog 5.8G 600mW 6S PNP FPV Racing Drone

Introduction

Redefine your FPV racing experience with the iFlight AOS 5R Analog drone. Engineered with cutting-edge, patent-pending technology, this advanced racing quadcopter is designed to give you a competitive advantage. The AOS 5R V5 combines innovation with adrenaline, offering a more sophisticated, versatile, and user-friendly platform than any previous racing frame. It's the ultimate tool for pilots who demand top-tier performance and reliability in high-speed FPV competitions.

Key Advantages

• Unmatched racing performance with a True-X frame geometry.
• Powerful iFlight R5 2207 2050KV motors for extreme speed and acceleration.
• High-quality BLITZ Mini Force 5.8G 600mW VTX ensures a stable analog video feed.
• Robust BLITZ E55R 4-in-1 ESC for reliable power management.
• Designed for 6S power systems for maximum flight dynamics.
• Includes durable Nazgul R5 V2 propellers for optimal thrust.
• Capable of reaching speeds up to 205 km/h (manual mode).
• Optimized for competitive FPV racing and freestyle flying.

Technical Specifications

• Frame Geometry: True-X
• Flight Controller: BLITZ Mini F7 FC
• ESC: BLITZ E55R 4-in-1 ESC
• Video Transmitter: BLITZ Mini Force 5.8g 600mW
• Frame Wheelbase: 201mm
• Motor: R5 2207 2050KV
• Propeller: Nazgul R5 V2 Propellers
• Weight: 300g (without battery)
• Takeoff Weight: Approx. 525g (with 6S 1400mAh battery)
• Dimensions (L×W×H): 142×142×38 mm
• Max Speed: 205 km/h (manual mode)
• Max Takeoff Altitude: 6000 m
• Max Hover Time: Approx. 13 minutes (with 1400mAh, no load)
• Max Flight Distance: 5 km
• Max Wind Resistance: Level 6
• Operating Temperature: -10° to 40° C (14° to 104° F)
• Antennas: Single Antenna
• VTX Power Output: PIT/25mW/200mW/400mW/600mW
• VTX Input Voltage: 5V
• VTX Current Draw: ≤PIT @80mA, ≤25mW @280mA, ≤100mW @405mA, ≤400mW @485mA, ≤600mW @575mA
• VTX Frequency: 40CH (A-B-E-F-R)
• VTX Antenna Interface: MMCX
• VTX Mounting Hole: 25x25 Φ2mm / 20x20 Φ3mm
• VTX Weight: 4 grams (without antenna)
• VTX Dimensions: 29mm x 29mm

Applications

This drone is primarily designed for FPV racing, competitive freestyle flying, and high-speed aerial maneuvers. It is suitable for pilots looking to push the limits in organized racing events and dynamic flight sessions. Its robust build and powerful components also make it suitable for advanced hobbyists exploring the capabilities of analog FPV systems.

Compatibility

The drone utilizes a BLITZ Mini F7 FC and BLITZ E55R 4-in-1 ESC. The BLITZ Mini Force 5.8G VTX supports 40 channels and has an MMCX antenna interface. Mounting holes for the VTX are available for 25x25mm (Φ2mm) and 20x20mm (Φ3mm) configurations. It is designed for 6S LiPo batteries.

FAQ

What is the iFlight AOS 5R Analog drone best suited for?

The iFlight AOS 5R Analog drone is specifically designed for FPV racing and competitive freestyle flying. Its True-X frame, powerful motors, and high-performance video transmitter make it ideal for pilots who need speed, agility, and a reliable analog video feed during intense aerial maneuvers.

What are the key technical specifications of the iFlight AOS 5R Analog?

This drone features a 201mm wheelbase True-X frame, a BLITZ Mini F7 Flight Controller, BLITZ E55R 4-in-1 ESC, and R5 2207 2050KV motors. It includes a BLITZ Mini Force 5.8G 600mW VTX and Nazgul R5 V2 propellers. It's designed for 6S batteries and can reach speeds up to 205 km/h.

What is the video transmission system on the iFlight AOS 5R Analog?

The drone is equipped with a BLITZ Mini Force 5.8G 600mW VTX, offering multiple power output options including PIT, 25mW, 200mW, 400mW, and 600mW. It operates on 40 channels (A-B-E-F-R) and uses an MMCX antenna interface for reliable analog video transmission.

Where can I buy the iFlight AOS 5R Analog drone and what are the shipping options?

You can buy the iFlight AOS 5R Analog drone at HTDRONE. We offer fast shipping within Poland and reliable worldwide delivery via DHL for international orders. Check our store for the best deals on FPV racing drones.

What is the maximum flight time and speed of the iFlight AOS 5R Analog drone?

With a 6S 1400mAh battery and no load, the drone can achieve a maximum hover time of approximately 13 minutes. In manual mode, it can reach a maximum speed of 205 km/h, making it a formidable choice for FPV racing.
