IFlight BLITZ D25 HD F7 AIO FC with OSD for FPV Drones

Introduction

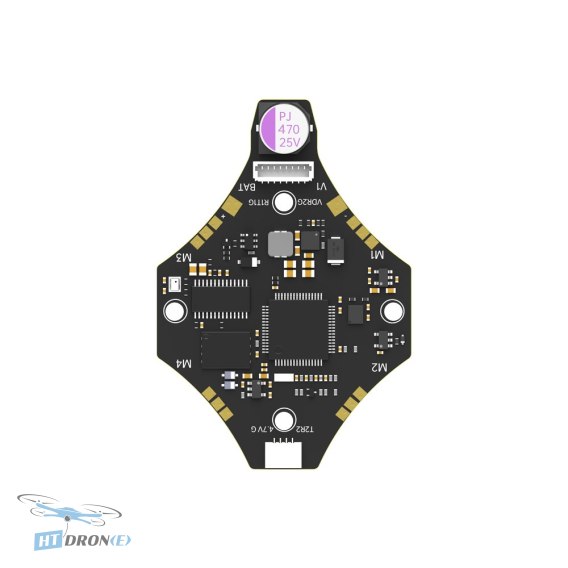

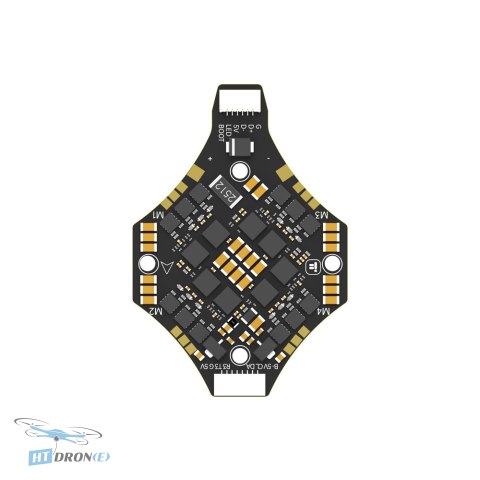

The iFlight BLITZ D25 HD F7 AIO Flight Controller is a high-performance, integrated solution designed for demanding FPV drone applications. It combines a powerful F7 flight controller with an integrated OSD and a 20A ESC, offering a compact and efficient all-in-one board. This AIO is specifically engineered to provide superior control and stability for drone pilots looking to maximize their performance in a small form factor, such as the Defender 25 build.

Key advantages

• All-in-one design integrating Flight Controller, OSD, and ESC for simplified builds.
• Powerful STM32F722 MCU for fast processing and responsive flight control.
• High-quality ICM42688 gyroscope for accurate flight stabilization.
• Integrated OSD with chipset for real-time flight data display.
• 20A continuous ESC output (30A peak) capable of handling demanding motors.
• Support for 2-4S LIHV batteries, offering flexibility in power choices.
• Compact 25.5x25.5mm mounting pattern with M2 grommets for vibration dampening.
• Onboard 32MB Blackbox memory for flight logging and tuning.

Technical specifications

• FC MCU: STM32F722
• Gyroscope: ICM42688
• Blackbox: 32MB built-in Flash memory
• FC BEC Output: 5V 2.5A
• WS2812 LED Strip: Yes
• Buzzer: Yes
• Barometer: DPS310
• Connector: SH1.0 to Type-C adapter
• OSD: With OSD chipset
• FC Firmware: IFLIGHT_BLITZ_F722_X1
• Mounting Pattern: 25.5 * 25.5 mm φ3 mm
• Dimensions: 32.5*32.5mm
• Input Voltage: 2-4S, supports LIHV batteries
• VTX Protocol Support: Smartaudio / IRC Tramp
• Weight: 12.8g±0.2g
• ESC MCU: STM32G071
• Driver: FD6288
• ESC Input Voltage: 2-4S supports LIHV battery
• ESC Output Current: 20A, 30A peak (10 seconds)
• ESC Firmware: IFLIGHT_BLITZ_G071_01
• Current Sensor: 200 ratio (1/10mV/A)
• ESC BEC: NO
• ESC Telemetry: Yes (PCB routed, set UART6 for telemetry)
• Bidirectional DShot: Yes
• Supported ESC Protocols: DShot DShot150/300/600/MultiShot/OneShot etc.

Applications

This iFlight BLITZ D25 HD F7 AIO FC is perfect for building high-performance FPV racing drones, freestyle quads, and compact cinematic FPV systems. Its integrated design and robust specifications make it suitable for pilots who demand reliability and responsiveness in their aerial creations.

Compatibility

This AIO is designed for builds requiring a compact form factor and is compatible with 2-4S LIHV batteries. It features an SH1.0 to Type-C adapter and supports Smartaudio / IRC Tramp VTX protocols. The mounting pattern is 25.5x25.5mm with M2 grommets. Note: This specific AIO version includes an OSD chip and is intended for use with the Defender 25 HD VTX.

FAQ

What is the iFlight BLITZ D25 HD F7 AIO FC and who is it for?

The iFlight BLITZ D25 HD F7 AIO FC is an all-in-one flight controller board with integrated OSD and a 20A ESC. It is designed for FPV drone enthusiasts looking for a compact, high-performance solution for racing, freestyle, or small cinematic builds.

What are the key technical specifications of the iFlight BLITZ D25 HD F7 AIO FC?

It features an STM32F722 MCU, ICM42688 gyroscope, 32MB Blackbox memory, and a 20A ESC (30A peak). It supports 2-4S LIHV batteries and Smartaudio/IRC Tramp VTX protocols. The mounting pattern is 25.5x25.5mm.

What is the power input requirement for this AIO flight controller?

The iFlight BLITZ D25 HD F7 AIO FC supports input voltages from 2S to 4S, including LIHV batteries, providing flexibility for various power setups.

Where can I buy the iFlight BLITZ D25 HD F7 AIO FC with fast delivery?

You can buy the iFlight BLITZ D25 HD F7 AIO FC at HTDRONE. We offer fast shipping within Poland and reliable worldwide delivery via DHL. Check our store for the best deals.

Is this AIO FC compatible with standard FPV VTX control protocols?

Yes, this AIO flight controller supports both Smartaudio and IRC Tramp VTX control protocols, allowing for easy configuration and management of your video transmitter.
