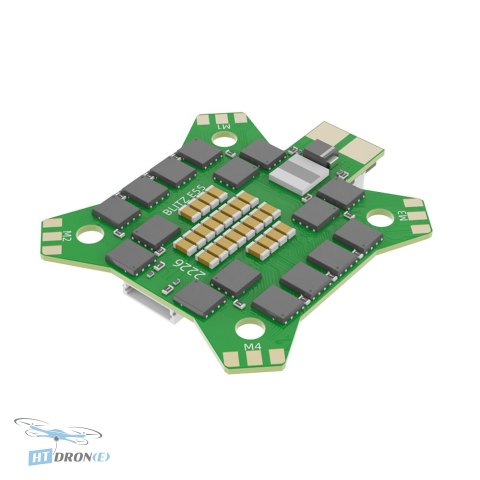

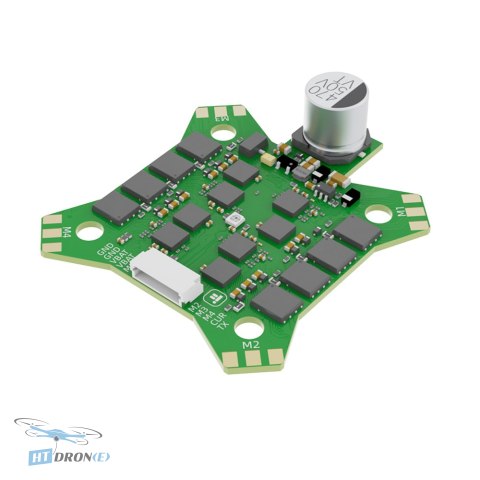

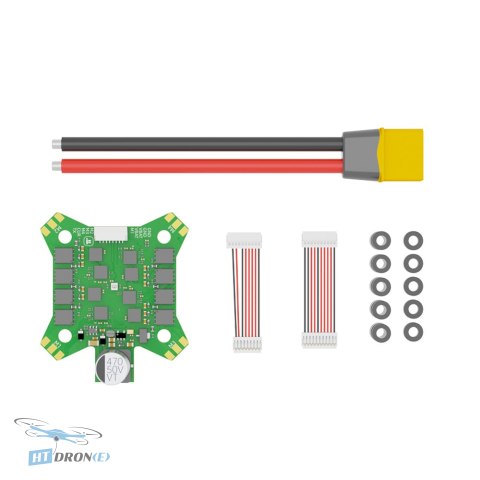

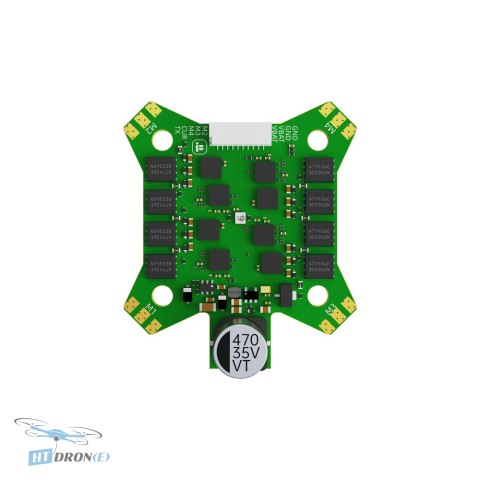

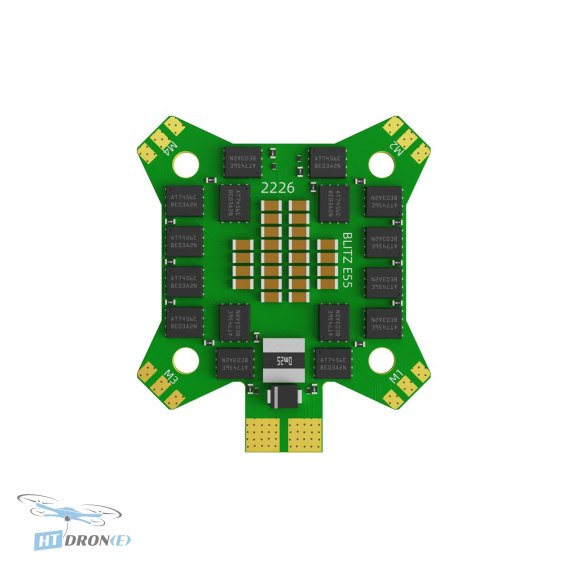

IFlight BLITZ E55 4-IN-1 ESC 55A 2-6S for FPV Drones

Introduction

The iFlight BLITZ E55 4-IN-1 ESC is a high-performance electronic speed controller designed for demanding FPV drone applications. It integrates four individual ESCs into a single compact unit, simplifying wiring and reducing weight. This ESC is ideal for pilots seeking reliable power management and precise motor control for their racing, freestyle, or cinematic FPV setups. Experience superior performance and durability with the BLITZ E55 from iFlight.

Key advantages

• Robust 55A continuous and 65A burst current for powerful performance.
• Wide 2-6S Lipo input voltage range for versatile battery compatibility.
• Supports advanced digital protocols like DShot150/300/600, MultiShot, and OneShot.
• Integrated current sensor for real-time monitoring of power consumption.
• Compact 4-in-1 design simplifies build and saves space.
• Durable construction designed for the rigors of FPV flight.
• Optimized for the IFLIGHT_BLITZ_G2 target firmware for enhanced performance.
• Reliable power delivery for smooth throttle response and control.

Technical specifications

• Model: BLITZ E55 4-IN-1 ESC
• Mounting Holes: 30.5*30.5mm / Φ4mm
• Weight: 15.3g
• Lipo Input: 2-6S
• MCU: G071
• Continuous Current: 55 A
• Burst Current: 65 A
• Current Sensor: Yes
• BEC: No
• Amperage: 200 (Note: This likely refers to a current sensing ratio or similar, actual continuous current is 55A)
• Supported Protocols: DShot DShot150/300/600/MultiShot/OneShot etc.
• Target: IFLIGHT_BLITZ_G2

Applications

This ESC is perfectly suited for a wide range of FPV drone applications including high-speed racing, aggressive freestyle flying, cinematic FPV, and general UAV use where reliable and powerful motor control is essential. It is designed to handle the demanding power requirements of modern FPV setups.

Compatibility

The iFlight BLITZ E55 4-IN-1 ESC features standard 30.5x30.5mm mounting holes compatible with most FPV drone frames. It supports a wide range of Lipo batteries from 2S up to 6S and is compatible with digital ESC protocols like DShot for seamless integration with modern flight controllers.

FAQ

What is the iFlight BLITZ E55 4-IN-1 ESC best suited for?

The iFlight BLITZ E55 4-IN-1 ESC is designed for FPV drones, particularly for racing and freestyle applications that require high power output and precise motor control. Its robust current handling makes it suitable for demanding builds.

What is the maximum voltage and current this ESC can handle?

This ESC supports 2-6S Lipo batteries and can handle a continuous current of 55A, with a burst current of up to 65A. It also features an integrated current sensor.

What digital protocols does the iFlight BLITZ E55 4-IN-1 ESC support?

The BLITZ E55 4-IN-1 ESC supports various digital protocols including DShot150, DShot300, DShot600, MultiShot, and OneShot, ensuring compatibility with modern flight controllers.

What are the mounting dimensions for the iFlight BLITZ E55 4-IN-1 ESC?

The ESC features standard mounting holes with dimensions of 30.5x30.5mm and a hole diameter of Φ4mm, making it compatible with most FPV drone frames.

Where can I buy the iFlight BLITZ E55 4-IN-1 ESC with fast delivery?

You can buy the iFlight BLITZ E55 4-IN-1 ESC at HTDRONE. We are based in Poland and offer fast delivery within Poland and worldwide shipping via DHL. Check our shop for the best deal!
