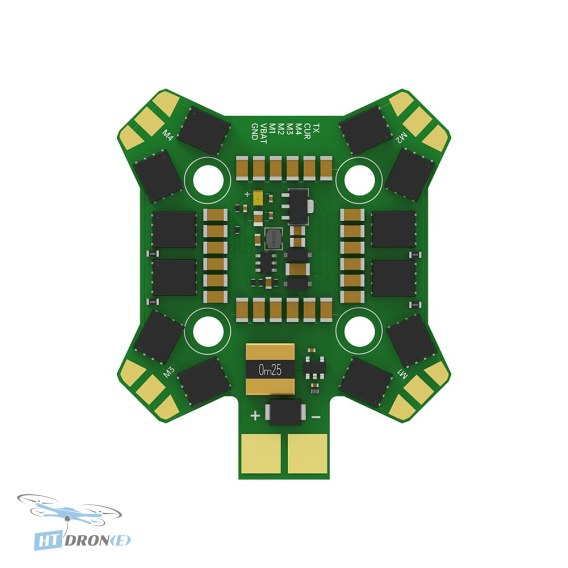

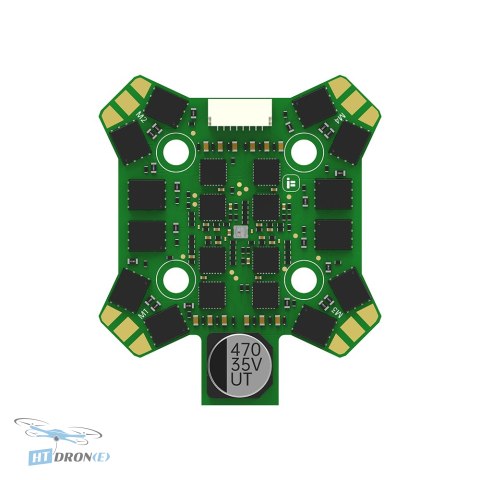

IFlight BLITZ E55R 4-IN-1 ESC 55A 2-6S BLHeli32 for FPV Racing Drones

Introduction

Introducing the next generation of ESCs from iFlight: the BLITZ E55R 4-IN-1 ESC. Designed for serious FPV pilots, this unit can power even the most demanding brushless motors. With its robust construction and advanced BLHeli32 firmware, it offers unparalleled performance and reliability for your high-flying adventures. It's the perfect upgrade for pilots looking to push the limits of their FPV drones.

Key advantages

• Enhanced Durability: Larger MOSFETs provide greater strength and resilience under load.
• Superior Heat Dissipation: An improved PCB design ensures maximum heat dissipation, keeping the ESC cool during intense flights.
• High Redundancy: Increased safety features offer high redundancy for more reliable operation.
• Exceptional Performance: Delivers outstanding performance, capable of handling demanding motors and high C-rated batteries.
• Advanced Firmware: Runs on BLHeli32 firmware for advanced customization and control.
• Wide Voltage Range: Supports 2-6S LiPo batteries, offering flexibility for various builds.
• Compact Mounting: Features a standard 20x20mm mounting pattern for easy integration.
• Integrated Current Sensing: Built-in current sensor for real-time monitoring.

Technical specifications

• Product Name: BLITZ E55R 4-IN-1 ESC (G2)
• Input Voltage: 2-6S
• Max. Continuous Current: 55A
• Max. Burst Current: 65A
• MCU: G071
• BEC: No
• Firmware: BLHeli32
• Current Sensor: Yes
• Current Speed: 200
• Telemetry: Supported
• Target: IFLIGHT_BLITZ_G2
• Mounting Holes: 20x20 mm/Φ4mm
• Weight: 15.3g
• Protocol: Supports DShot150/300/600/MultiShot/OneShot etc.

Applications

This iFlight BLITZ E55R 4-IN-1 ESC is ideal for high-performance FPV racing drones, freestyle quads, and any UAV application requiring robust power delivery and precise motor control. Its capabilities make it suitable for demanding flight maneuvers and extended flight times.

Compatibility

Designed for seamless integration with the BLITZ Flight Controller series. Compatible with frame kits like the Mach R5 V1/Sport Frame kit and the AOS 5R Frame kit. Please note it is not suitable for Nazgul Evoque F5 or F6 models.

FAQ

What is the maximum continuous current rating for the iFlight BLITZ E55R 4-IN-1 ESC?

The iFlight BLITZ E55R 4-IN-1 ESC boasts a maximum continuous current rating of 55A. This ensures it can handle the power demands of high-performance FPV drone motors during intense flights.

What battery voltage range does the iFlight BLITZ E55R 4-IN-1 ESC support?

This ESC is designed to work with a wide input voltage range, supporting 2S to 6S LiPo batteries. This flexibility makes it suitable for a variety of FPV drone builds.

What firmware does the iFlight BLITZ E55R 4-IN-1 ESC use, and what protocols does it support?

The iFlight BLITZ E55R 4-IN-1 ESC utilizes the advanced BLHeli32 firmware, offering extensive customization options. It supports various digital protocols including DShot150/300/600, MultiShot, and OneShot.

Where can I buy the iFlight BLITZ E55R 4-IN-1 ESC with fast delivery?

You can buy the iFlight BLITZ E55R 4-IN-1 ESC at HTDRONE, your specialized FPV drone parts store. We offer fast international delivery via DHL, ensuring you receive your components quickly.

What are the main advantages of the iFlight BLITZ E55R 4-IN-1 ESC over previous generations?

The BLITZ E55R features larger MOSFETs for increased durability, an improved PCB design for better heat dissipation, and enhanced safety features for higher redundancy. These improvements lead to exceptional performance and reliability.
