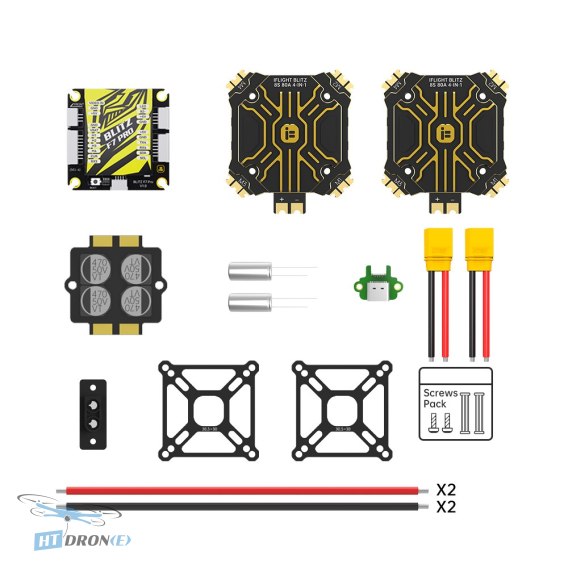

IFlight BLITZ E80 4-IN-1 Pro*2 + BLITZ F7 Pro V1.1 FPV Stack

Introduction

The iFlight BLITZ E80 4-in-1 Pro*2 + BLITZ F7 Pro V1.1 stack represents a significant upgrade for FPV drone enthusiasts. This integrated system combines a high-performance flight controller (FC) with a robust Electronic Speed Controller (ESC) unit, designed to deliver exceptional power, reliability, and advanced features. It's engineered for pilots who demand the best in flight stability, responsiveness, and data logging capabilities, making it a top choice for competitive FPV racing and freestyle flying.

Key Advantages

• Enhanced circuit design for improved component efficiency and reduced electrical noise.
• Direct DJI HD VTX plug-and-play connector, eliminating the need for soldering.
• Integrated FC LED indicators for straightforward visual debugging.
• Generous 512MB BlackBox for comprehensive flight data recording.
• Equipped with an LC filter for cleaner power delivery to sensitive components.
• High-performance PSMN1R0-40YLD MOSFETs on the ESC capable of handling continuous 80A current.
• Automotive-grade TI synchronous rectifier for the BEC, supporting up to 100V input.
• Ultra-thick 4oz copper PCB layers ensure stable power output during high-demand operation.

Technical Specifications

• FC Product Name: BLITZ F7 Pro Flight Controller
• Mounting Pattern: 35*35mm / 4mm PCB hole diameter
• SmartAudio / IRC Tramp VTX Protocol: Supported
• Firmware: IFLIGHT_BLITZ_F7_PRO
• Input Voltage: 14.8V-34V (4S-8S LIPO)
• Motor Outputs: 4x (SH1.25 connector)
• Flash Memory: 512MB (Blackbox flash)
• Serial I2C: SDA / SLA
• Dimensions: 41*41.5mm
• Barometer: DPS310
• OSD Chip: AT7456E
• LED Controller: Yes
• MCU: STM32 F722
• Weight: 17g (±2)
• Buzzer: Yes
• Gyroscope: BMI270
• UARTs: 4
• ESC Product Name: BLITZ E80 4-IN-1 ESC
• Input Voltage: 2-8S
• Max Continuous Current: 80A
• Max Burst Current: 100A
• MCU: G071
• BEC: No
• Firmware: BLHeli32
• Current Sensor: Yes
• Telemetry: Supported
• Target: IFLIGHT_BLITZ_G2
• Mounting Dimensions: 35x35mm/Φ3mm
• Dimensions: 35x42mm
• Weight: 65g(±10)
• Protocol: Supports DShot DShot150/300/600/MultiShot/OneShot etc.

Applications

This iFlight BLITZ stack is perfect for high-performance FPV drones used in racing, freestyle, cinematic FPV, and general aerial hobby applications. Its robust design and powerful capabilities make it suitable for custom builds requiring reliable power delivery and advanced flight control.

Compatibility

Supports 4S-8S LIPO input for the FC and 2S-8S for the ESC. Features 4 UARTs for peripherals. Compatible with Smartaudio / IRC Tramp VTX protocols. Includes a plug-and-play connector for DJI HD VTX. Mounting dimensions are 35x35mm for the FC and 35x35mm/Φ3mm for the ESC.

FAQ

What is the iFlight BLITZ E80 4-in-1 Pro*2 + BLITZ F7 Pro V1.1 stack?

This is an integrated flight control system for FPV drones, combining the BLITZ F7 Pro flight controller with the BLITZ E80 4-in-1 ESC. It offers advanced features like a 512MB BlackBox, DJI HD VTX plug-and-play, and high-current handling capabilities.

What FPV applications is this stack suitable for?

The iFlight BLITZ stack is ideal for FPV racing, freestyle flying, and custom drone builds that require high performance, reliability, and robust power delivery. Its specifications cater to demanding flight conditions.

What is the maximum voltage and current supported by this stack?

The BLITZ F7 Pro FC supports 4S-8S LIPO input, while the BLITZ E80 ESC can handle 2S-8S input. The ESC provides a continuous current of 80A and a burst current of 100A.

Does the stack come with a DJI HD VTX connector?

Yes, the iFlight BLITZ stack features a DJI HD VTX connector that is plug-and-play, meaning no soldering is required for connection.

Where can I buy the iFlight BLITZ E80 stack with fast delivery?

You can buy the iFlight BLITZ E80 4-in-1 Pro*2 + BLITZ F7 Pro V1.1 stack at HTDRONE. We offer fast shipping within Poland and reliable worldwide delivery via DHL.
