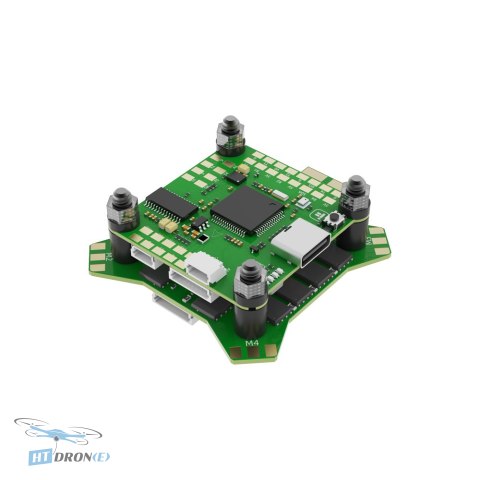

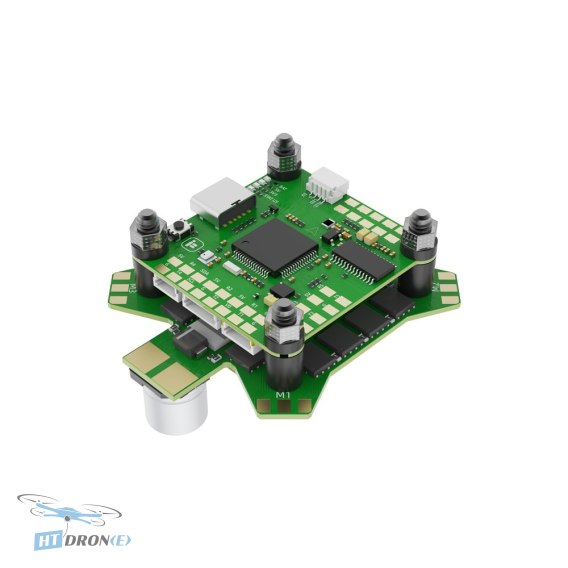

IFlight BLITZ F7 E55 4-IN-1 Flight Tower System for FPV Drones

Introduction

The iFlight BLITZ F7 E55 4-IN-1 Flight Tower System is a premium integrated solution designed for FPV drone enthusiasts and professional builders. This system combines a powerful F7 flight controller with a high-current 4-in-1 ESC, streamlining your build process and enhancing performance. It's engineered with upgraded circuitry for reduced electrical noise and improved component reliability, making it an ideal choice for demanding FPV applications.

Key advantages

• Enhanced Circuit Design: Features improved circuitry and components for lower electrical noise and greater stability.
• DJI HD VTX Ready: Includes a dedicated connector for DJI HD VTX, offering plug-and-play convenience without soldering.
• Visual Debugging: Integrated FC LED indicators provide visual feedback for easier troubleshooting and setup.
• High-Performance ESC: The 55A continuous current rating (65A burst) supports 2-6S LiPo input, handling powerful motors.
• Advanced Flight Controller: Equipped with an STM32 F722 MCU and ICM42688 Gyro for precise flight control.
• Integrated Filtering: Comes with an LC filter to ensure clean power delivery to your FPV system.
• Ample Connectivity: Offers 6 UARTs, I2C, and support for Smartaudio/IRC Tramp VTX protocols.
• Durable Construction: Built to withstand the rigors of FPV flight, with a robust design for reliable operation.

Technical specifications

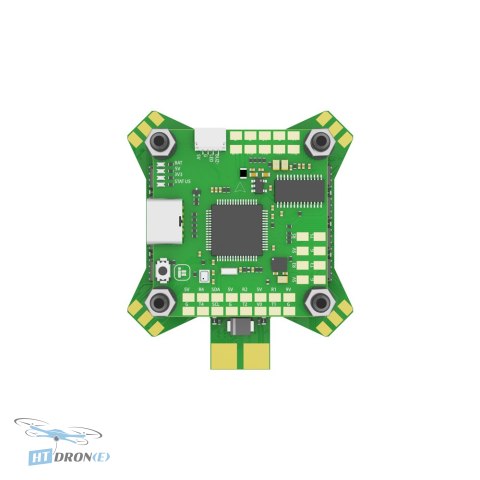

• FC MCU: STM32 F722
• FC Gyroscope: ICM42688
• FC Barometer: DPS310
• FC OSD Chip: AT7456E
• FC Flash Memory: 32 MB (Blackbox flash)
• FC UARTs: 6
• FC Motor Outputs: 4x (SH1.0 connector)
• FC Serial I2C: SDA / SLA
• FC VTX Protocol Support: Smartaudio / IRC Tramp
• FC LED Controller: Yes
• FC Buzzer Controller: Yes
• FC Firmware: IFRC-IFLIGHT_BLITZ_F722
• FC Mounting Pattern: 30.5*30.5mm / 4mm hole diameter
• FC Dimensions: 36.5*35 mm
• FC Weight: 7.8g
• FC BEC: 5V 2.5A / 9V 2A

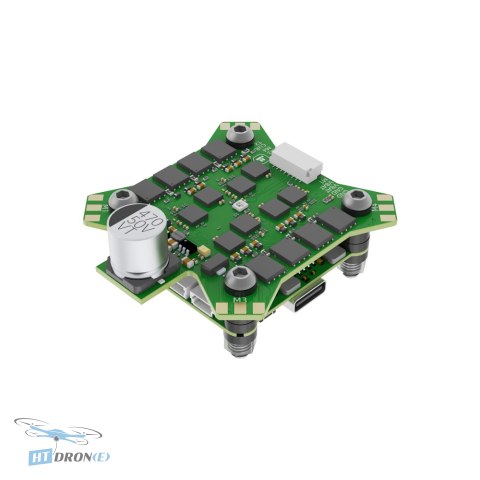

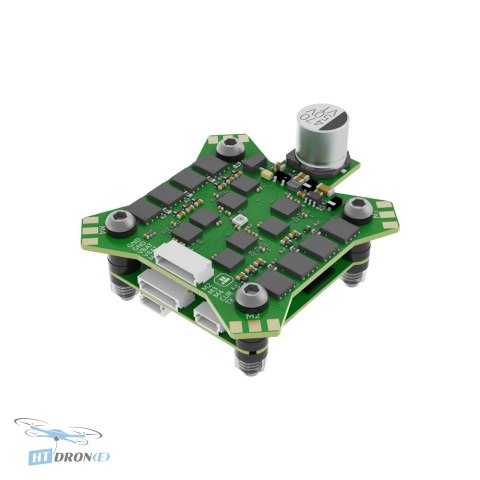

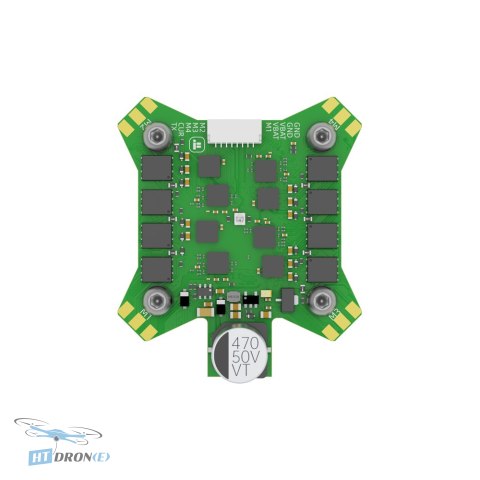

• ESC Mounting Holes: 30.5*30.5mm / Φ4mm
• ESC Weight: 15.3g
• ESC Lipo Input: 2-6S
• ESC MCU: G071
• ESC Continuous Current: 55A
• ESC Burst Current: 65A
• ESC Current Sensor: Yes
• ESC BEC: No
• ESC Current Rating: 200
• ESC Protocol Support: DShot DShot150/300/600/MultiShot/OneShot
• ESC Target: IFLIGHT_BLITZ_G3 32.9

Applications

This flight tower system is ideal for building high-performance FPV racing drones, freestyle quadcopters, and professional UAV platforms. Its robust specifications and advanced features make it suitable for freestyle flying, competitive racing, aerial cinematography, and general FPV exploration.

Compatibility

The iFlight BLITZ F7 E55 stack is compatible with 2-6S LiPo batteries. It offers multiple UART ports for various peripherals like receivers, GPS modules, and VTXs. The system supports standard mounting patterns (30.5x30.5mm) and features a dedicated connector for DJI HD VTX, ensuring broad compatibility with popular FPV components.

FAQ

What is the iFlight BLITZ F7 E55 4-IN-1 Flight Tower System?

The iFlight BLITZ F7 E55 is an integrated FPV drone component that combines a powerful F7 flight controller with a 55A 4-in-1 Electronic Speed Controller (ESC). It's designed to simplify builds and enhance performance for FPV enthusiasts.

What are the key technical specifications of the BLITZ F7 FC?

The BLITZ F7 flight controller features an STM32 F722 MCU, ICM42688 gyroscope, DPS310 barometer, AT7456E OSD, 32MB Blackbox flash, and 6 UARTs. It supports Smartaudio/IRC Tramp VTX protocols and has a 30.5x30.5mm mounting pattern.

What is the current rating and voltage support for the E55 ESC?

The E55 ESC provides a continuous current of 55A and a burst current of 65A. It supports 2-6S LiPo battery input, making it suitable for high-power FPV builds.

Is this flight tower compatible with DJI Digital FPV System?

Yes, the iFlight BLITZ F7 E55 features a dedicated DJI HD VTX connector, allowing for plug-and-play integration without the need for soldering. This makes it highly compatible with the DJI FPV system.
