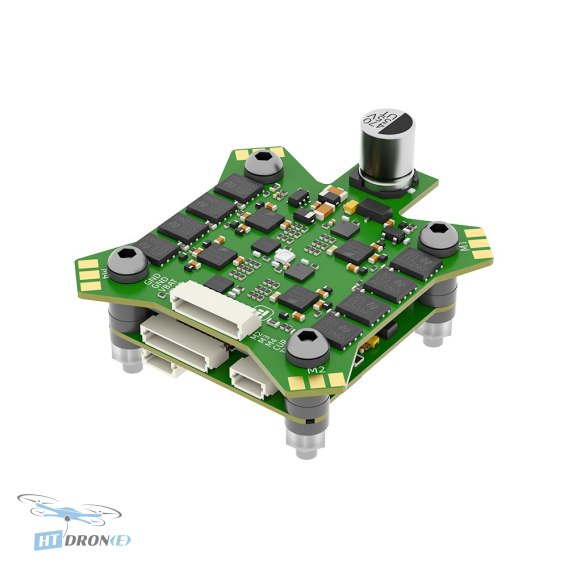

IFlight BLITZ F7 E55S 4-in-1 + 1.6W VTX Flight Tower System - FPV Racing & Freestyle

Introduction

The iFlight BLITZ F7 E55S 4-in-1 + BLITZ 1.6W VTX Flight Tower System is a premium integrated solution for FPV drone enthusiasts. This system combines a high-performance flight controller, a powerful Electronic Speed Controller (ESC), and a high-output Video Transmitter (VTX) into a single, cohesive unit. Designed for demanding FPV applications, it offers robust performance, advanced features, and reliable operation for both racing and freestyle piloting.

Key Advantages

• Integrated F7 Flight Controller: Equipped with an STM32 F722 MCU and ICM42688 gyro for precise and responsive flight control.
• Powerful 4-in-1 ESC: The BLITZ E55S ESC supports 2-6S LiPo input and delivers a continuous 55A (65A burst) current, handling demanding motors.
• High-Power VTX: Features a BLITZ 1.6W VTX with multiple power levels (PIT/25mW/400mW/800mW/1600mW) for extended range and clear video transmission.
• Advanced Telemetry: Supports SmartAudio/IRC Tramp VTX protocols for easy configuration and real-time data feedback.
• Durable Construction: Built with quality components for reliability in harsh FPV conditions.
• Compact and Lightweight: Designed for efficient integration into various FPV drone builds.
• Comprehensive Connectivity: Multiple UARTs and standard interfaces for easy connection of peripherals like GPS and receivers.
• Blackbox Flash Memory: Integrated 32MB flash for flight logging and analysis.

Technical Specifications

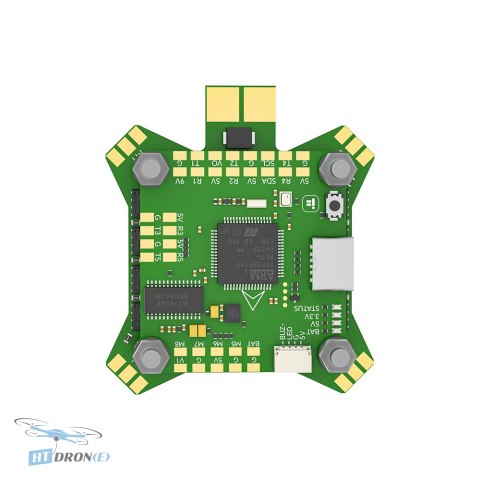

• FC Model: BLITZ F722 V1.2 Flight Controller
• MCU: STM32 F722
• Gyro: ICM42688
• IMU: DPS310 Barometer
• OSD Chip: AT7456E
• Flash Memory: 32MB (Blackbox)
• Mounting Pattern (FC): 30.5x30.5mm / 4mm mounting holes
• Dimensions (FC): 36.5x35mm
• Weight (FC): 7.8g
• UARTs: 6
• BEC: 5V 2.5A / 9V 2A

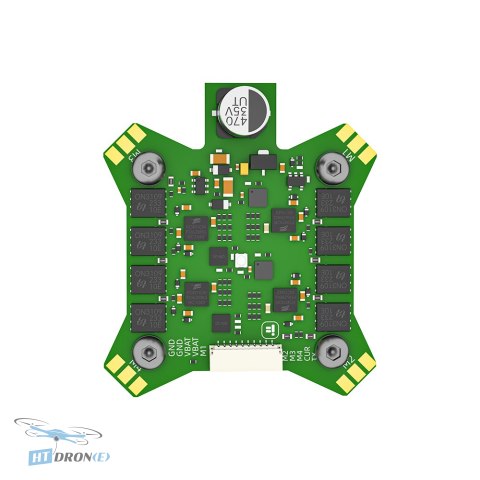

• ESC Model: BLITZ E55S 4-in-1 ESC
• Mounting Pattern (ESC): 30.5x30.5mm / 4mm mounting holes
• Input Voltage: 2-6S LiPo
• Continuous Current: 55A
• Burst Current: 65A
• MCU (ESC): BB21
• Current Sensor: Yes
• BEC (ESC): No
• Supported Protocols: DShot DShot150/300/600, MultiShot, OneShot
• Firmware Target (ESC): Q-H-25 16.7 (BlheliS) / Bluejay Q-H-25 (Bluejay)
• Weight (ESC): 14.7g

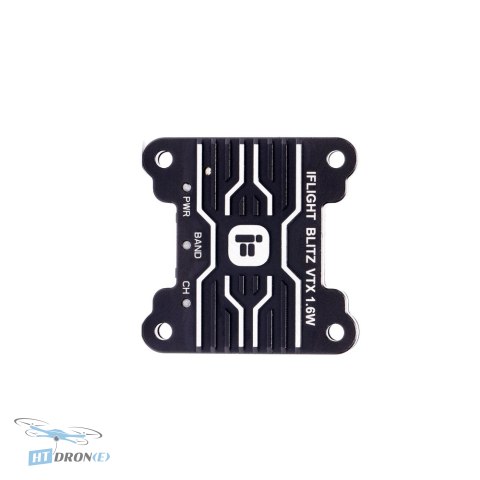

• VTX Model: BLITZ 1.6W VTX
• Input Voltage (VTX): 7V-34V
• Power Levels: PIT/25mW/400mW/800mW/1600mW
• Channels: 40 (including Raceband)
• Mounting Pattern (VTX): 30.5x30.5mm / 3mm mounting holes
• Interface: MMCX
• VTX Telemetry: IRC Tramp
• Weight (VTX): 18.9g (without antenna)

Applications

This flight tower system is ideal for building high-performance FPV drones used in:

• FPV Racing
• FPV Freestyle
• Cinematic FPV Flights
• Drone Competitions
• Advanced Hobbyist Builds

Compatibility

The system is designed for compatibility with standard FPV components. It offers multiple UARTs for receivers and GPS modules, supports various VTX control protocols (SmartAudio/IRC Tramp), and utilizes standard mounting patterns (30.5x30.5mm) for easy integration into most FPV drone frames. Ensure your frame can accommodate the 30.5x30.5mm mounting standard.

FAQ

What is the iFlight BLITZ F7 E55S 4-in-1 + 1.6W VTX Flight Tower System?

This is an integrated electronic system for FPV drones, combining a BLITZ F7 flight controller, a BLITZ E55S 4-in-1 ESC, and a BLITZ 1.6W VTX. It simplifies wiring and optimizes performance for racing and freestyle drones.

What are the main technical specifications of this flight tower?

The system features an STM32 F722 FC with ICM42688 gyro, a 55A continuous / 65A burst 4-in-1 ESC supporting 2-6S LiPo, and a 1.6W VTX with adjustable power levels up to 1600mW. It uses a 30.5x30.5mm mounting pattern.

Who is this FPV flight tower system for?

This flight tower is designed for experienced FPV pilots involved in drone racing, freestyle, or building high-performance custom drones. Its advanced features and power output cater to users who need reliable and powerful electronics.

What is the maximum video transmission power of the BLITZ 1.6W VTX?

The BLITZ 1.6W VTX included in this system offers multiple power output levels, with the maximum being 1600mW (1.6W). It also includes lower settings like PIT, 25mW, 400mW, and 800mW for different flying scenarios.
