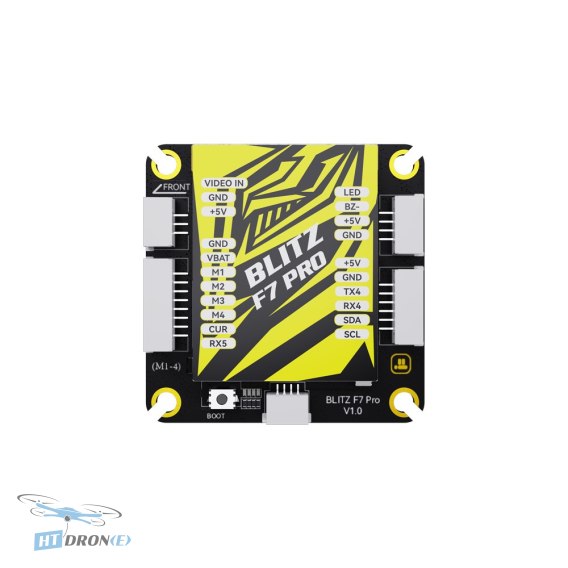

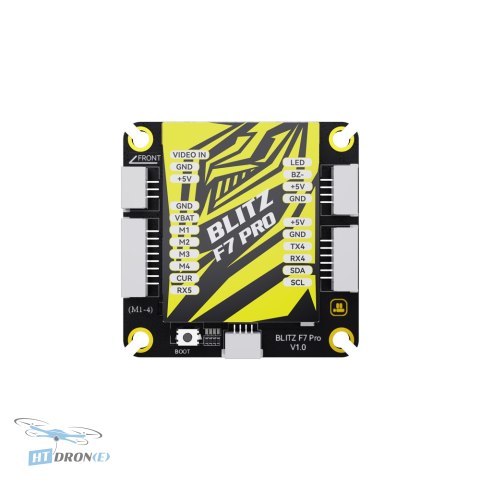

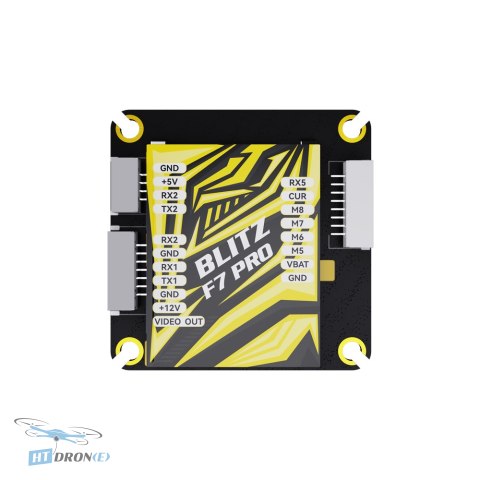

IFlight BLITZ F7 Pro V1.1 Flight Controller 35x35mm for FPV Drones

Introduction

The iFlight BLITZ F7 Pro V1.1 Flight Controller is a high-performance FC designed for demanding FPV drone builds. It offers improved circuitry, superior components, and reduced electrical noise, ensuring stable and reliable flight. Its plug-and-play DJI HD VTX connector and ample onboard resources make it an excellent choice for both experienced builders and those looking to upgrade their setups. Get the best performance for your FPV rig with this advanced flight controller from HTDRONE.

Key advantages

• Enhanced circuit design with improved components for lower electrical noise.
• Plug-and-play DJI HD VTX connector, eliminating the need for complex soldering.
• Integrated FC LED indicators for easy visual debugging during setup and operation.
• Generous 512MB onboard BlackBox memory for flight logging and analysis.
• Built-in LC filter for cleaner power delivery to sensitive components.
• Supports Smartaudio / IRC Tramp VTX protocols for easy configuration.
• Robust STM32 F722 MCU and BMI270 Gyroscope for precise flight control.
• Wide input voltage range (14.8V-34V, 4S-8S LIPO) for versatile power options.

Technical specifications

• Mounting Pattern: 35*35mm / PCB hole diameter 4mm
• Supported Protocols: Smartaudio / IRC Tramp VTX
• Firmware: IFLIGHT_BLITZ_F7_PRO
• Input Voltage: 14.8V-34V (4S-8S LIPO)
• Motor Outputs: 4x (SH1.25 connector)
• Flash Memory: 512MB (Blackbox flash)
• Serial I2C: SDA / SLA
• Dimensions: 41*41.5mm
• Barometer: DPS310
• OSD Chip: AT7456E
• LED Controller: Yes
• MCU: STM32 F722
• Weight: 17g (±2g)
• Buzzer: Yes
• Gyroscope: BMI270
• UARTs: 4
• Dshot/PWM Outputs: 8x
• I2C for GPS Mag: 1x

Applications

This flight controller is ideal for building and upgrading high-performance FPV racing drones, freestyle quads, and professional UAV systems. Its advanced features and robust design support demanding flight maneuvers and complex setups.

Compatibility

Power: Compatible with 4S to 8S LiPo batteries (14.8V-34V).
Interfaces: Features 4 UARTs, I2C, and supports SBUS, CRSF, ELRS, IBUS, DSM, Smartaudio, IRC Tramp, and F.port.
Mounting: Standard 35x35mm mounting pattern with 4mm hole diameter.

FAQ

What is the iFlight BLITZ F7 Pro V1.1 Flight Controller best suited for?

The iFlight BLITZ F7 Pro V1.1 is best suited for building high-performance FPV drones, including racing, freestyle, and advanced UAV applications. Its robust features and compatibility make it ideal for demanding flight experiences.

Does the iFlight BLITZ F7 Pro V1.1 support DJI HD VTX?

Yes, the iFlight BLITZ F7 Pro V1.1 features a dedicated DJI HD VTX connector that is plug-and-play, meaning no soldering is required for a quick and easy connection.

What is the BlackBox capacity on the iFlight BLITZ F7 Pro V1.1?

This flight controller comes equipped with 512MB of onboard flash memory, serving as a BlackBox for logging flight data. This allows for detailed analysis of flight performance and troubleshooting.

What is the input voltage range for the iFlight BLITZ F7 Pro V1.1?

The iFlight BLITZ F7 Pro V1.1 supports a wide input voltage range of 14.8V to 34V, compatible with 4S to 8S LiPo batteries, offering flexibility for various power setups.

Where can I buy the iFlight BLITZ F7 Pro V1.1 flight controller with fast delivery?

You can buy the iFlight BLITZ F7 Pro V1.1 flight controller at HTDRONE. We offer fast shipping within Poland and reliable international delivery via DHL for worldwide customers.
