IFlight BLITZ F7 Pro V1.1 Flight Controller & E80 ESC Stack for FPV Drones

Introduction

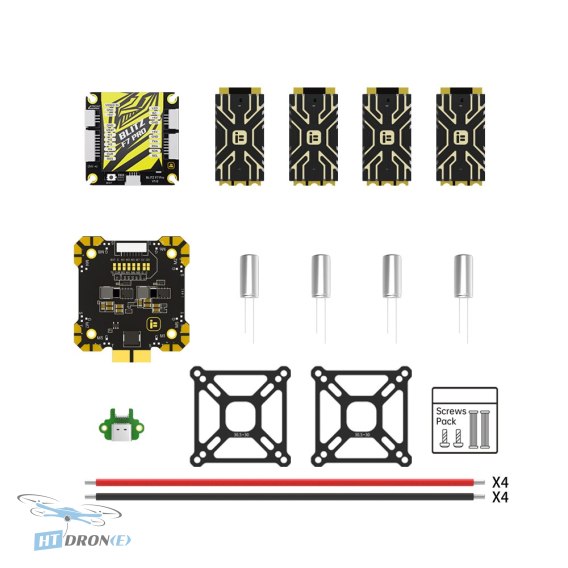

The iFlight BLITZ F7 Pro V1.1 Flight Controller and BLITZ E80 Single ESC Stack (X4) is a high-performance power and control system designed for demanding FPV drone builds. This integrated stack combines a powerful flight controller with individual, high-current ESCs, offering a robust solution for pilots seeking maximum reliability and responsiveness. It's ideal for custom FPV drones, racing quads, and freestyle builds where power delivery and precise control are paramount.

Key Advantages

• Enhanced circuit design with superior components for reduced electrical noise and improved stability.
• Plug-and-play DJI HD VTX connector eliminates the need for soldering, simplifying setup.
• Integrated LED indicators on the Flight Controller for visual debugging and troubleshooting.
• BLITZ E80 Single ESCs deliver smooth, stable power with high durability, featuring a 32-bit 48MHz G071 MCU.
• Ample 240UF Low ESR capacitance ensures faster response times and a smoother flight experience.
• Supports Smartaudio / IRC Tramp VTX protocols for easy configuration.
• High-quality construction with CNC aluminum shielding on ESCs for durability.
• Includes a BLITZ Pro PDB for a clean and organized power distribution system.

Technical Specifications

• Flight Controller (FC) Name: BLITZ F7 Pro Flight Controller
• FC Mounting Pattern: 35x35mm / 4mm PCB hole diameter
• FC Supported Protocols: Smartaudio / IRC Tramp VTX
• FC Firmware: IFLIGHT_BLITZ_F7_PRO
• FC Input Voltage: 14.8V-34V (4S-8S LiPo)
• FC Motor Outputs: 4x (SH1.25 connector)
• FC Flash Memory: 512MB (Blackbox flash)
• FC Serial I2C: SDA / SLA
• FC Dimensions: 41x41.5mm
• FC Barometer: DPS310
• FC OSD Chip: AT7456E
• FC LED Controller: Yes
• FC MCU: STM32 F722
• FC Weight: 17g (±2)
• FC Buzzer: Yes
• FC Gyroscope: BMI270
• FC UARTS: 4
• ESC Name: BLITZ E80 Single ESC
• ESC Input Voltage: 2-8S
• ESC Max Continuous Current: 80A
• ESC Max Burst Current: 100A
• ESC MCU: G071
• ESC BEC: No
• ESC Firmware: BLHeli32
• ESC Current Sensor: Yes
• ESC Telemetry: Supported
• ESC Target: IFLIGHT_BLITZ_G2
• ESC Dimensions: L40 x W17 x H10mm
• ESC Weight: 14.5g (±2)
• ESC Protocol: DShot DShot150/300/600/MultiShot/OneShot PWM Drive

Applications

This FPV stack is perfect for building high-performance FPV racing drones, freestyle quads, and professional aerial platforms. Its robust design and powerful capabilities make it suitable for intense flight maneuvers, long-range exploration, and any application requiring reliable and powerful ESCs and a stable flight controller.

Compatibility

The FC supports 4S-8S LiPo batteries and features 4 UARTs for peripherals. It has a standard 35x35mm mounting pattern with 4mm holes, compatible with most FPV drone frames. The DJI HD VTX connector allows for seamless integration with compatible digital FPV systems.

FAQ

What is the iFlight BLITZ F7 Pro V1.1 and BLITZ E80 ESC Stack?

This is an integrated system combining a high-performance FPV flight controller (BLITZ F7 Pro V1.1) and four individual BLITZ E80 Single ESCs. It's designed to provide robust power delivery and precise flight control for FPV drones.

What are the main advantages of this FPV stack?

It features an improved circuit design for lower noise, a plug-and-play connector for DJI HD VTX, and LED indicators for debugging. The ESCs offer smooth power with high durability, and the FC includes a BMI270 gyro and 512MB Blackbox flash.

What is the voltage compatibility for this stack?

The BLITZ F7 Pro Flight Controller supports input voltage from 14.8V to 34V (4S-8S LiPo). The BLITZ E80 Single ESCs are compatible with 2S to 8S LiPo batteries.

What applications is this iFlight stack best suited for?

This stack is ideal for high-performance FPV racing drones, freestyle quads, and custom drone builds where reliability, power, and responsiveness are critical. It handles intense flight and demanding maneuvers effectively.

Where can I buy the iFlight BLITZ F7 Pro and E80 ESC Stack with reliable delivery?

You can buy this FPV stack at HTDRONE. We offer fast and reliable worldwide shipping via DHL, ensuring you receive your order promptly. Check our store for the best price and current deals.
