IFlight BLITZ F7 Pro V1.1 (X8) & E80 ESC Stack with DJI HD VTX Support - Best for FPV Racing Drones

Introduction

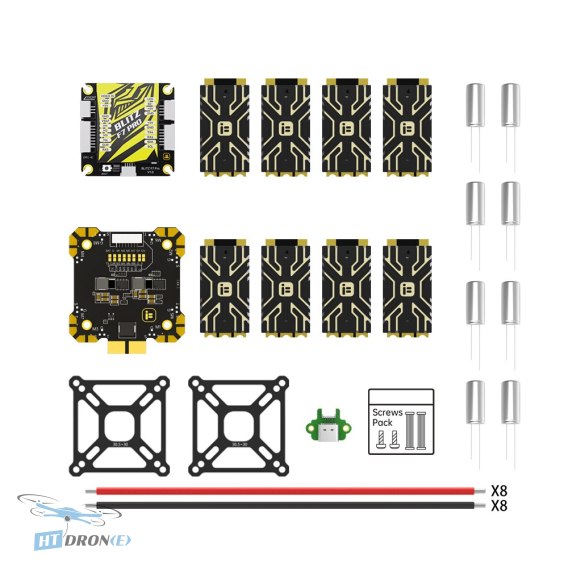

The iFlight BLITZ F7 Pro V1.1 (X8) Flight Controller and BLITZ E80 Single ESC Stack is engineered for demanding FPV pilots seeking top-tier performance and reliability. This advanced stack integrates a powerful F722 MCU flight controller with high-capacity 80A ESCs, designed to handle extreme conditions and provide a smooth, stable flight experience. Its robust construction and enhanced circuitry minimize electrical noise and maximize durability, making it a superior choice for competitive FPV racing and complex aerial maneuvers.

Key advantages

• Enhanced circuit design with improved components for lower electrical noise.
• Plug-and-play DJI HD VTX connector for simplified setup without soldering.
• FC LED indicators for visual debugging and quick troubleshooting.
• BLITZ E80 ESCs provide smooth power delivery with high stability and durability, featuring a 32-bit 48MHz G071 MCU and 11 TDK MLCC capacitors (240UF Low ESR) for faster response.
• Integrated DPS310 barometer for accurate altitude hold.
• BMI270 gyroscope for precise flight control and stability.
• 512MB onboard flash memory for Blackbox logging.
• Supports Smartaudio / IRC Tramp VTX protocols for easy configuration.

Technical specifications

• FC Product Name: BLITZ F7 Pro Flight Controller
• Mounting Pattern: 35*35mm / 4mm PCB hole diameter
• VTX Protocol Support: Smartaudio / IRC Tramp
• Firmware: IFLIGHT_BLITZ_F7_PRO
• Input Voltage: 14.8V-34V (4S-8S LIPO)
• Motor Outputs: 4x (SH1.25 connector)
• Flash Memory: 512MB (Blackbox flash)
• Serial I2C: SDA / SLA
• Dimensions: 41*41.5mm
• Barometer: DPS310
• OSD Chip: AT7456E
• LED Controller: Yes
• MCU: STM32 F722
• Weight: 17g (±2)
• Buzzer: Yes
• Gyroscope: BMI270
• UARTs: 4
• ESC Product Name: BLITZ E80 Single ESC
• Input Voltage: 2-8S
• Max. Continuous Current: 80A
• Max. Burst Current: 100A
• MCU: G071
• BEC: No
• Firmware: BLHeli32
• Current Sensor: Yes
• Telemetry: Supported
• Target: IFLIGHT_BLITZ_G2
• Dimensions: L40 x W17 x H10mm
• Weight: 14.5g (±2)
• Protocol: DShot DShot150/300/600/MultiShot/OneShot PWM Drive

Applications

This high-performance FPV stack is ideal for building custom FPV racing drones, freestyle quadcopters, and professional UAV systems that require robust power delivery, advanced flight control, and seamless integration with digital FPV systems like DJI HD VTX. It is suitable for pilots operating 4S to 8S LiPo batteries.

Compatibility

Mounting: 35x35mm standard mounting pattern with 4mm holes. Compatible with most FPV drone frames. Features a dedicated connector for DJI HD VTX, eliminating the need for soldering. Supports Smartaudio and IRC Tramp for VTX control. Operates with 4S-8S LiPo batteries.

FAQ

What is the iFlight BLITZ F7 Pro V1.1 (X8) & E80 ESC Stack best suited for?

This high-performance stack is ideal for FPV racing drones, freestyle quadcopters, and advanced UAV builds that require robust power delivery and precise flight control. Its features, like DJI HD VTX support and high-amperage ESCs, make it perfect for demanding aerial applications.

What are the key advantages of the BLITZ F7 Pro Flight Controller?

The BLITZ F7 Pro features an STM32 F722 MCU, BMI270 gyroscope for stability, 512MB Blackbox flash, and 4 UARTs. It also includes LED indicators for debugging and supports Smartaudio/IRC Tramp VTX protocols, offering advanced control and ease of use.

How much current can the BLITZ E80 Single ESC handle?

Each BLITZ E80 Single ESC is rated for a maximum continuous current of 80A and a burst current of 100A. It utilizes a 32-bit G071 MCU and BLHeli32 firmware for smooth and reliable power delivery to your motors, supporting 2-8S LiPo input.

Does this stack support digital FPV systems like the DJI HD VTX?

Yes, the iFlight BLITZ F7 Pro V1.1 (X8) & E80 ESC Stack features a plug-and-play connector specifically for the DJI HD VTX, meaning you don't need to solder it, simplifying your build process significantly.
