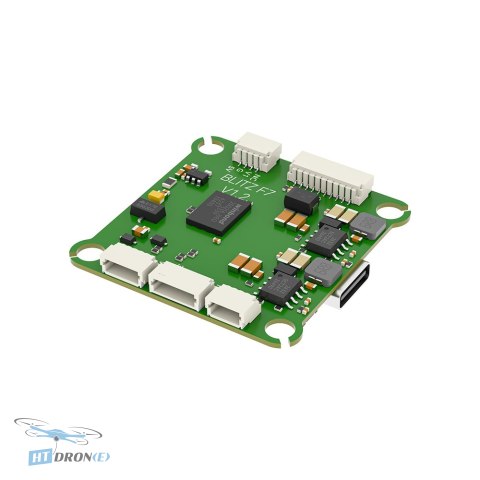

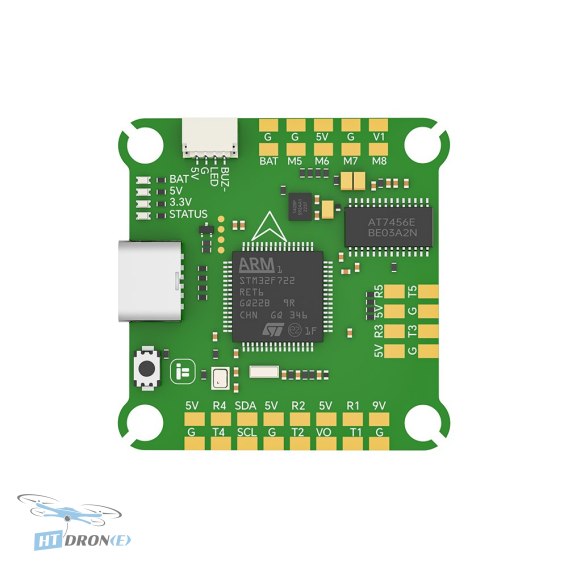

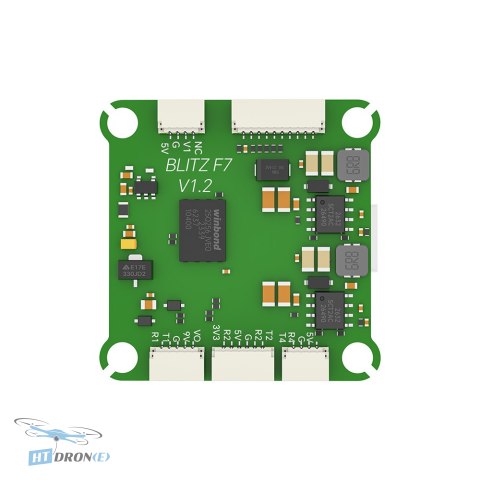

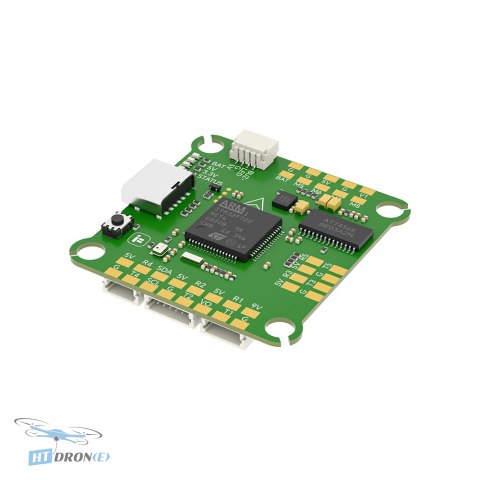

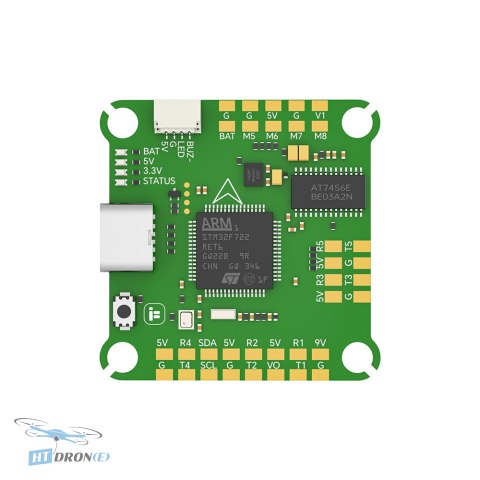

IFlight BLITZ F7 V1.2 ICM42688 Flight Controller for FPV Drones

Introduction

The iFlight BLITZ F7 V1.2 Flight Controller is a high-performance component designed for demanding FPV drone applications. Building upon its predecessor, this V1.2 version incorporates an upgraded ICM42688 gyroscope for enhanced flight stability and reduced noise, alongside improved circuit design and premium components. It's engineered for pilots seeking reliability, precision, and advanced features in their custom FPV builds.

Key Advantages

• Upgraded ICM42688 Gyroscope (January 2024 V1.2 update) for superior stabilization.
• Improved circuit design and components minimize electrical noise for cleaner signal processing.
• Plug-and-Play DJI HD VTX Connector: Simplifies integration without soldering.
• Integrated FC status LEDs for visual debugging and diagnostics.
• Built-in LC Filter for cleaner power delivery to sensitive components.
• Multiple UARTs (6) and ample BEC outputs (5V 2.5A / 9V 2A) for extensive peripheral support.
• 32MB Blackbox Flash for flight data logging and analysis.
• Robust STM32 F722 MCU ensures powerful processing capabilities.

Technical Specifications

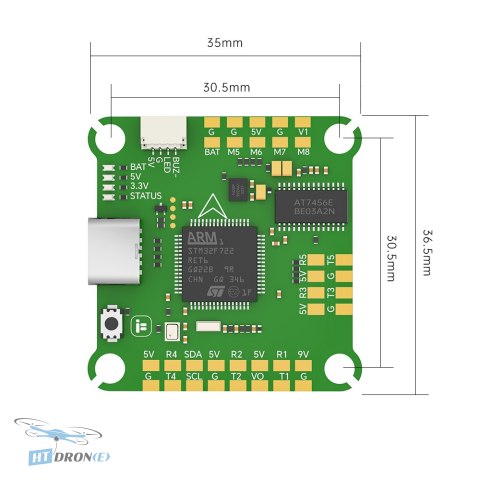

• Mounting Pattern: 30.5 * 30.5 mm / 4mm PCB hole diameter
• Model: BLITZ F722 FLIGHT CONTROLLER V1.2
• VTX Protocol Support: SmartAudio / IRC Tramp
• Target Firmware: IFRC-IFLIGHT_BLITZ_F722
• Motor Outputs: 4x (SH1.0 connector)
• Flash Memory: 32MB (Blackbox flash)
• Serial I2C: SDA / SLA
• Dimensions: 36.5*35 mm
• OSD Chip: AT7456E
• Barometer: DPS310
• MCU: STM32 F722
• LED Control: Yes
• Buzzer: Yes
• Gyroscope: ICM42688
• Weight: 7.8g
• UARTs: 6
• BEC: 5V 2.5A / 9V 2A

Applications

This flight controller is ideally suited for high-performance FPV drones, including freestyle quads, racing drones, and custom UAV builds. Its advanced features and robust design make it capable of handling demanding flight conditions and complex setups.

Compatibility

The iFlight BLITZ F7 V1.2 is compatible with standard FPV system components. It features a plug-and-play connector for DJI HD VTX systems and supports SmartAudio/IRC Tramp for analog VTX control. With 6 UARTs, it offers flexible connectivity for receivers, GPS modules, and other serial devices. The mounting pattern is standard 30.5x30.5mm, common in most FPV frames.

FAQ

What is the main upgrade in the iFlight BLITZ F7 V1.2 compared to previous versions?

The iFlight BLITZ F7 V1.2 features an upgraded ICM42688 gyroscope, introduced in January 2024, for improved flight stability and reduced noise. It also boasts an enhanced circuit design and better components for overall superior performance.

Does the iFlight BLITZ F7 V1.2 support DJI HD VTX systems?

Yes, it features a dedicated plug-and-play connector for DJI HD VTX, eliminating the need for soldering and simplifying the setup process for digital FPV systems.

How many UART ports does the iFlight BLITZ F7 V1.2 offer for peripherals?

The controller is equipped with 6 UART ports, providing ample connectivity options for receivers, GPS modules, ESC telemetry, and other serial devices commonly used in FPV builds.

What is the recommended application for the iFlight BLITZ F7 V1.2 flight controller?

This flight controller is best suited for FPV drones, including racing quads and freestyle builds. Its robust features and upgraded components make it ideal for pilots seeking high performance and reliability.

Where can I buy the iFlight BLITZ F7 V1.2 flight controller with fast delivery?

You can order the iFlight BLITZ F7 V1.2 flight controller from HTDRONE, our specialized FPV and UAV drone parts store based in Poland. We offer fast delivery within Poland and worldwide shipping via DHL.
