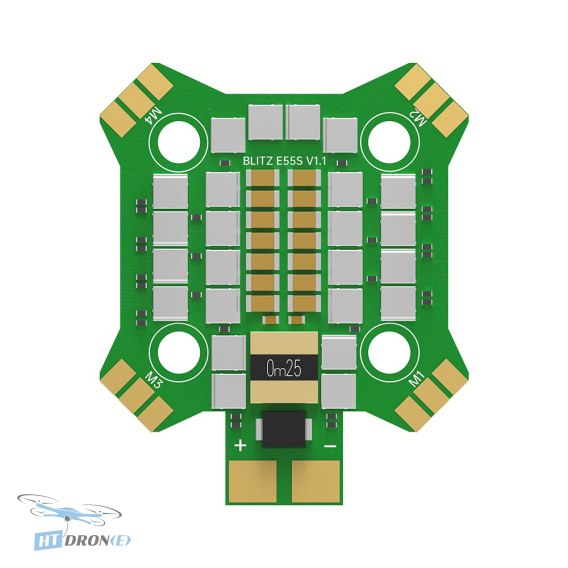

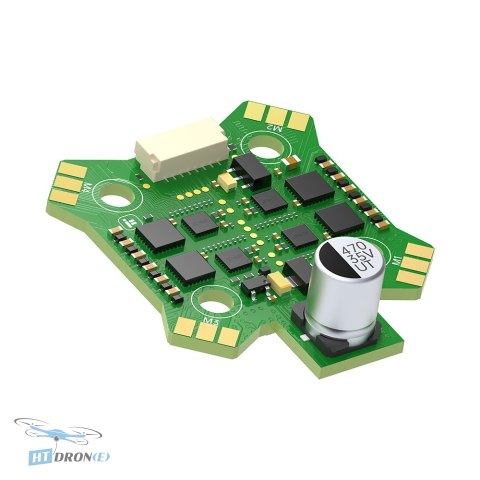

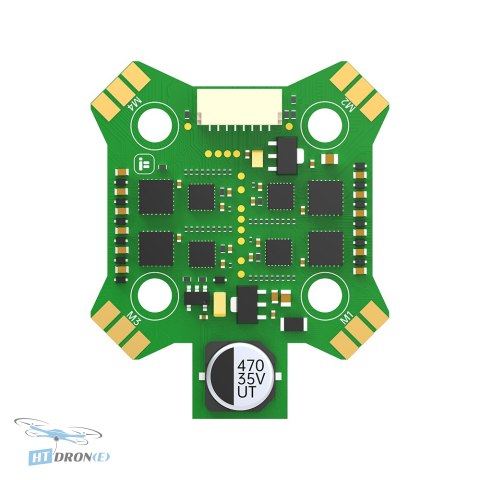

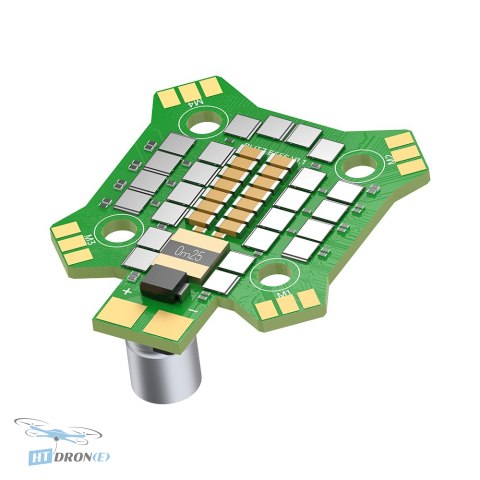

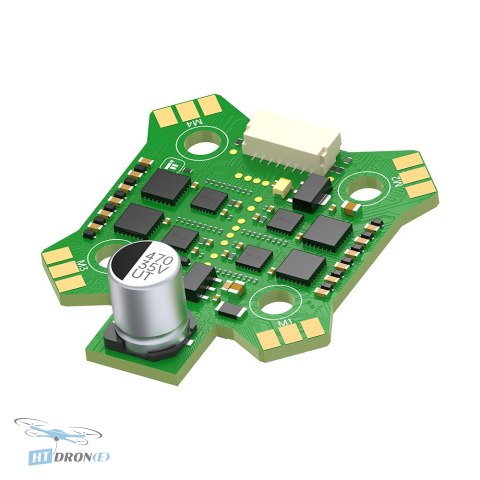

IFlight BLITZ Mini E55S 4-IN-1 V1.1 ESC 55A 2-6S for FPV Drones

Introduction

The iFlight BLITZ Mini E55S 4-IN-1 ESC V1.1 is a high-performance electronic speed controller designed for demanding FPV drone applications. This compact and powerful unit integrates four ESCs into a single board, simplifying wiring and reducing weight, making it perfect for custom builds where space and performance are critical. It's engineered to handle the rigorous demands of FPV racing and freestyle flying.

Key advantages

• Robust Power Handling: Delivers 55A continuous current and a 65A burst, suitable for high-power motors.
• Wide Voltage Range: Supports 2-6S LiPo batteries, offering flexibility for various builds.
• Compact Design: Features a 20x20mm mounting pattern for easy integration into tight frames.
• Advanced Control: Compatible with DShot, MultiShot, and OneShot protocols for precise motor control.
• Current Sensing: Integrated current sensor provides valuable telemetry data for flight monitoring.
• Reliable Performance: Built with quality components for durability and consistent performance.
• Simplified Installation: 4-in-1 design reduces clutter and simplifies wiring.
• Optimized Firmware: Supports popular firmware targets like BLHeli_S and Bluejay for extensive customization.

Technical specifications

• Model: BLITZ Mini E55S 4-IN-1 ESC V1.1
• Mounting Holes: 20x20mm / Φ4mm
• Weight: 11.3g
• Input Voltage: 2-6S LiPo
• MCU: BB21
• Continuous Current: 55 A
• Burst Current: 65 A
• Telemetry Output: No
• Current Sensor: Yes
• BEC: No
• Current Speed: 200
• Supported Protocols: DShot DShot150/300/600 / MultiShot / OneShot etc.
• Target Firmware: Q-H-25 16.7 (BLHeli_S) / Bluejay Q-H-50 (Bluejay)

Applications

This ESC is ideal for FPV racing drones, freestyle quadcopters, professional UAV platforms, and other aerial robotics projects requiring reliable and powerful motor control. It's suitable for builds where high current draw and precise throttle response are essential.

Compatibility

Features a 20x20mm mounting pattern compatible with many FPV flight controller stacks. Supports a wide range of FPV motors due to its extensive protocol compatibility and 2-6S LiPo input.

FAQ

What is the iFlight BLITZ Mini E55S 4-IN-1 ESC V1.1?

The iFlight BLITZ Mini E55S 4-IN-1 ESC V1.1 is a high-performance electronic speed controller designed for FPV drones. It integrates four ESCs into one board, offering 55A continuous current and supporting 2-6S LiPo batteries.

What are the key technical specifications of the BLITZ Mini E55S ESC?

This ESC features a BB21 MCU, supports 2-6S LiPo input, offers 55A continuous and 65A burst current, has a 20x20mm mounting pattern, and includes a current sensor. It is compatible with DShot, MultiShot, and OneShot protocols.

What FPV drone applications is the iFlight BLITZ Mini E55S ESC suitable for?

The BLITZ Mini E55S ESC is ideal for FPV racing drones, freestyle quadcopters, and custom drone builds that require powerful and reliable motor control. Its 4-in-1 design is perfect for builds prioritizing compactness and reduced wiring.

Does the iFlight BLITZ Mini E55S ESC support telemetry?

No, the iFlight BLITZ Mini E55S 4-IN-1 ESC V1.1 does not feature telemetry output. However, it does include a current sensor for monitoring current draw.

Where can I buy the iFlight BLITZ Mini E55S 4-IN-1 ESC with fast delivery?

You can buy the iFlight BLITZ Mini E55S 4-IN-1 ESC at HTDRONE, our specialized FPV drone parts store based in Poland. We offer fast shipping within Poland and worldwide delivery via DHL.
