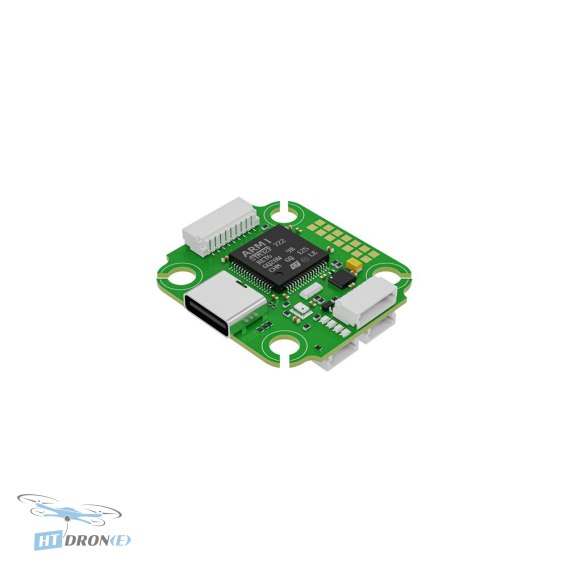

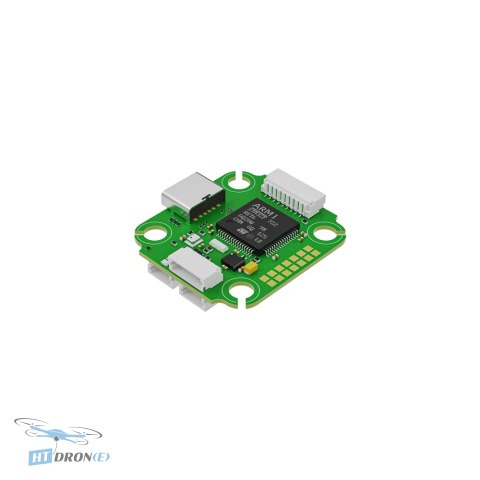

IFlight BLITZ Mini F7 V1.1 Flight Controller for FPV Drones | STM32F722 MCU

Introduction

The iFlight BLITZ Mini F7 V1.1 Flight Controller is a cutting-edge component designed for FPV drone enthusiasts and professionals. It offers enhanced performance and reliability, making it a superb choice for building or upgrading high-performance FPV rigs. This flight controller addresses common pain points with its improved design and user-friendly features like plug-and-play connectivity for DJI HD VTX systems.

Key advantages

• Enhanced circuit design for superior performance and reduced electrical noise.
• Plug-and-play DJI HD VTX connector, eliminating the need for soldering.
• Integrated FC LED indicators for visual debugging and status checks.
• Equipped with an LC filter for cleaner power delivery.
• Powerful STM32F722 MCU running at 216MHz for fast processing.
• High-performance BMI270 gyroscope for stable flight.
• Multiple UARTs (6) and ample Flash memory (16MB) for extensive sensor and logging support.
• Supports SmartAudio and IRC Tramp VTX protocols for easy configuration.

Technical specifications

• MCU: STM32F722 (216MHz)
• Gyroscope: BMI270
• Barometer: DPS310
• OSD Chip: AT7456
• Flash: 16MB (Blackbox flash)
• UARTs: 6
• Motor Outputs: 4x (SH1.0 connector)
• Serial I2C: SDA / SLA
• VTX Protocol Support: SmartAudio / IRC Tramp VTX
• LED Controller: Yes
• Buzzer Pad: Yes
• Firmware: IFRC-IFLIGHT_BLITZ_F722
• Mounting Pattern: 20x20mm / 4mm hole diameter
• Dimensions: 30.5x27 mm
• Weight: 5g

Applications

This flight controller is perfectly suited for a wide range of FPV applications, including freestyle FPV drones, racing drones, cinematic FPV builds, and professional UAV platforms. Its robust specifications make it capable of handling complex flight maneuvers and integrating various sensors for advanced functionalities like GPS navigation and telemetry.

Compatibility

The iFlight BLITZ Mini F7 V1.1 is designed for compatibility with modern FPV systems. It features a dedicated connector for DJI HD VTX, offering seamless integration. With 6 UART ports, it supports connection of receivers, GPS modules, and other serial devices. The 20x20mm mounting pattern ensures compatibility with most FPV frames. Recommended wiring includes UART 1 for HD/Analog VTX, UART 2 for the receiver, UARTs 3/4/5 for GPS or other sensors, and UART 6 for ESC telemetry.

FAQ

What is the iFlight BLITZ Mini F7 V1.1 Flight Controller best suited for?

The iFlight BLITZ Mini F7 V1.1 Flight Controller is ideal for freestyle and racing FPV drones, as well as professional UAV applications. Its powerful STM32F722 processor and high-quality components ensure smooth flight performance and reliable control for demanding aerial tasks.

Does the iFlight BLITZ Mini F7 V1.1 support DJI HD VTX?

Yes, the iFlight BLITZ Mini F7 V1.1 features a dedicated DJI HD VTX connector that supports plug-and-play, meaning you don't need to solder it. This makes setup significantly easier and faster.

What are the main technical specifications of the iFlight BLITZ Mini F7 V1.1?

It features an STM32F722 MCU running at 216MHz, a BMI270 gyroscope, 16MB of Blackbox flash memory, and 6 UART ports. It also includes an AT7456 OSD chip and supports SmartAudio/IRC Tramp VTX protocols.

What is the mounting pattern for the iFlight BLITZ Mini F7 V1.1?

The flight controller uses a standard 20x20mm mounting pattern with 4mm diameter holes, making it compatible with most modern FPV drone frames.
