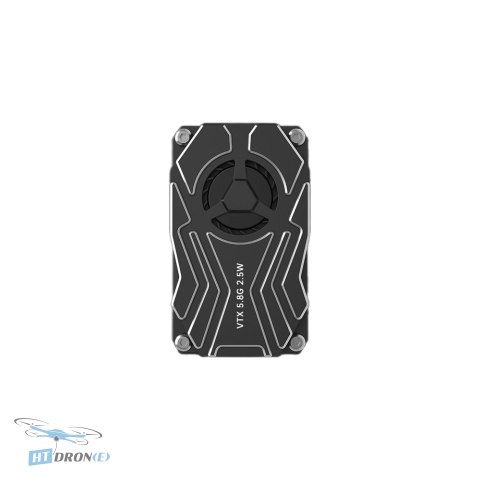

IFlight BLITZ Whoop 5.8G 2.5W VTX - High Power FPV Video Transmitter

Introduction

The iFlight BLITZ Whoop 5.8G 2.5W VTX is a top-tier video transmitter designed for FPV enthusiasts who demand superior performance and reliability. Engineered by iFlight, this VTX offers exceptional power output and advanced features, including a built-in microphone and efficient cooling, ensuring stable video feeds even during intense flights. It's the perfect upgrade for pilots looking to enhance their drone's video transmission capabilities for racing, freestyle, or cinematic FPV applications.

Key advantages

• Powerful Video Transmission: Offers 4 selectable power levels, up to an impressive 2500mW, for extended range and signal clarity.
• Integrated Microphone: Captures ambient sounds for a more immersive FPV experience.
• Stable Performance: Features quick frequency locking to prevent startup interference and ensure smooth operation with other pilots.

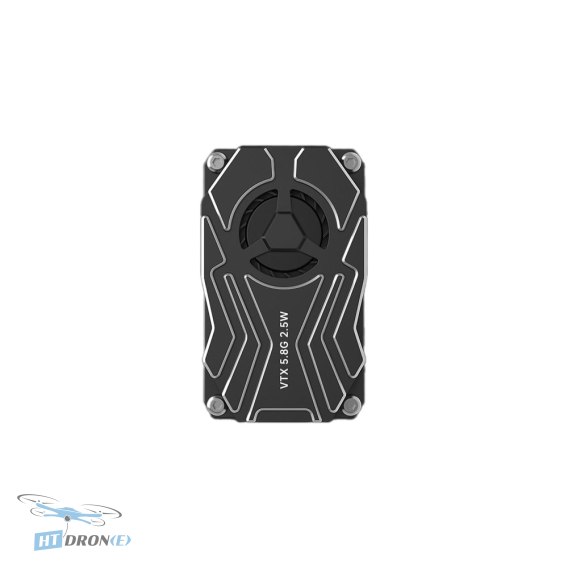

• Advanced Cooling: Equipped with a CNC cooling case and integrated fan for superior heat dissipation, preventing overheating and maintaining optimal power output.
• Wide Input Voltage: Compatible with a broad input voltage range of 7V to 34V (2-8S LiPo).
• Easy Control: Intuitive button controls for power, band, and channel selection, with clear LED indicators.
• Lightweight Design: Weighs only 32g (without antenna), minimizing impact on your drone's flight characteristics.
• Betaflight Integration: Supports IRC Tramp telemetry for easy configuration via Betaflight.

Technical specifications

• Product Name: iFlight BLITZ Whoop 5.8G 2.5W VTX
• Brand: iFlight
• Microphone: Built-in
• Power Levels: PIT/25mW/400mW/1000mW/2500mW
• Channels: 40 (including Raceband)
• Frequency Lock: Fast, prevents startup interference
• Output Power Self-Check: Built-in function

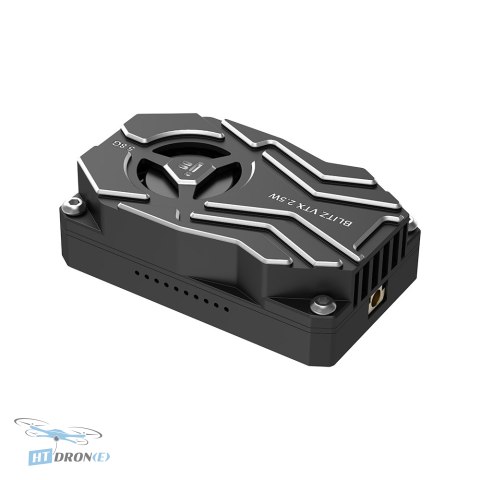

• Cooling: CNC aluminum case with integrated fan
• Input Voltage: 7V - 34V (2S-8S LiPo)
• Video Interface: MMCX

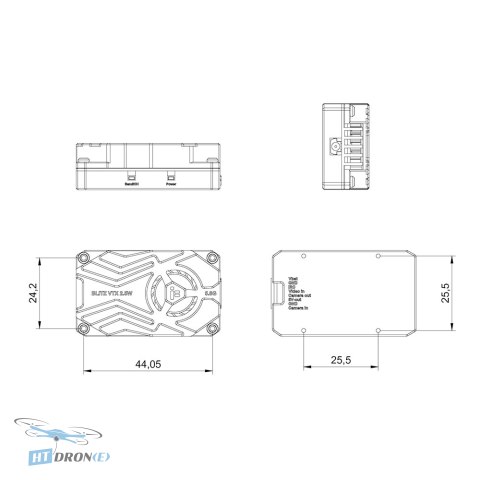

• Mounting Pattern: 25.5x25.5 mm / Φ1.6
• Weight: 32g (without antenna)
• VTX Telemetry: IRC Tramp
• Betaflight Configuration: Supports IRC Tramp VTX tables
• LED Indicator: Yes

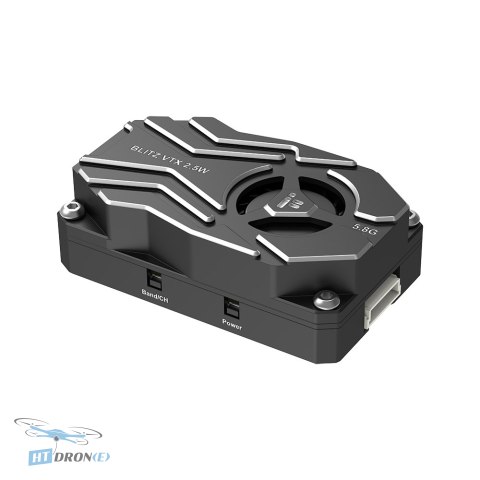

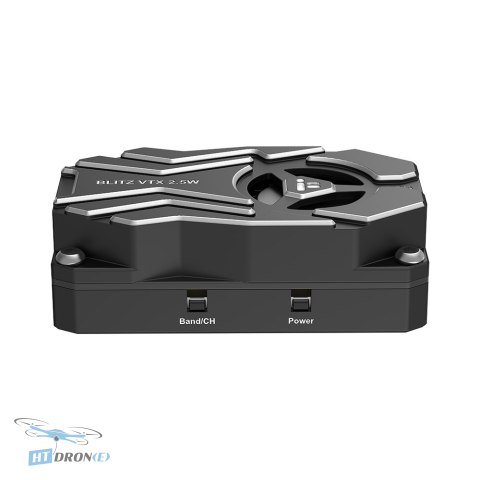

• Button Control: Yes (Power, Band/Channel)
• Ports: VBAT, GND, 5V Out, IRC, Video In, Camera In, Camera Out

Applications

This VTX is ideal for a wide range of FPV applications, including high-performance FPV racing drones, freestyle quads, cinematic FPV setups, and any UAV requiring a robust and powerful video transmission system. Its high power output makes it suitable for long-range flights and scenarios where signal penetration is critical.

Compatibility

The iFlight BLITZ Whoop 5.8G 2.5W VTX features an MMCX video interface and supports IRC Tramp telemetry. It is compatible with Betaflight configurations using IRC Tramp VTX tables. The mounting pattern is 25.5x25.5 mm, common for "whoop" style or smaller FPV builds. It requires an input voltage between 7V and 34V (2S-8S LiPo). Ensure proper antenna installation before powering on. Note that power levels above 25mW may require specific licenses or approvals depending on your region.

FAQ

What is the maximum power output of the iFlight BLITZ Whoop 5.8G 2.5W VTX?

The iFlight BLITZ Whoop 5.8G 2.5W VTX offers four selectable power levels, with the maximum output being 2500mW. Please ensure you comply with local regulations and licensing requirements for higher power transmissions.

Does the iFlight BLITZ Whoop 5.8G 2.5W VTX have a microphone?

Yes, this VTX features a built-in microphone, allowing you to capture ambient audio for a more immersive FPV experience. It's a great feature for capturing the sounds of your flight.

What is the input voltage range for this VTX?

The iFlight BLITZ Whoop 5.8G 2.5W VTX supports a wide input voltage range from 7V to 34V, which corresponds to 2S to 8S LiPo batteries. Always double-check polarity before connecting.

How is the heat managed on the iFlight BLITZ Whoop 5.8G 2.5W VTX?

It features an advanced cooling system consisting of a CNC aluminum case combined with an integrated fan. This dual cooling mechanism ensures efficient heat dissipation, preventing overheating and maintaining stable performance.

Where can I buy the iFlight BLITZ Whoop 5.8G 2.5W VTX with fast delivery?

You can order the iFlight BLITZ Whoop 5.8G 2.5W VTX from HTDRONE, based in Poland. We offer fast shipping within Poland and reliable delivery to Ukraine via Nova Poshta, as well as worldwide shipping via DHL.
