IFlight BLITZ Whoop F7 AIO V1.1 Flight Controller for FPV Drones

Introduction

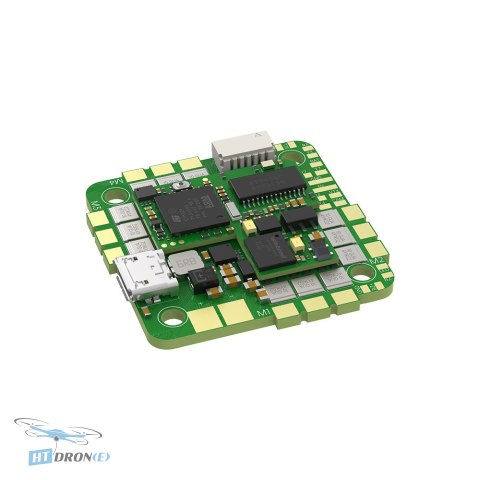

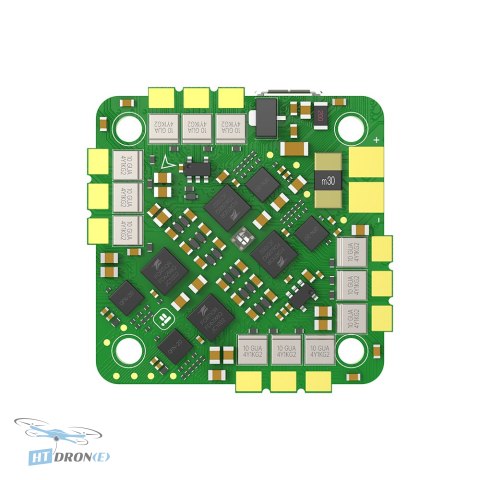

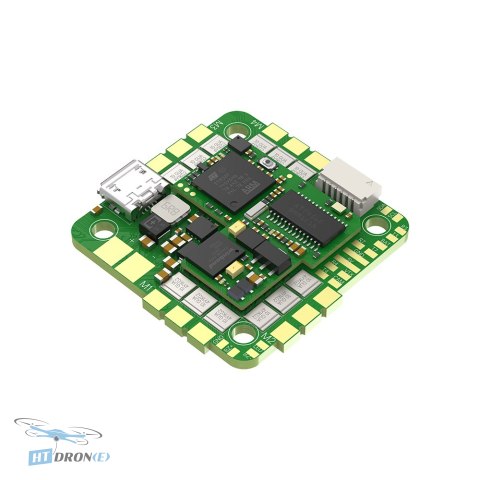

The iFlight BLITZ Whoop F7 AIO V1.1 is an advanced All-in-One (AIO) Flight Controller (FC) designed for the demanding FPV drone community. This integrated board combines essential flight control and power distribution components into a single, compact unit, simplifying your build and enhancing reliability. It's engineered to minimize electronic gyroscope noise and offers robust connectivity options, making it a top choice for pilots looking to build or upgrade their high-performance FPV racing or freestyle drones.

Key advantages

• Integrated Flight Controller and ESC board for a clean build.
• High-performance STM32F745 MCU and ICM42688 Gyro for precise flight control.
• Dedicated design to minimize electronic gyroscope noise for smoother performance.
• Direct connector support for DJI O3 and Caddx Vista digital FPV systems.
• 16MB onboard Flash Blackbox for flight data logging and tuning.
• Repairable design for extended product lifespan.
• Supports Smartaudio and IRC Tramp VTX protocols.
• Configurable WS2812 LED support and buzzer output.

Technical specifications

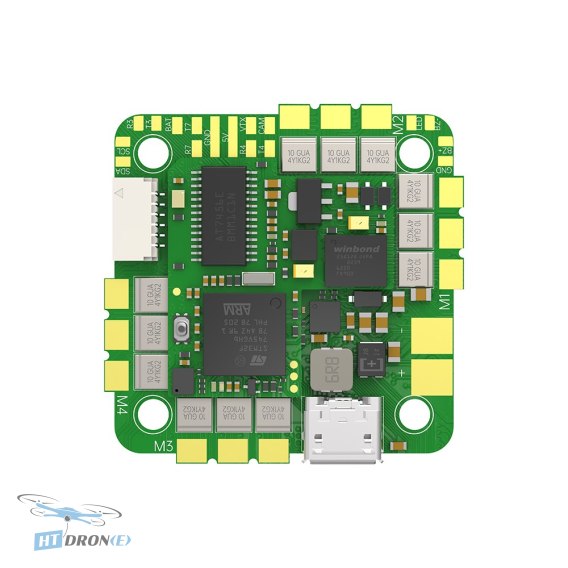

• FC MCU: BGA-STM32F745
• Gyro: ICM42688
• Blackbox: 16 MB onboard Flash memory
• BEC Output: 5V 2.5A
• WS2812 LED Tape: Yes
• Buzzer: Yes
• Barometer: DPS310
• Connector: Micro-USB
• OSD: IFLIGHT OSD (AT745E)
• FC Firmware: IFLIGHT_BLITZ_F7_AIO

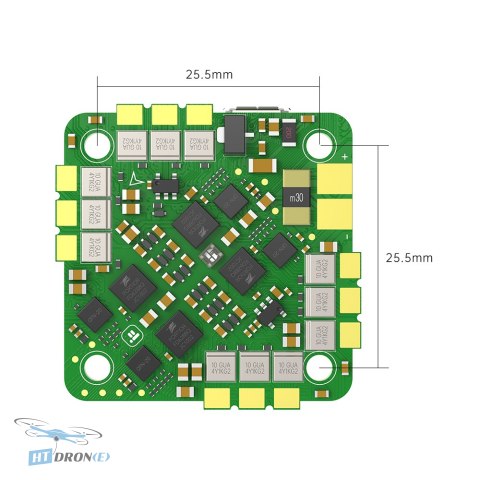

• Mounting Pattern: 25.5 * 25.5 mm φ3 mm
• FC Dimensions: 35*35mm
• FC Weight: 10.5g
• ESC BEC: 5V 2A / 3A
• Input Voltage: 2-6S LIHV Battery
• VTX Protocol Support: Smartaudio / IRC Tramp
• ESC MCU: BB21
• ESC Driver: FD6288
• Input Voltage (ESC): 2-6S LIHV Battery
• Continuous Output Current: 55A
• Peak Output Current: 65A (10 seconds)
• ESC Firmware: Q-H-40 - Bluejay, 0.16, 24kHz
• Current Sensor: Ratio 200 (1/10mV/A)
• ESC BEC: NO
• ESC Telemetry: NO
• Bidirectional DShot: Yes (requires Bluejay firmware)
• DShot Support: DShot150/300/600/MultiShot/OneShot

Applications

This versatile AIO Flight Controller is perfect for building and upgrading FPV racing drones, freestyle quads, and cinematic FPV setups. Its robust features and digital FPV system compatibility make it suitable for high-speed aerial maneuvers, detailed aerial photography, and demanding FPV racing competitions.

Compatibility

The iFlight BLITZ Whoop F7 AIO V1.1 supports 2-6S LIHV batteries, ensuring compatibility with a wide range of power systems. It features direct connectors for DJI O3 and Caddx Vista digital FPV transmitters. The FC firmware is IFLIGHT_BLITZ_F7_AIO, and the ESC firmware supports Bluejay for bidirectional DShot. Mounting is designed for 25.5x25.5mm patterns with M2 screws.

FAQ

What is the iFlight BLITZ Whoop F7 AIO V1.1 Flight Controller best suited for?

The iFlight BLITZ Whoop F7 AIO V1.1 is ideal for building or upgrading high-performance FPV drones, including racing quads and freestyle setups. Its advanced features and digital FPV system compatibility make it perfect for pilots seeking precision and reliability.

What digital FPV systems are compatible with this AIO FC?

This flight controller features direct connectors for both the DJI O3 Air Unit and the Caddx Vista digital FPV systems, allowing for seamless integration into your digital FPV build.

What is the maximum input voltage for the iFlight BLITZ F7 AIO V1.1?

The flight controller and ESC are designed to handle input voltages from 2-6S LIHV batteries, providing flexibility for various power configurations in your drone build.

Does the iFlight BLITZ F7 AIO V1.1 include a Blackbox for flight data logging?

Yes, it comes with 16MB of onboard Flash memory, serving as a Blackbox to record flight data. This is crucial for analyzing performance and tuning your drone for optimal flight characteristics.
