IFlight Borg 5S RX FPV Drone Flight Controller with ELRS 2.4GHz Receiver

Introduction

The iFlight Borg 5S RX Flight Controller is a cutting-edge solution engineered for demanding FPV racing applications. It integrates advanced features to ensure peak performance, reliability, and ease of use for professional drone pilots. This flight controller is built to handle the rigors of competitive FPV flying, offering a stable platform for your custom builds.

Key Advantages

• Integrated ELRS 2.4GHz receiver for enhanced signal stability and range.
• Supports a wide voltage input range of 4S-8S LiPo, including LiHV batteries.
• Powerful 12V BEC with VTX remote switching capability for efficient power delivery.
• High-performance AT32F435RGT7 MCU and ICM42688 Gyro for precise flight control.
• 16MB onboard Blackbox for flight logging and analysis.
• Multiple UART ports (4) and motor outputs (4) for flexible configuration.
• Compatible with various VTX control protocols including DJI MSP, Smartaudio, and IRCTramp.
• Compact and lightweight design (6.8g) with a 20x20mm mounting pattern, ideal for tight builds.

Technical Specifications

• Input Voltage: 4-8S LiPo; LiHV supported
• MCU: AT32F435RGT7
• Gyro: ICM42688
• Barometer: None
• OSD Chip: AT7456E
• Flash Memory: 16 MB (Blackbox)
• UART Ports: 4
• Motor Outputs: 4
• I2C: Not supported
• VTX Mode: Supports DJI MSP/Smartaudio/IRCTramp/HDZero
• LED Controller: Yes
• Buzzer Pad: Yes
• Target Firmware: IFLIGHT_BLITZ_ATF435 (Betaflight)

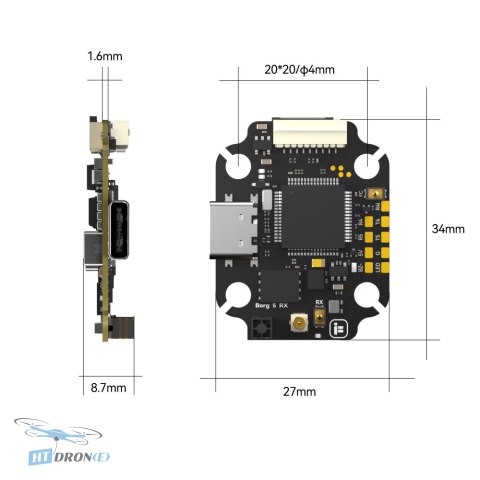

• Mounting Pattern: 20x20mm φ4
• Dimensions: 34x27 mm ±1
• Weight: 6.8 g ±1
• BEC: 5V 2.5A, 12V 2A (12V with VTX switch)

Applications

This flight controller is primarily designed for FPV racing drones, freestyle quads, and high-performance UAVs. Its robust features make it suitable for competitive pilots and enthusiasts who demand precision, speed, and reliability in their aerial systems.

Compatibility

The iFlight Borg 5S RX is compatible with 4S-8S LiPo batteries and supports a wide range of VTX control protocols. It features standard 20x20mm mounting, making it compatible with most FPV drone frames. The integrated ELRS receiver ensures compatibility with ELRS transmitters.

FAQ

What is the iFlight Borg 5S RX Flight Controller best suited for?

The iFlight Borg 5S RX is specifically designed for FPV racing and high-performance freestyle drones. Its robust features and integrated ELRS receiver make it ideal for pilots seeking reliable signal and precise flight control in competitive environments.

What battery voltages does the iFlight Borg 5S RX support?

This flight controller supports a wide input voltage range from 4S to 8S LiPo batteries, including LiHV (High Voltage Lithium Polymer) cells, offering great flexibility for various drone builds.

Does the iFlight Borg 5S RX have a built-in receiver?

Yes, the iFlight Borg 5S RX features an integrated ELRS 2.4GHz receiver, providing a reliable and high-performance radio link essential for FPV racing.

What are the mounting dimensions for the iFlight Borg 5S RX?

The iFlight Borg 5S RX has a standard 20x20mm mounting pattern with M4 screw holes, making it compatible with a wide range of FPV drone frames.

Where can I buy the iFlight Borg 5S RX with fast delivery?

You can buy the iFlight Borg 5S RX directly from HTDRONE, our specialized FPV drone parts store. We offer fast shipping within Poland and reliable international delivery via DHL for global customers.
