IFlight Borg 5S RX Stack with 60RS ESC - High-Performance FPV Racing Flight Controller & Power System

Introduction

The iFlight Borg 5S RX Stack is a high-performance, all-in-one racing flight control system engineered for maximum precision and efficiency in FPV drones. This integrated solution combines a flight controller with an ExpressLRS 2.4GHz receiver and a robust 60RS ESC, making it an ideal choice for professional pilots seeking a lightweight yet powerful setup. It's designed to deliver a smooth and responsive flight experience, crucial for competitive FPV racing.

Key advantages

• Integrated ExpressLRS 2.4GHz receiver with antenna for reliable, low-latency signal
• Supports 4-8S LiPo batteries, including LiHV, for versatile power options
• Powerful 60A continuous current ESC (Borg 60RS) for stable power delivery
• Flexible UART configuration and support for major VTX protocols (DJI MSP, Smartaudio, IRC Tramp, HDZero)
• Onboard 16MB Blackbox flash for flight data logging
• Compact and lightweight design (FC: 6.8g, ESC: 9.5g) for optimized drone builds
• Equipped with 5V 2.5A and 12V 2A (switchable VTX) BEC for powering peripherals
• Durable construction with 20x20mm mounting pattern for easy integration

Technical specifications

• FC Name: Borg 5S RX Stack
• Input Voltage: 4-8S LiPo (LiHV support)
• MCU: AT32F435RGT7
• Gyroscope: ICM42688
• Barometer: None
• OSD Chip: AT7456E
• Flash: 16MB (Blackbox)
• UART: 4
• Motor Outputs: 4
• I2C: Not supported
• VTX Protocols: DJI MSP / Smartaudio / IRCTramp / HDZero
• LED Control: Yes
• Buzzer Pad: Yes
• Betaflight Firmware: IFLIGHT_BLITZ_ATF435
• Mounting Pattern: 20x20mm φ4

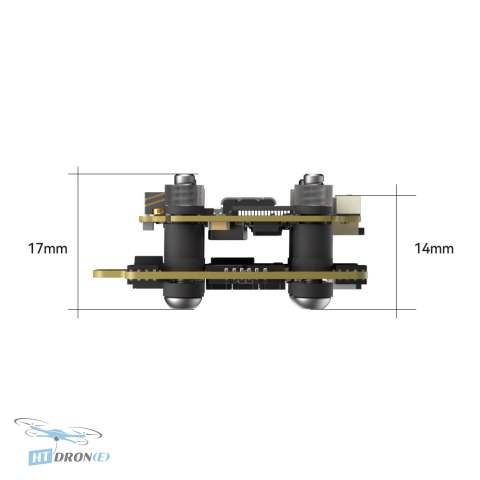

• Dimensions: 34x28.5 mm ±1 mm
• Weight: 6.8 g ±1 g
• BEC: 5V 2.5A, 12V 2A (12V switchable VTX)
• ESC Name: Borg 60RS
• Input Voltage: 4-8S LiPo (LiHV support)
• Max Continuous Current: 60A
• Max Burst Current: 65A (10s)
• MCU: STM32G071N
• Driver: FD6288
• Firmware: BL32 (32-bit)
• Target Firmware: IFLIGHT_BLITZ_G3 32.9
• Current Sensor: None
• BEC: None
• Telemetry: Yes
• Bidirectional DShot: Yes
• Dimensions: 45x35 mm ±1 mm
• Mounting Holes: 20x20 mm φ4
• Weight: 9.5 g ±1 g
• Protocols: DShot150/300/600, MultiShot, OneShot, etc.

Applications

This stack is ideal for professional FPV racing drones, high-performance freestyle builds, and any UAV application requiring precise flight control and robust power management. It's suited for pilots who demand low latency and reliable signal transmission for competitive flying.

Compatibility

Compatible with 4-8S LiPo batteries, including LiHV. Features multiple UART ports for various peripherals and supports major VTX protocols including DJI, Smartaudio, IRC Tramp, and HDZero. The 20x20mm mounting pattern ensures compatibility with a wide range of FPV drone frames.

FAQ

What is the iFlight Borg 5S RX Stack with 60RS ESC?

The iFlight Borg 5S RX Stack is a high-performance, all-in-one FPV flight controller and ESC combo designed for racing drones. It features an integrated ExpressLRS 2.4GHz receiver and a 60A ESC, supporting 4-8S LiPo batteries for demanding aerial performance.

What are the main advantages of using the iFlight Borg 5S RX Stack?

Key advantages include its integrated ExpressLRS receiver for low-latency control, robust 60A ESC for reliable power, support for high voltage LiPo batteries (4-8S), and flexible VTX protocol compatibility, making it a top choice for competitive FPV pilots.

What is the mounting size for the iFlight Borg 5S RX Stack?

The iFlight Borg 5S RX Stack features a standard 20x20mm mounting pattern with M4 mounting holes, ensuring compatibility with most FPV racing and freestyle drone frames.

What type of FPV applications is this stack best suited for?

This stack is ideally suited for professional FPV racing, high-speed freestyle flying, and other demanding UAV applications where precise control, low latency, and reliable power delivery are critical.
