IFlight Borg 5S RX Stack with ExpressLRS 2.4GHz ELRS & Borg 60R ESC for FPV Racing

Introduction

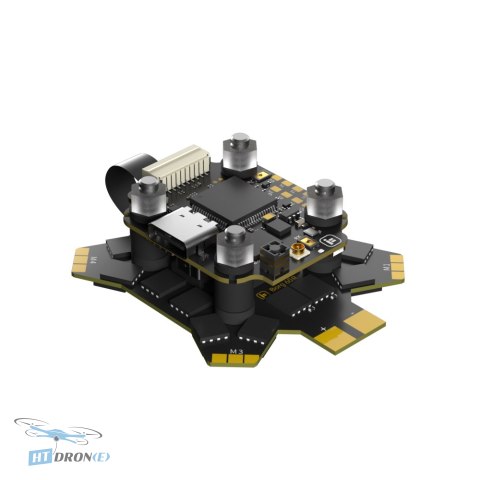

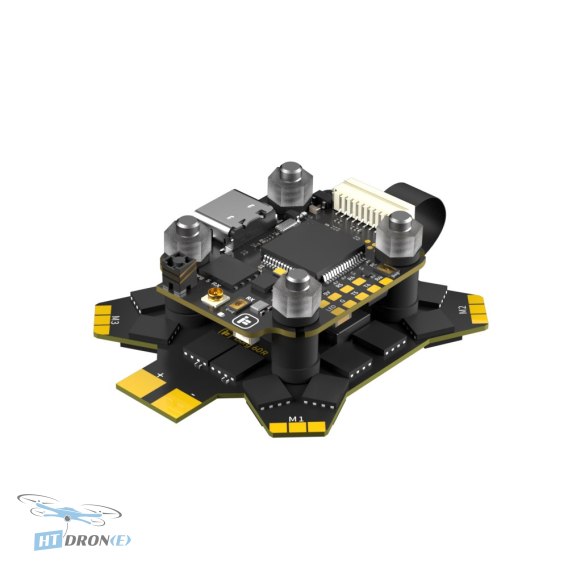

The iFlight Borg 5S RX Stack is a high-performance, all-in-one FPV system designed for serious pilots. It combines a robust Flight Controller (FC) with an integrated ExpressLRS 2.4 GHz receiver and a powerful 60A ESC, offering a streamlined and reliable solution for demanding FPV applications, especially racing. This stack is engineered to deliver exceptional performance, low latency, and robust signal integrity, making it a top choice for competitive FPV pilots.

Key Advantages

• Integrated ExpressLRS 2.4 GHz Receiver: Ensures ultra-reliable, low-latency signal transmission.
• Powerful Borg 60R ESC: Provides up to 60A continuous current for high-power setups.
• Wide Input Voltage Support: Compatible with 4-8S LiHV batteries for versatile power options.
• High-Performance Components: Features AT32F435 MCU and ICM42688 Gyro for smooth flight control.
• Optimized for Racing: Designed for minimal interference and maximum performance in competitive FPV scenarios.
• Versatile Connectivity: Supports DJI MSP, Smartaudio, and HDZero for seamless FPV system integration.
• Durable Construction: Built with quality components for reliability under demanding conditions.
• Compact and Lightweight: Designed for 20x20mm mounting, ideal for modern FPV builds.

Technical Specifications

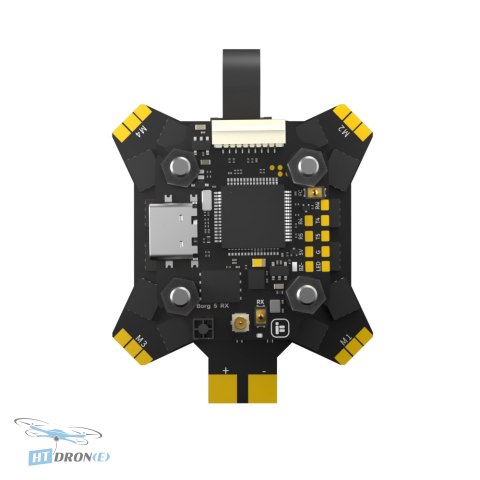

• FC Specification:
• Input Voltage: 4-8S LiHV
• MCU: AT32F435RGT7
• Gyroscope: ICM42688
• Barometer: None
• OSD Chip: AT7456E
• Flash: 16 MB (Blackbox)
• UARTs: 4
• Motor Outputs: 4
• I2C: Not Supported
• VTX Protocols: DJI MSP / Smartaudio / IRCTramp / HDZero
• LED Control: Yes
• Buzzer Pad: Yes
• Firmware (Betaflight): IFLIGHT_BLITZ_ATF435

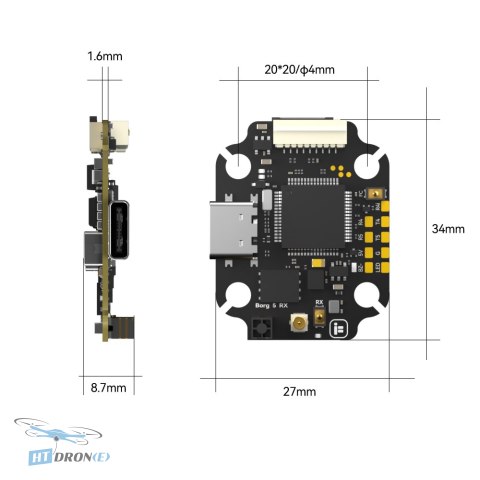

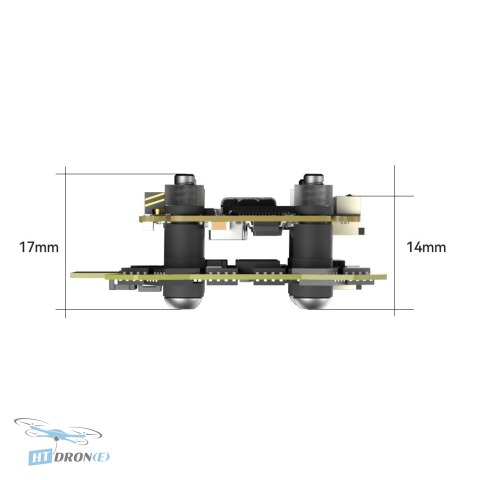

• Mounting Pattern: 20x20mm φ4
• Dimensions: 34x27 mm ±1 mm
• Weight: 6.8 g ±1 g
• BEC: 5V 2.5A, 12V 2A (12V with VTX switch)

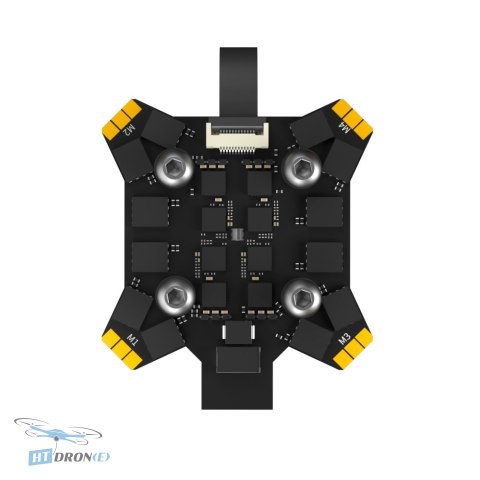

• ESC Specification:
• Product Name: ESC Borg 60R
• Input Voltage: 3-8S LiHV
• Max Continuous Current: 60A
• Max Burst Current: 65A (10s)
• MCU: STM32G071N
• Driver: FD6288
• Firmware: BL32 (32-bit)
• Target Firmware: IFLIGHT_BLITZ_G3 32.9
• Current Sensor: None
• BEC: None
• Telemetry: Yes
• Bidirectional DShot: Yes
• Dimensions: 45x52 mm ±1 mm
• Mounting Holes: 20x20mm φ4
• Weight: 14.5 g ±1 g
• Protocols: DShot150/300/600, MultiShot, OneShot etc.

Applications

This FPV stack is ideal for building high-performance FPV racing drones, freestyle quads, and competitive drone sports. Its robust features and integrated receiver make it suitable for pilots seeking reliability and cutting-edge performance.

Compatibility

The iFlight Borg 5S RX Stack is compatible with 4-8S LiHV batteries. It supports various VTX protocols including DJI MSP, Smartaudio, and HDZero. The 20x20mm mounting pattern ensures compatibility with most modern FPV frames.

FAQ

What is the iFlight Borg 5S RX Stack?

The iFlight Borg 5S RX Stack is an integrated FPV system featuring a flight controller with a built-in ExpressLRS 2.4 GHz receiver and a 60A ESC. It's designed for high-performance FPV drones, particularly for racing.

What voltage range does the iFlight Borg 5S RX Stack support?

The flight controller supports input voltages from 4-8S LiHV batteries, while the ESC also supports 3-8S LiHV batteries, offering flexibility for various power setups.

What are the key advantages of the integrated ExpressLRS receiver?

The integrated ExpressLRS 2.4 GHz receiver provides an ultra-reliable, low-latency signal connection, crucial for competitive FPV racing and ensuring stable control.

What is the maximum continuous current the Borg 60R ESC can handle?

The Borg 60R ESC can handle a maximum continuous current of 60A and a burst current of up to 65A for 10 seconds, making it suitable for powerful motor setups.

Where can I buy the iFlight Borg 5S RX Stack with fast delivery?

You can buy the iFlight Borg 5S RX Stack at HTDRONE. We offer fast shipping within Poland and worldwide delivery via DHL, ensuring you get your FPV components quickly.
