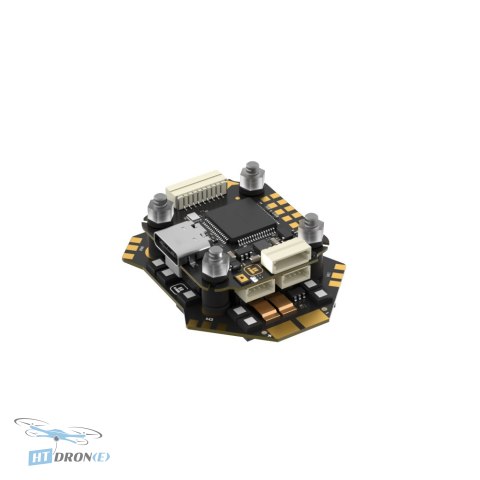

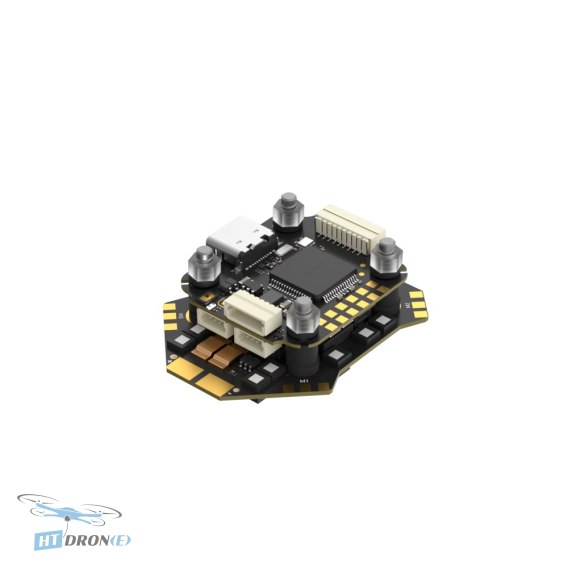

IFlight Borg F7 Mini Stack with Borg 60 Mini ESC for FPV Racing Drones

Introduction

The iFlight Borg F7 Mini Stack is engineered for FPV racing enthusiasts who demand top-tier performance and a compact design. This integrated system combines the advanced Borg F7 Mini Flight Controller with the high-performance Borg Mini 60A ESC, offering a powerful and reliable solution for building competitive FPV drones. It's the perfect choice for pilots looking to maximize speed, agility, and control on the race track.

Key Advantages

• High-performance F7 flight controller for precise control.
• Powerful 60A ESC capable of handling demanding FPV racing conditions.
• Supports 4-8S LiHV battery input for extended flight times and power.
• Integrated BEC with 5V/12V output and switchable VTX power.
• Multiple UART ports for comprehensive peripheral connectivity.
• Durable, compact design optimized for racing drone builds.
• Compatible with DJI MSP, Smartaudio, IRCTramp, and HDZero VTX protocols.
• Features 32MB Blackbox flash memory for flight data logging.

Technical Specifications

• FC Specifications:
• Input Voltage: 4-8S LiHV
• MCU: STM32F722RET6
• Gyroscope: ICM42688
• Barometer: SPA06-003
• OSD Chip: AT7456E (LGA)
• Flash Memory: 32 MB (Blackbox)
• UARTs: 6
• Motor Outputs: 4
• I2C: Not Supported
• VTX Protocols: DJI MSP / Smartaudio / IRCTramp / HDZero
• LED Control: Supported
• Buzzer Pad: Supported
• Betaflight Firmware: IFLIGHT_BLITZ_F722
• INAV Firmware: IFLIGHT_BLITZ_F722
• Mounting Pattern: 20x20mm φ4

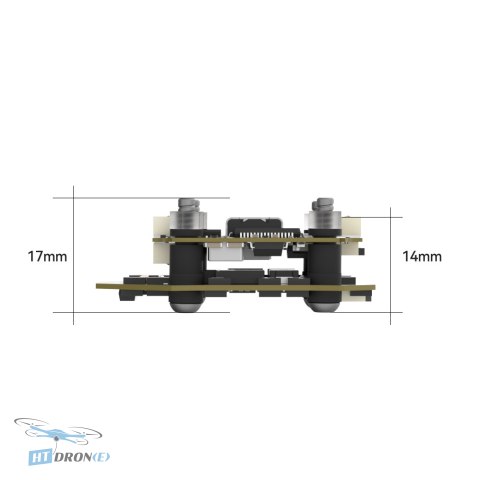

• Dimensions: 27x30.6mm ±1mm
• Weight: 6.8g ±1g
• BEC: 5V 2.5A, 12V 2A (12V with switchable VTX power)
• ESC Specifications:
• Product Name: Borg Mini 60 ESC
• Input Voltage: 2-6S LiHV
• Continuous Current: 60A
• Burst Current: 65A (10s)
• MCU: STM32G071N
• Driver: FD6288
• Firmware: BL32 (32-bit)
• Target Firmware: IFLIGHT_BLITZ_G3 32.9
• Current Sensor: Supported
• BEC: None
• Telemetry: Supported
• Bi-directional DShot: Supported
• Dimensions: 42x35mm ±1mm
• Mounting Holes: 20x20mm φ4
• Weight: 9.8g ±1g
• Protocols: DShot150/300/600, MultiShot, OneShot, etc.

Applications

This stack is primarily designed for high-speed FPV racing drones. Its robust performance and compact size also make it suitable for freestyle FPV builds and competitive drone sports where reliability and responsiveness are crucial.

Compatibility

The iFlight Borg F7 Mini Stack is compatible with a wide range of FPV systems, including DJI digital systems, Smartaudio, IRCTramp, and HDZero VTX protocols. It supports 4-8S LiHV batteries for the FC and 2-6S for the ESC. The mounting pattern is standard 20x20mm, fitting most FPV racing frames.

FAQ

What is the iFlight Borg F7 Mini Stack designed for?

The iFlight Borg F7 Mini Stack is specifically engineered for FPV racing drones, offering high performance, reliability, and a compact design crucial for competitive flight.

What is the maximum battery voltage supported by this FPV stack?

The Borg F7 Mini Flight Controller supports an input voltage of 4-8S LiHV batteries, while the Borg Mini 60 ESC supports 2-6S LiHV batteries. This provides flexibility for powerful builds.

Does the iFlight Borg F7 Mini Stack include a BEC?

Yes, the Borg F7 Mini Flight Controller features an integrated BEC providing 5V at 2.5A and 12V at 2A, with the 12V output being switchable for VTX power.

What VTX protocols are compatible with the Borg F7 Mini FC?

The Borg F7 Mini Flight Controller is compatible with DJI MSP, Smartaudio, IRCTramp, and HDZero VTX protocols, offering broad integration options.

Where can I buy the iFlight Borg F7 Mini Stack with fast delivery?

You can buy the iFlight Borg F7 Mini Stack at HTDRONE. We offer fast shipping within Poland and reliable delivery to Ukraine via Nova Poshta, as well as worldwide shipping via DHL.
