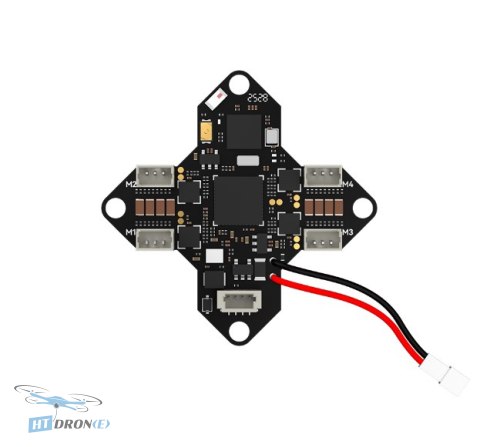

IFlight Borg G4 1S AIO FC with ELRS 2.4GHz Receiver for 65-75mm FPV Drones

Introduction

The iFlight Borg G4 1S AIO FC represents a cutting-edge flight control solution specifically engineered for the demanding world of 65-75mm FPV Whoop drones. It integrates a high-performance flight controller, Electronic Speed Controller (ESC), and a 2.4GHz ELRS receiver right out of the box, simplifying builds and maximizing performance for micro FPV enthusiasts. This all-in-one design redefines efficiency and capability for small-scale FPV flying.

Key advantages

• Superior Integrated Design: A compact, all-in-one unit combining Flight Controller, ESC, and ELRS 2.4G receiver, optimized for 65-75mm drones. Reduces size, streamlines construction, and minimizes setup complexity.
• Significant Performance Boost: Powered by the STM32G473 chip, offering 55% more processing power than STM32F411, ensuring smoother flights, quicker response times, and precise control.
• Intelligent Versatility: Supports switching between onboard and external receivers, accommodating both analog and HD video transmission systems to suit diverse pilot preferences and configurations.
• High-Quality Components: Features an ICM42688 Gyroscope for accurate flight stabilization and an AT7456E OSD chip for clear on-screen display.
• Ample Memory: Includes 16MB of Blackbox flash memory for flight data logging, crucial for tuning and analysis.
• Robust ESC: Equipped with a 12A continuous current ESC capable of handling demanding maneuvers with support for bidirectional DSHOT.
• Flexible Voltage Input: Designed for 1S LIHV batteries, providing efficient power for micro FPV builds.
• Ready for Advanced Systems: Compatible with DJI MSP/Smartaudio/IRCTramp/HDZero VTX protocols.

Technical specifications

• FC Specifications:
• Input Voltage: 1S; LIHV battery support
• MCU: STM32G473
• Gyroscope: ICM42688
• Barometer: Not applicable
• OSD Chip: AT7456E
• Flash Memory: 16MB (Blackbox flash memory)
• UARTs: 4
• Motor Outputs: 4
• Serial I2C: Not supported
• VTX Protocol: Supports DJI MSP/Smartaudio/IRCTramp/HDZero
• LED Controller: Yes
• Buzzer: Not applicable
• FC Firmware: IFLIGHT_BORG_G4_AIO (Betaflight)
• Receiver Firmware: iFlight 2.4GHz RX (3.3.0)
• Mounting Pattern: 25.5 x 25.5mm φ3
• Dimensions: 30 x 30mm ±1
• Weight: 4g ±0.5g
• BEC: 5V 3A
• ESC Specifications:
• Input Voltage: 1S; LIHV battery support
• Continuous Current: 12A
• MCU: EFM8BB51F16
• Driver: N/A
• Target: C-X-5 - Bluejay, 0.19, 96 kHz
• Amperage: 480 (1/10 mV/A)
• BEC: N/A
• Telemetry: Not supported
• Bidirectional DSHOT: Supported
• Protocol: Supports DShot150/300/600, MultiShot, OneShot etc.

Applications

This AIO Flight Controller is ideal for building and upgrading 65mm to 75mm FPV Whoop drones. It's perfect for indoor flying, freestyle FPV, micro drone racing, and creating compact, high-performance aerial platforms. Its integrated ELRS receiver makes it a plug-and-play solution for many setups.

Compatibility

The iFlight Borg G4 1S AIO FC is designed for 1S LIHV batteries. It features a 25.5 x 25.5mm mounting pattern with M3 holes and supports various VTX protocols including DJI MSP, Smartaudio, IRCTramp, and HDZero. It is compatible with Betaflight firmware and the iFlight 2.4GHz ELRS receiver firmware.

FAQ

What is the iFlight Borg G4 1S AIO FC and who is it for?

The iFlight Borg G4 1S AIO FC is an all-in-one flight controller designed for 65-75mm FPV Whoop drones. It integrates a flight controller, ESC, and an ELRS 2.4GHz receiver, making it ideal for pilots building or upgrading small, high-performance FPV aircraft.

What are the main advantages of the Borg G4 1S AIO?

Key advantages include its compact integrated design, a powerful STM32G473 MCU for enhanced performance, built-in ELRS 2.4GHz receiver for easy setup, and support for various VTX protocols and HD systems. It offers a significant performance boost for micro FPV drones.

What technical specifications should I know about the iFlight Borg G4 1S AIO FC?

It features an STM32G473 MCU, ICM42688 Gyro, 16MB Blackbox flash, 4 UARTs, and a 5V 3A BEC. The ESC supports 12A continuous current and bidirectional DSHOT. It's designed for 1S LIHV batteries and has a 25.5x25.5mm mounting pattern.

What FPV systems and protocols are compatible with the Borg G4 1S AIO?

The FC firmware is Betaflight (IFLIGHT_BORG_G4_AIO). It supports VTX protocols like DJI MSP, Smartaudio, IRCTramp, and HDZero. The integrated receiver is iFlight's 2.4GHz ELRS.

Where can I buy the iFlight Borg G4 1S AIO FC with fast delivery?

You can buy the iFlight Borg G4 1S AIO FC at HTDRONE, our specialized FPV drone parts store based in Poland. We offer fast shipping within Poland and reliable worldwide delivery via DHL.
