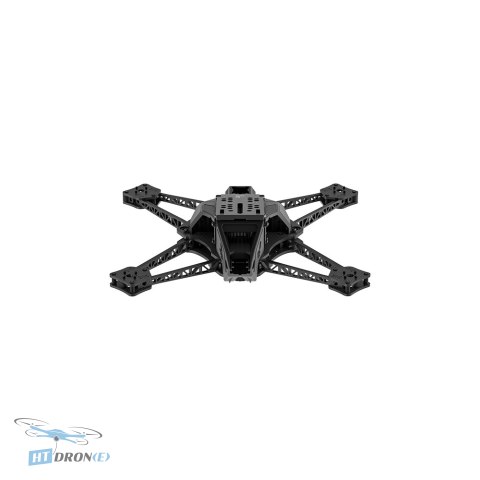

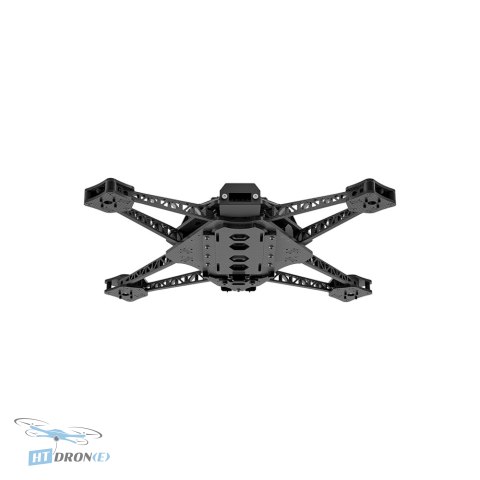

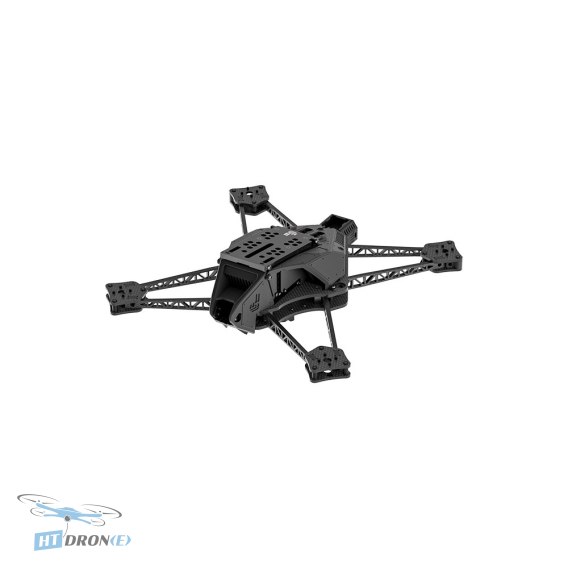

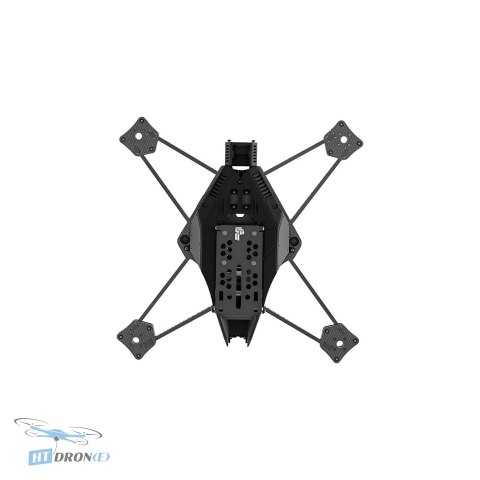

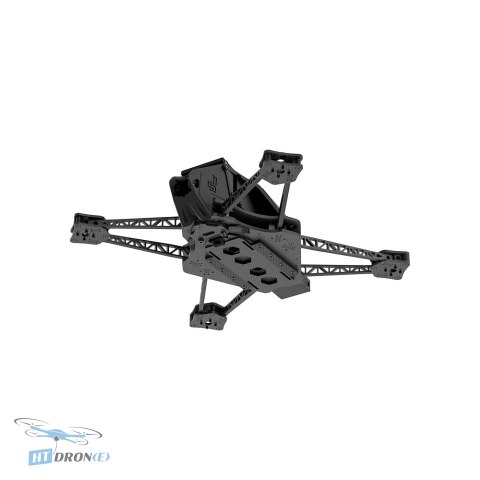

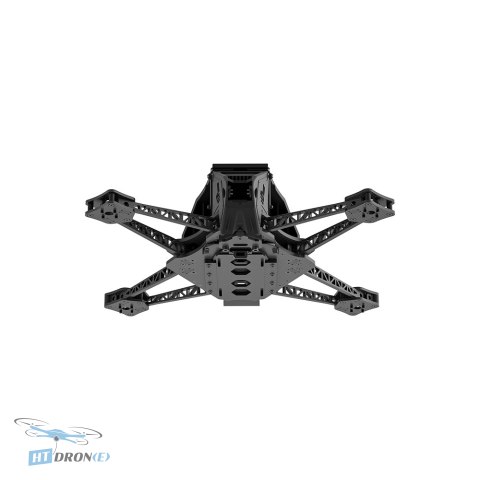

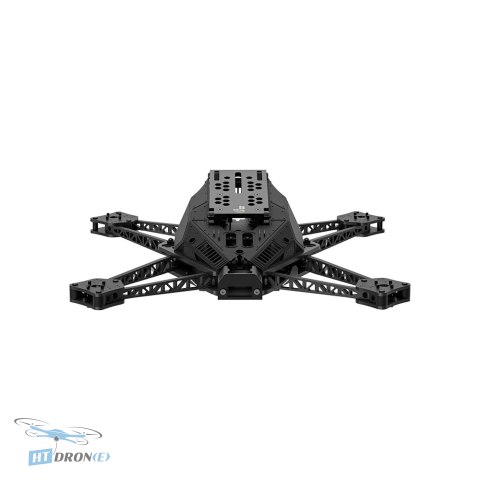

IFlight Centurion X8 Cinelifter FPV Drone Frame - 384mm Wheelbase, Advanced Truss Arms

Introduction

The IFlight Centurion X8 Cinelifter Frame is a meticulously engineered solution for professional FPV pilots and cinematographers. Developed in partnership with 2RAW Aerials, this frame is designed to provide unparalleled performance and stability for cinematic drone applications. Its unique A-frame and truss arm construction ensures exceptional rigidity while optimizing weight, making it one of the most efficient cinelifter platforms available on the market. Trust the Centurion X8 for your demanding aerial filming projects.

Key advantages

• Exceptional rigidity and efficient weight management via A-frame and truss arm design.
• Unique AeroShell for optimized airflow, internal cooling, and protection against dirt.
• Innovative, adjustable camera mount (10-50 degrees) made from aerospace-grade aluminum.
• Raised camera mount eliminates propellers from cinematic footage.
• Support for camera mount along both horizontal and vertical axes to mitigate payload resonances.
• Fast-release battery system for quick swaps and increased productivity.
• Designed for high-performance cinematic FPV builds.
• Trusted by top pilots worldwide for professional results.

Technical specifications

• Product Name: Centurion 8 HD Cinelifter Frame
• Geometry: Squashed-X
• Wheelbase: 384 mm
• Frame Dimension: L272*W272*H96 mm
• Arm Thickness: 5 mm
• Bottom Plate Thickness: 4mm
• Top Plate Thickness: 4 mm
• Max Stack Height: 18 mm
• Max VTX Height: 35 mm
• Flight Controller Mount: 30.5*30.5 / Φ3mm
• VTX Mount: 25.5 * 25.5 / Φ2 mm
• Motor Mount: 19 * 19 / Φ3mm
• Weight: 969g
• Recommended Motor: 28xx motor

Applications

This frame is ideal for professional FPV cinematic filming, high-quality aerial videography, and advanced FPV drone builds requiring superior stability and performance. It's designed to carry larger payloads and capture smooth, professional-grade footage.

Compatibility

Supports 30.5*30.5mm and Φ3mm flight controllers, 25.5*25.5mm and Φ2mm VTXs, and 19*19mm / Φ3mm motors. Designed for 28xx size motors. Includes various battery straps and connectors (XT90E, XT30G) for flexible setup.

FAQ

What is the IFlight Centurion X8 Cinelifter Frame designed for?

The IFlight Centurion X8 Cinelifter Frame is specifically designed for professional FPV cinematic filming and advanced aerial videography. Its robust construction and unique features make it an ideal platform for capturing high-quality, stable footage in demanding environments.

What are the main advantages of the Centurion X8 frame's design?

Key advantages include its exceptional rigidity from the A-frame and truss arm construction, efficient weight management, and a unique AeroShell for optimized airflow and cooling. The adjustable camera mount and fast-release battery system further enhance its usability for professional applications.

What are the technical specifications of the IFlight Centurion X8 frame?

The Centurion X8 features a 384mm wheelbase, Squashed-X geometry, 5mm thick arms, and 4mm thick bottom and top plates. It supports a maximum stack height of 18mm and VTX height of 35mm, with specific mounting patterns for flight controllers, VTXs, and motors. The frame weighs 969g and is recommended for 28xx size motors.

Where can I buy the IFlight Centurion X8 Cinelifter Frame?

You can buy the IFlight Centurion X8 Cinelifter Frame at HTDRONE, a specialized FPV and UAV drone parts store based in Poland. We offer fast shipping within Poland and worldwide delivery via DHL for international orders. Check our store for the best deals.

What is the camera mounting system like on the Centurion X8?

The Centurion X8 features an innovative camera mount made from aerospace-grade aluminum. It offers adjustable angles from 10 to 50 degrees, is raised to keep propellers out of the shot, and is supported both horizontally and vertically to mitigate payload resonances, providing increasing support as the camera angle increases.
