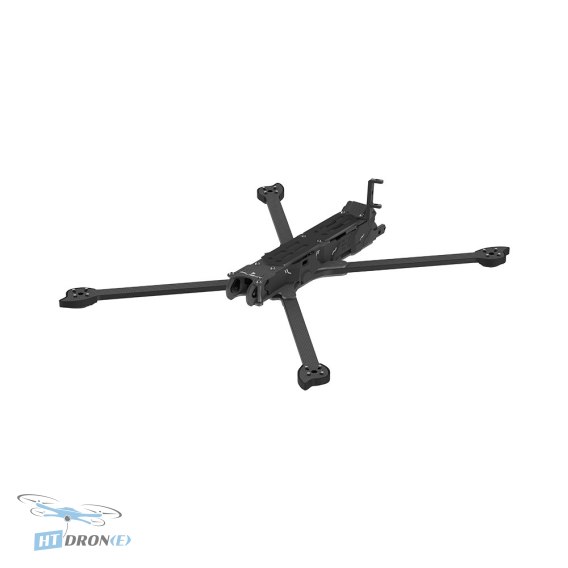

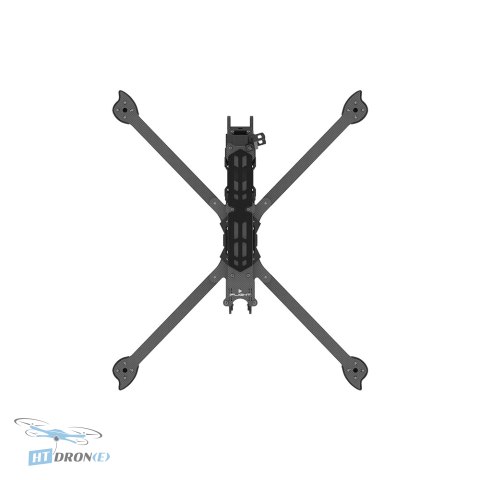

IFlight Chimera CX10 10-inch FPV Drone Frame Kit | Long-Range UAV Build

Introduction

The iFlight Chimera CX10 is a high-performance 10-inch FPV drone frame kit designed for pilots seeking a stable and versatile platform for long-range flights, aerial photography, and advanced UAV applications. This frame provides a solid foundation for building powerful drones capable of carrying larger batteries and payloads, ensuring extended flight times and superior performance in various conditions. Elevate your FPV experience with this premium frame from iFlight.

Key Advantages

• Robust 10-inch Design: Optimized for 10-inch propellers, offering enhanced flight stability and efficiency for long-range missions.
• Durable Construction: Features thick carbon fiber arms (6mm) and sturdy plates for maximum resilience against impacts.
• Versatile Mounting Options: Supports multiple mounting standards for flight stacks, VTXs, and motors, allowing for extensive customization.
• Ample Internal Space: Generous maximum stack height (21mm) and VTX height (30mm) accommodate various electronic components.
• Complete Kit: Includes all necessary hardware, TPU parts, battery straps, and anti-slip mat for a hassle-free build.
• Lightweight Yet Strong: Weighing only 383g, it balances durability with a manageable weight for optimal flight performance.
• Designed for FPV Enthusiasts: Perfect for building custom long-range, cinematic, or exploration drones.

Technical Specifications

• Product Name: CX10 ECO 10 inch Frame Kit
• Wheelbase: 452mm
• Frame Dimension: L338*W299*H34mm
• Arm Thickness: 6 mm
• Bottom Plate Thickness: 3mm
• Top Plate Thickness: 2mm
• Upper Plate Thickness: 3mm
• Max Stack Height: 21 mm
• Max VTX Height: 30 mm
• Flight Stack Mounting: 30.5*30.5mm φ3mm
• VTX Mounting: 20*20 Φ2 mm / 25.5*25.5 Φ1.6 mm / 30.5*30.5 Φ3 mm
• Motor Mounting: 16x16mm/19x19mm Φ3mm
• Weight: 383g

Applications

The iFlight Chimera CX10 frame is ideal for a wide range of applications, including long-range FPV exploration, professional aerial photography and videography, cinematic FPV flights, and custom UAV projects requiring a stable, high-performance platform. It is well-suited for carrying FPV cameras, action cameras, and other payloads.

Compatibility

This frame supports flexible mounting for flight stacks (30.5x30.5mm), VTXs (20x20mm, 25.5x25.5mm, 30.5x30.5mm), and motors (16x16mm, 19x19mm). It accommodates a maximum stack height of 21mm and VTX height of 30mm, ensuring compatibility with a wide array of FPV components.

FAQ

What is the iFlight Chimera CX10 frame best suited for?

The iFlight Chimera CX10 frame is best suited for building long-range FPV drones, professional aerial photography platforms, and custom UAV projects that require a stable and robust 10-inch propeller setup.

What are the main technical specifications of the iFlight Chimera CX10 frame?

Key specifications include a 452mm wheelbase, 6mm thick arms, 3mm bottom plate, and support for 30.5x30.5mm flight stacks. It weighs approximately 383g.

Does the iFlight Chimera CX10 frame come with all necessary mounting hardware?

Yes, the package includes a screw bag, TPU parts, an anti-slip battery mat, battery straps, and AMASS MR30 connectors, making it a comprehensive kit for your build.

Where can I buy the iFlight Chimera CX10 frame with fast delivery?

You can buy the iFlight Chimera CX10 frame at HTDRONE. We offer fast shipping within Poland and reliable delivery to Ukraine via Nova Poshta, as well as worldwide shipping via DHL.

What motor and VTX mounting options are available on the Chimera CX10?

The frame supports motor mounting at 16x16mm/19x19mm and offers flexible VTX mounting options for 20x20mm, 25.5x25.5mm, and 30.5x30.5mm standards.
